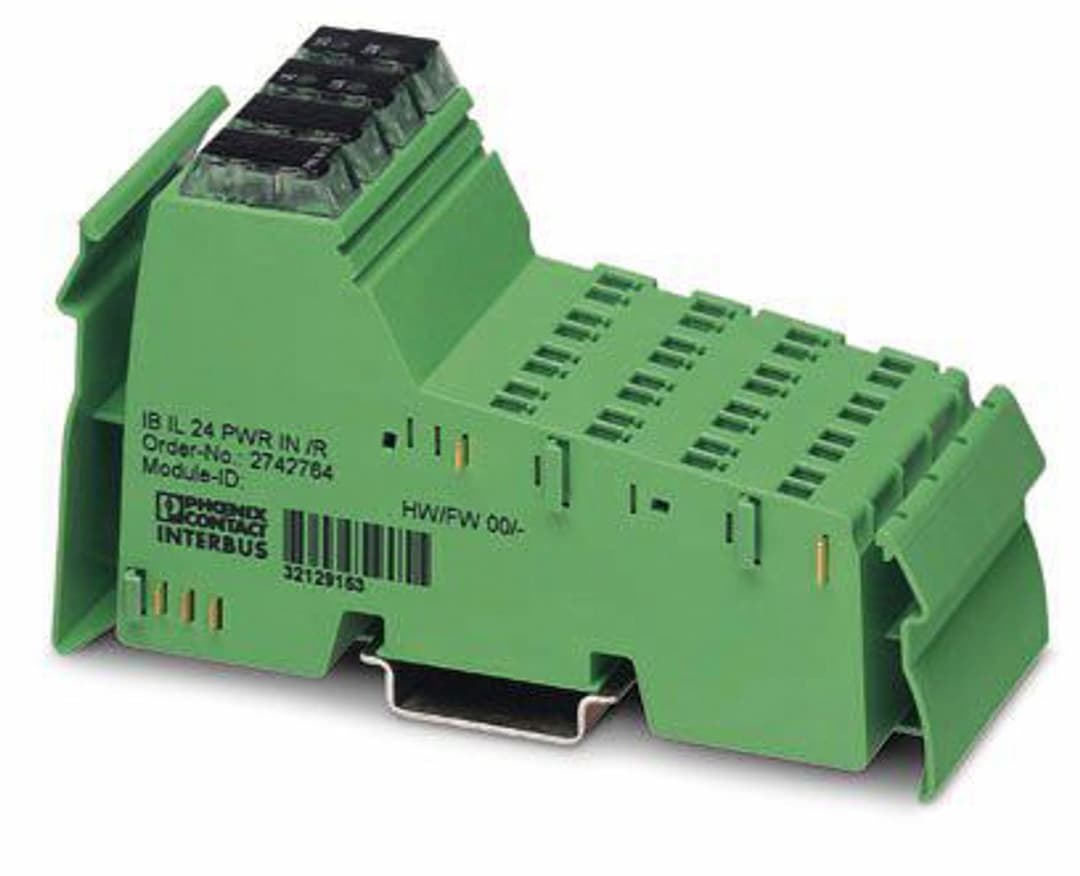

Product Model
IB IL 24 PWR IN/PS
Selling Points
- 1Reliable Power Supply: Provides 24V DC power with a maximum current of 8A (4A in potentially explosive areas).
- 2Surge Protection: Equipped with external fuse and input protective diodes for enhanced safety against electrical surges.
- 3Durable Design: Constructed with a robust spring-cage connection and solid/stranded conductor cross sections (0.08 mm² to 1.5 mm²).
- 4Versatile Mounting: Designed for DIN rail mounting, suitable for various industrial applications.
- 5Compliant with Standards: Meets EMC Class A standards and IEC 61140, EN 61140, VDE 0140-1 protection classes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular
Inline | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
ID code (dec.) | none | ID code (hex) | none |
Register length | 0 bit | Test section | 7.5 V communications power, 24 V analog supply, 24 V bus terminal module supply/functional ground 500 V AC 50 Hz 1 min
Communications power (U
24 V main supply, 24 V segment supply/functional ground 500 V AC 50 Hz 1 min |
I/O voltage range | 19.2 V ... 30 V | Residual ripple | ±5 % |
Max. current consumption | 1.25 A DC | Supply voltage | 7.5 V DC (via voltage jumper) |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Supply voltage | 24 V DC (via Inline connector) | Supply voltage range | 19.2 V ... 30 V DC (including all tolerances, including ripple) |
Supply voltage | 24 V DC (via Inline connector) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Width | 48.8 mm | Height | 119.8 mm |
Depth | 71.5 mm | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 55 °C | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) | Permissible humidity (storage/transport) | 75 % ... 85 % (Slight temporary condensation may sometimes appear on the housing, e.g. when the terminal block is brought out of a vehicle into an enclosed room.) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
