Product Model

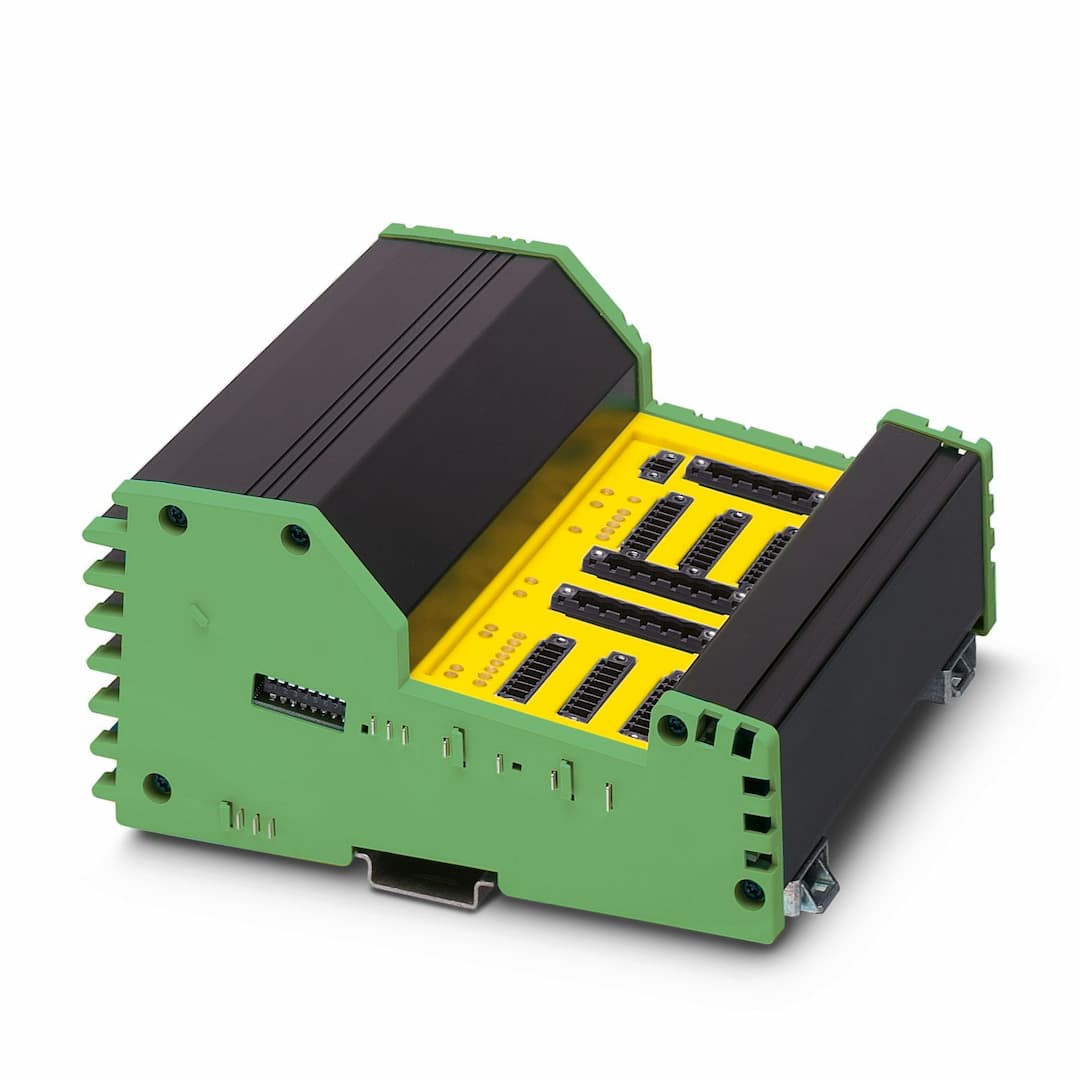

IB IL 24 SDIO 4/4/1
Selling Points
- 1Designed for industrial automation with robust construction and reliable performance.
- 2Provides ample connectivity for various industrial control systems.
- 3Operates on a standard 24 V DC power supply, ensuring compatibility with most industrial setups.
- 4Supports high current requirements, making it suitable for demanding applications.
- 5Easy installation on DIN rail, saving space and enhancing modularity in control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 183.5 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Color | yellow | Connection method | Inline data jumper |
ID code (dec.) | 175 | ID code (hex) | AF |
Input name | Digital inputs | Number of inputs | 8 |
Connection method | Spring-cage connection | Connection technology | 2-, 3-, 4-conductor |
Input voltage | 24 V DC (parameterizable; see technical data.) | Input voltage range "0" signal | -3 V DC ... 5 V DC |
Input voltage range "1" signal | 11 V DC ... 30 V DC | Typical response time | See technical data |
Output name | Digital outputs | Connection method | Spring-cage connection |
Connection technology | 2-, 3-, 4-conductor | Number of outputs | 8 |
Protective circuit | Overload protection, short-circuit protection of outputs | Output voltage | 24 V DC (U |
Maximum output current per group | 4 A | Maximum output current per channel | 1 A |
Maximum output current per module / terminal block | 4 A | Maximum output current per module | 4 A |
Nominal output voltage | 24 V DC | Nominal load, inductive | see safety data |
Nominal load, lamp | see safety data | Nominal load, ohmic | see safety data |
Behavior with inductive overload | Output can be destroyed | Product type | I/O component |
Product family | Inline | Type | modular |
Diagnostics messages | Short-circuit or overload of the digital outputs Error message in diagnostics code (bus) and display by means of the LED on the motor | Transmission medium | Copper |
Supply voltage | 7.5 V DC (see safety data) | Current draw | max. 230 mA (see safety data) |
Supply voltage | 24 V DC (see safety data) | Supply voltage | 24 V (see safety data) |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC |
Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 800 hPa ... 1060 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 66 hPa ... 108 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
Permissible humidity (storage/transport) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
