Product Model

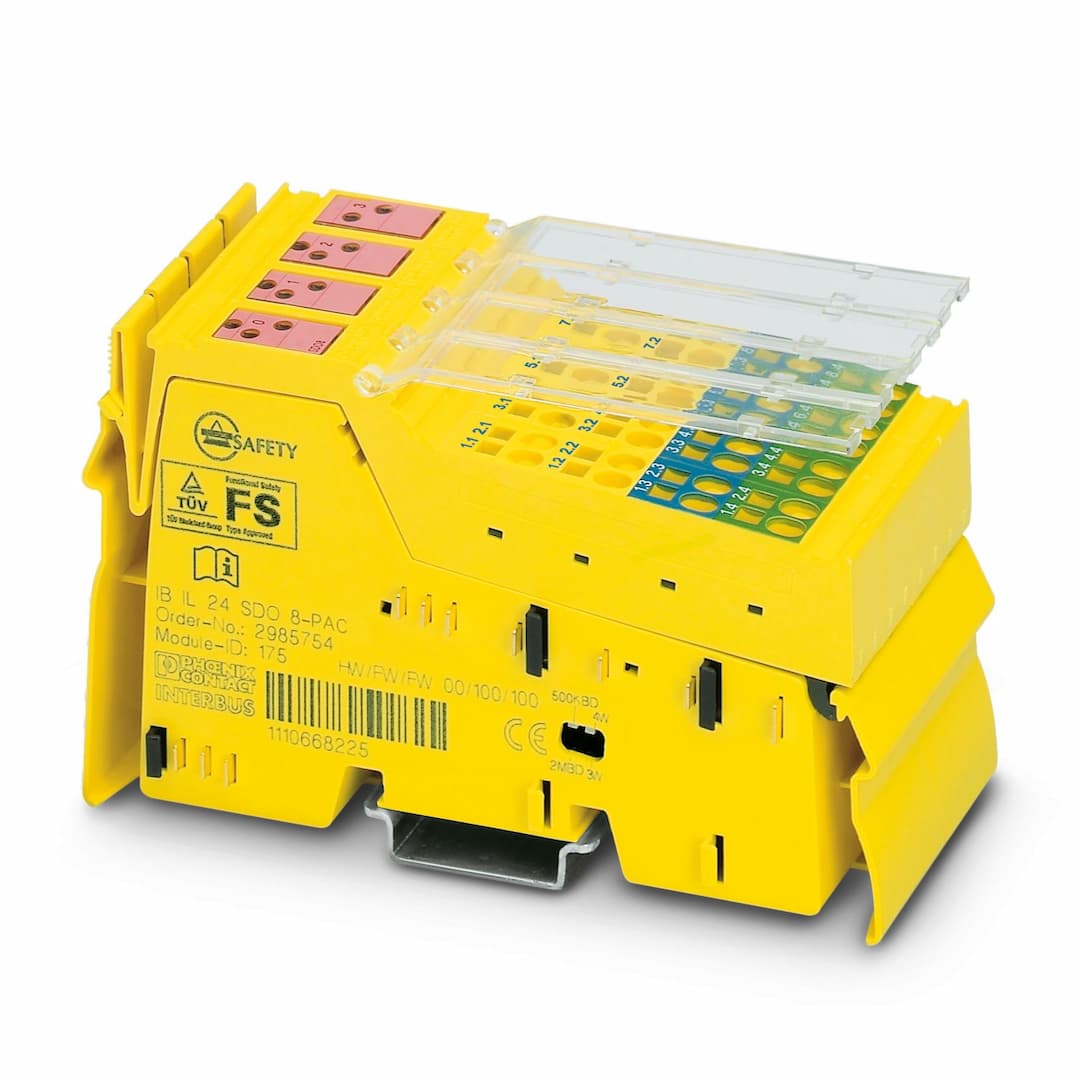

IB IL 24 SDO 8-PAC

Selling Points
- 1Connect up to eight digital actuators with this terminal.
- 2Supports 2, 3, and 4-wire technology for flexibility.
- 3Includes local diagnostic and status indicators for easy monitoring.
- 4Nominal current of each output is 0.5 A, with a total current of 4 A.
- 5Approved for use in safety-related segment circuits with short-circuit and overload protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Width | 48.8 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Color | yellow |
Connection method | Inline data jumper | Transmission speed | 500 kbps / 2 Mbps |
ID code (dec.) | 175 | ID code (hex) | AF |
Output name | Digital outputs | Connection method | Spring-cage connection |
Connection technology | 2-, 3-, 4-conductor | Number of outputs | 8 |
Protective circuit | Overload protection, short-circuit protection of outputs | Output voltage | 24 V DC (U |
Maximum output current per group | 3 A | Maximum output current per channel | 2 A |
Maximum output current per module / terminal block | 3 A | Maximum output current per module | 3 A |
Nominal output voltage | 24 V DC | Nominal load, inductive | see safety data |
Nominal load, lamp | see safety data | Nominal load, ohmic | see safety data |
Behavior with inductive overload | Output can be destroyed | Product type | I/O component |
Product family | Inline | Application | IB-Safety |
Type | modular | Diagnostics messages | Short-circuit or overload of the digital outputs Error message in diagnostics code (bus) and display by means of the LED on the motor |
Maximum power dissipation for nominal condition | 150 W | Transmission medium | Copper |
Supply voltage | 7.5 V DC (see safety data) | Current draw | max. 230 mA (see safety data) |
Supply voltage | 24 V DC (see safety data) | Supply voltage | 24 V (see safety data) |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC |
Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 16 | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 16 | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 80 hPa ... 108 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 66 hPa ... 108 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Permissible humidity (operation) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) | Permissible humidity (storage/transport) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
