Product Model

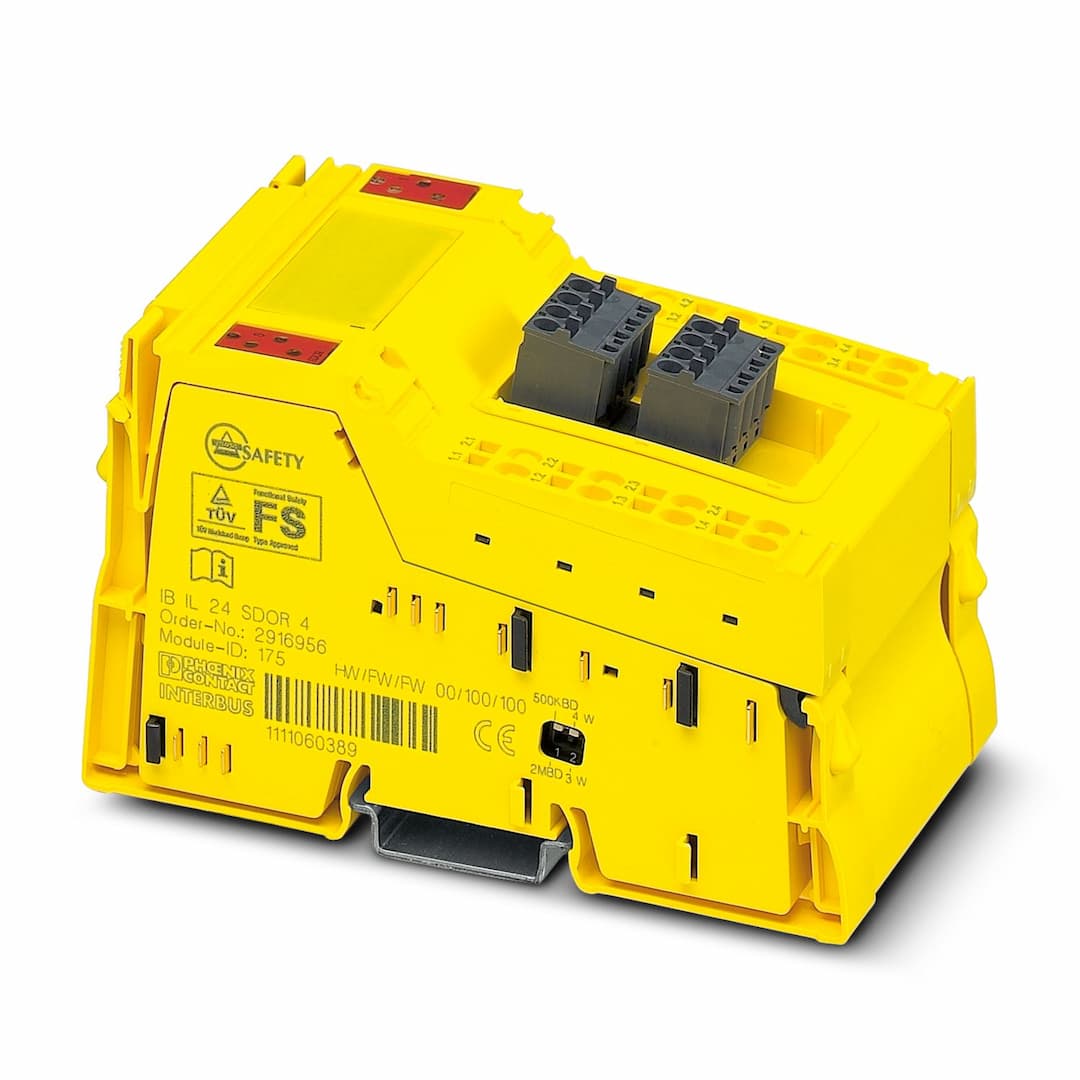

IB IL 24 SDOR 4-PAC
Selling Points
- 1The module includes four safe digital relay outputs, each with two contacts for reliable operation.
- 2Set the transmission speed to 500 kbps or 2 Mbps using a switch for optimal system performance.
- 3Ensures a high level of protection against electrical shock and other hazards, meeting safety standards.
- 4Built with a robust housing that withstands ambient temperatures from -25°C to 55°C and humidity levels up to 85%.
- 5Mounts easily on DIN rail, simplifying integration into existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 73.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Color | yellow |
Connection method | Inline data jumper | Transmission speed | 500 kbps / 2 Mbps |
ID code (dec.) | 175 | ID code (hex) | AF |
Output name | Relay output | Connection method | Spring-cage connection |
Connection technology | 2-, 3-, 4-conductor | Number of outputs | 4 |
Output voltage | 24 V DC (U | Maximum output current per channel | 4 A |
Maximum output current per module | 3 A (See technical data) | Nominal output voltage | See technical data |
Nominal load, inductive | see safety data | Nominal load, lamp | see safety data |
Nominal load, ohmic | see safety data | Behavior with inductive overload | Output can be destroyed |
Product type | I/O component | Product family | Inline |
Application | IB-Safety | Type | modular |
Diagnostics messages | Short-circuit or overload of the digital outputs Error message in diagnostics code (bus) and display by means of the LED on the motor | Maximum power dissipation for nominal condition | 78 W |
Transmission medium | Copper | Supply voltage | 7.5 V DC (see safety data) |
Current draw | max. 360 mA (see safety data) | Supply voltage | 24 V DC (see safety data) |
Supply voltage | 24 V (see safety data) | Supply voltage | 24 V DC (via voltage jumper) |
Supply voltage range | 19.2 V DC ... 30 V DC | Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min |
Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 1.5 mm² | Conductor cross section AWG | 24 ... 16 |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² | Conductor cross section AWG | 24 ... 16 |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 80 hPa ... 108 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 66 hPa ... 108 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 70 °C | Permissible humidity (operation) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
Permissible humidity (storage/transport) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
