Product Model

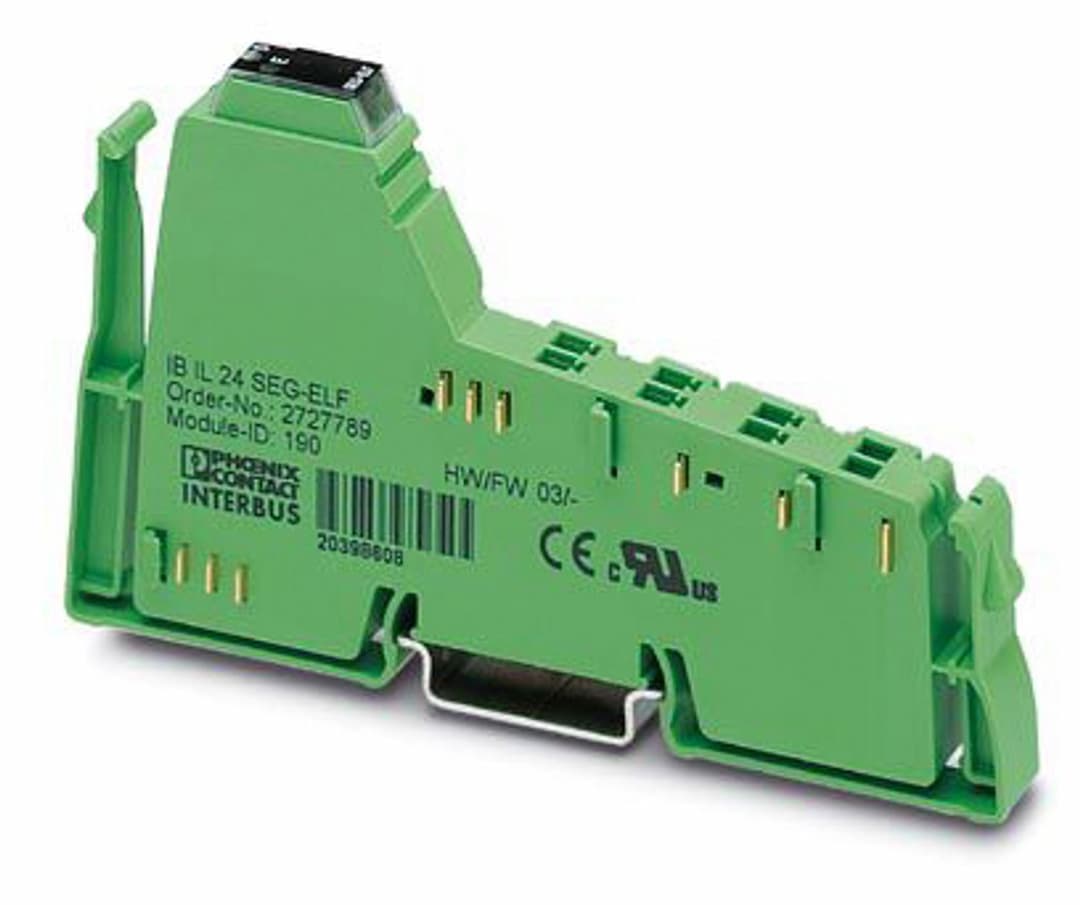

IB IL 24 SEG-ELF-2MBD
Selling Points
- 1Automatic Segment Circuit Creation: Easily integrate into main circuits with automatic creation of segment circuits.
- 2Electronic Fuse Protection: Safeguard your system with electronic fuses that limit short-circuit currents.
- 3Diagnostic Indicators: Monitor status and errors via LED indicators for quick troubleshooting.
- 4Robust Design: Built with IP20 protection and operating in a wide temperature range (-25°C to +55°C).
- 5Efficient Power Management: Manage power efficiently with a maximum current consumption of 2.5 A at 24 V DC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Error messages via the bus | Short-circuit/Overload in segment circuit
Operating voltage fallen below or exceeded | ID code (dec.) | 190 |
ID code (hex) | BE | Length code (hex) | C2 |
Length code (dec) | 194 | Process data channel | 2 bit |
Input address area | 2 bit | Output address area | 0 bit |
Register length | 2 bit | Required parameter data | 1 Byte |
Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min
24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min | Fuse | 2.5 A (electronic) |
I/O voltage | 24 V DC | Max. current consumption | max. 60 mA |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 60 mA |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 2.5 A (nominal value) | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Connection method | Inline potential distributor |
Connection method | Inline data jumper | Width | 12.2 mm |
Height | 119.8 mm | Depth | 71.5 mm |
Color | green | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 55 °C | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) | Permissible humidity (storage/transport) | 75 % ... 85 % (Slight temporary condensation may sometimes appear on the housing, e.g. when the terminal block is brought out of a vehicle into an enclosed room.) |
Mounting type | DIN rail mounting |
