Product Model

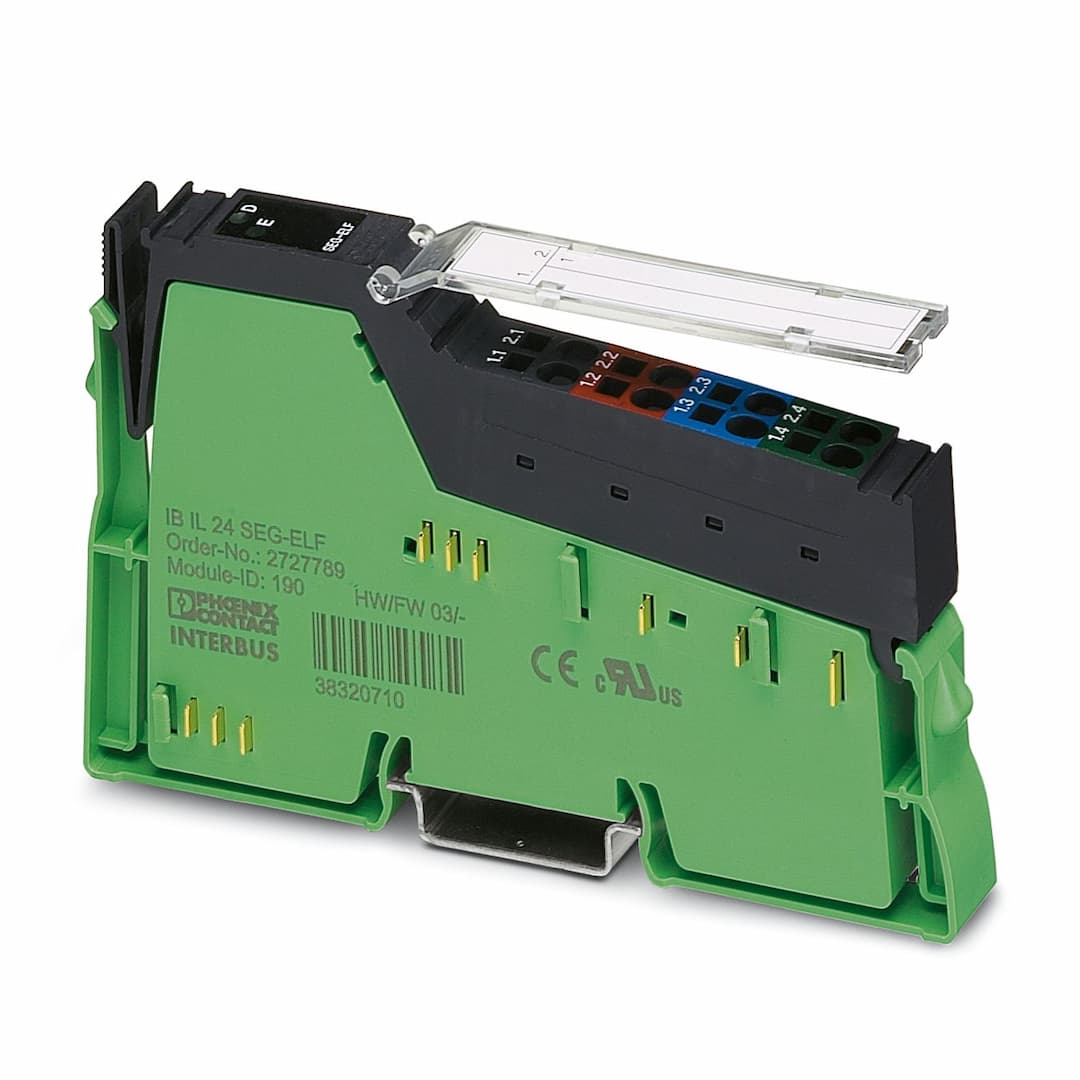

IB IL 24 SEG-ELF-PAC
Selling Points
- 1Easily create isolated groups within the main circuit.
- 2Safeguard your segment circuit with an electronic fuse that limits short-circuit current.
- 3Monitor system status with LED indicators for bus diagnostics and fuse status.
- 4Flexibly integrate into various configurations, reducing unnecessary wiring and enhancing compactness.
- 5Ensure reliable operation in potentially explosive areas with appropriate safety measures and compliance with international standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
CCCex note | Use in potentially explosive areas is not permitted in China. | Number of interfaces | 2 |
Connection method | Inline data jumper | Transmission speed | 500 kbps / 2 Mbps |
ID code (dec.) | 190 | ID code (hex) | BE |
Length code (hex) | C2 | Length code (dec) | 194 |
Process data channel | 2 bit | Input address area | 2 bit |
Output address area | 0 bit | Register length | 2 bit |
Required parameter data | 1 Byte | Required configuration data | 4 Byte |
Product type | I/O component | Product family | Inline |
Type | modular | Number of plugs | 1 |
Article revision | 06 | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Maximum power dissipation for nominal condition | 0.65 W | Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min
24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min |
Protective circuit | Overload protection | Fuse | 2.5 A (electronic) |
I/O voltage | 24 V DC | I/O voltage range | 19.2 V DC ... 30 V DC |
Residual ripple | ± 1.2 V | Max. current consumption | 2.5 A |
Typical current consumption | 30 mA | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 30 mA | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 2.5 A (nominal value) |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 55 °C | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) | Permissible humidity (storage/transport) | 75 % ... 85 % (Slight temporary condensation may sometimes appear on the housing, e.g. when the terminal block is brought out of a vehicle into an enclosed room.) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
