Product Model

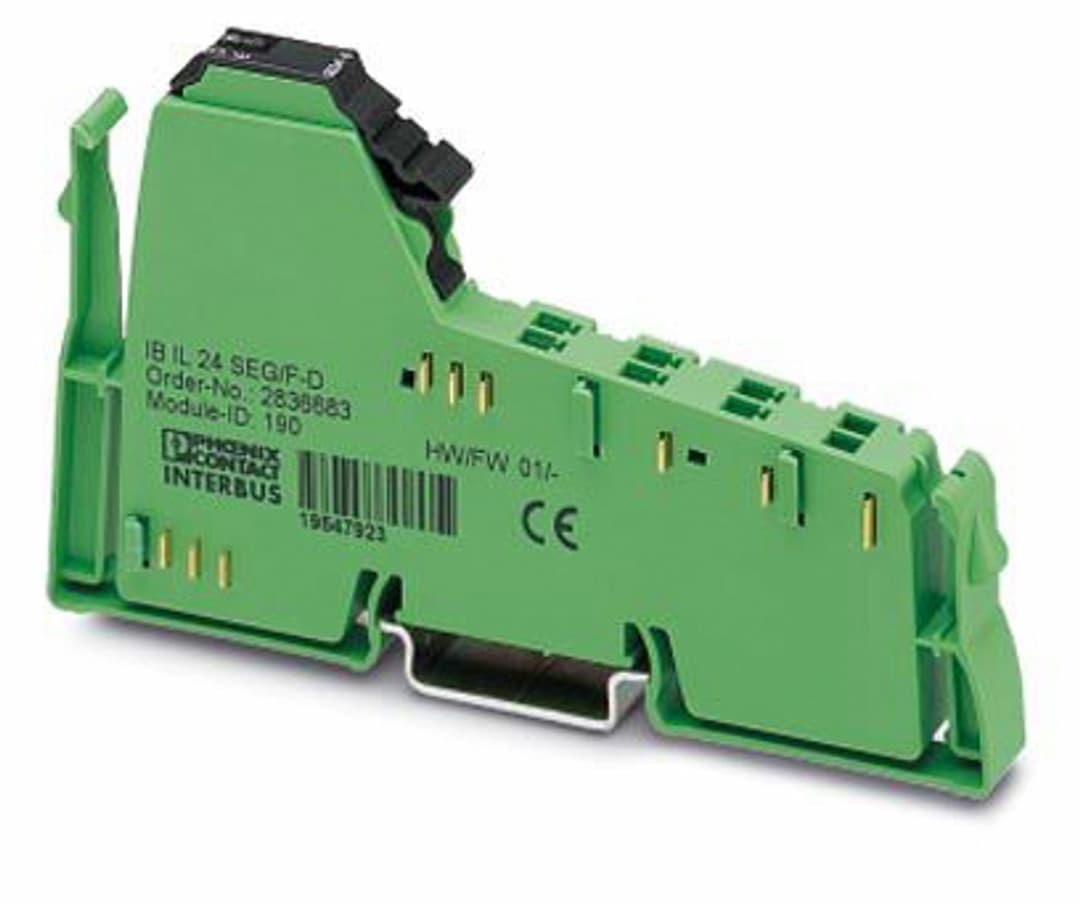

IB IL 24 SEG/F-D
Selling Points
- 1Seamlessly integrate a protected partial circuit within the main circuit.
- 2Ensure segment circuit safety with an internal fuse that prevents short circuits and overloads.
- 3Monitor bus diagnostics and status indicators for real-time feedback on supply voltage and fuse status.
- 4Compact housing dimensions (12.2 mm x 120 mm x 71.5 mm) for easy installation in Inline stations.
- 5Operate within a wide temperature range (-25°C to +55°C) and withstand up to 85% humidity for reliable performance in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular | Number of plugs | 1 |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Error messages via the bus | I/O error message with no segment voltage U
/O error message when fuse triggered or missing |
ID code (dec.) | 190 | ID code (hex) | BE |
Length code (hex) | C2 | Length code (dec) | 194 |
Process data channel | 2 bit | Input address area | 2 bit |
Output address area | 0 bit | Register length | 2 bit |
Required parameter data | 1 Byte | Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min
24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min |
Protective circuit | Overload protection; Fuse | Fuse | SI 5 x 20 6, 300 AT (in scope of delivery) |
I/O voltage | 24 V DC | I/O voltage range | 19.2 V DC ... 30 V DC |
Residual ripple | ± 1.2 V | Max. current consumption | 4 A |
Typical current consumption | 30 mA | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 25 mA DC | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 4 A (nominal value) |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Connection method | Inline data jumper | Connection method | Inline potential distributor |
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Color | green |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 55 °C |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) |
Permissible humidity (storage/transport) | 75 % ... 85 % (Slight temporary condensation may sometimes appear on the housing, e.g. when the terminal block is brought out of a vehicle into an enclosed room.) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
