Product Model

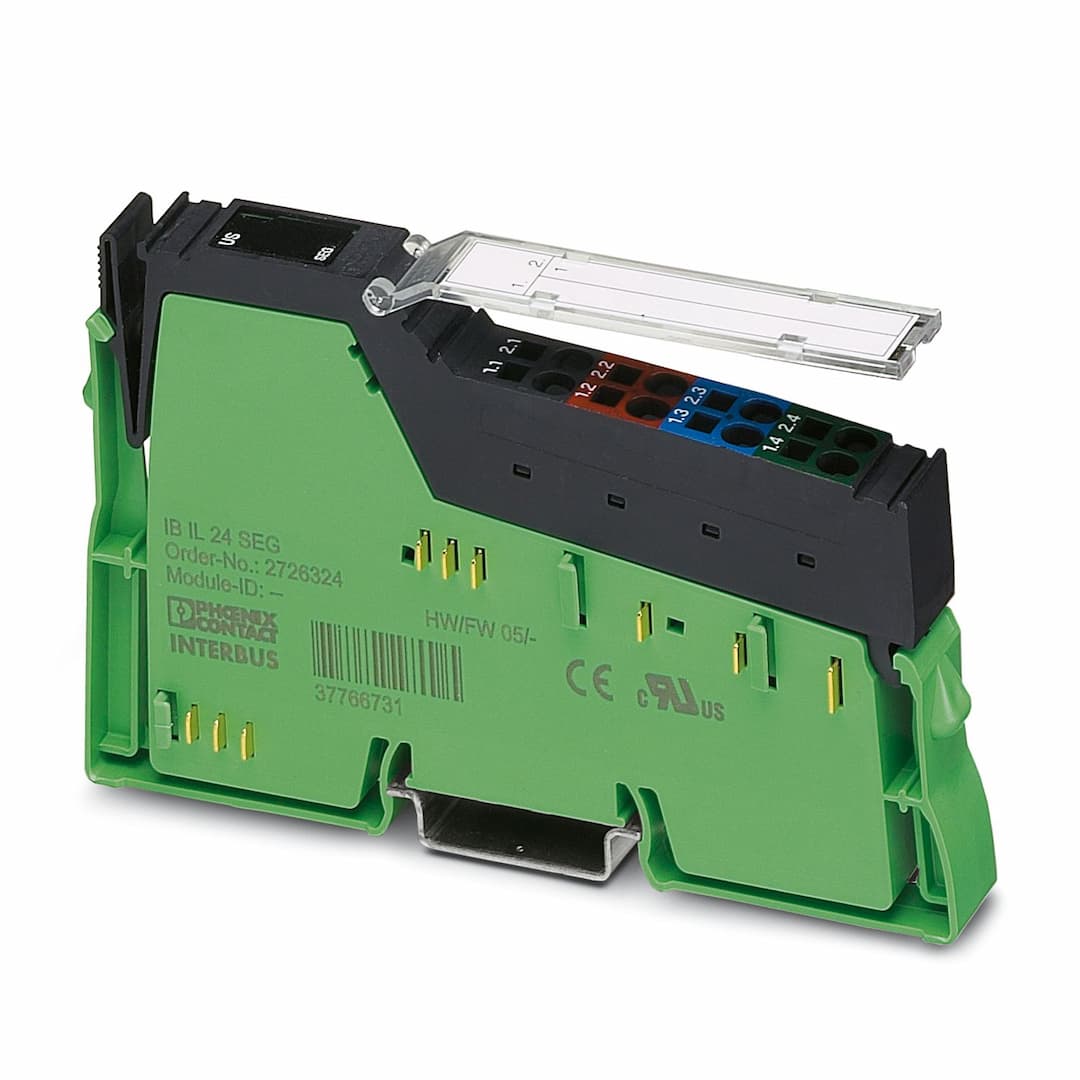

IB IL 24 SEG-PAC
Selling Points
- 1Versatile Segmentation Module: Ideal for creating partial circuits within main circuits using external bridges or switches.
- 2Diagnostic Capabilities: Equipped with diagnostic and status indicators for easy monitoring.
- 3Safe Digital Outputs: Offers four safe digital outputs with two-channel occupancy or eight safe digital outputs with single-channel occupancy.
- 4Durable Construction: Meets IP20 protection standards and operates in ambient temperatures from -25°C to 55°C.
- 5Easy Installation: Compatible with DIN rail mounting and includes accessories like connectors and labeling fields.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
CCCex note | Use in potentially explosive areas is not permitted in China. | Number of interfaces | 2 |
Connection method | Inline data jumper | Transmission speed | 500 kbps / 2 Mbps |
ID code (dec.) | none | ID code (hex) | none |
Register length | 0 Byte | Required parameter data | 0 Byte |
Required configuration data | 0 Byte | Product type | I/O component |
Product family | Inline | Type | modular |
Number of plugs | 1 | Article revision | 08 |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Maximum power dissipation for nominal condition | 0 W |
Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min
24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min | Protective circuit | Overload protection; Fuse |
I/O voltage | 24 V DC | I/O voltage range | 19.2 V DC ... 30 V DC |
Residual ripple | ± 1.2 V | Max. current consumption | 6 A (8 A) |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 8 A (nominal value) | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 55 °C |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) |
Permissible humidity (storage/transport) | 75 % ... 85 % (Slight temporary condensation may sometimes appear on the housing, e.g. when the terminal block is brought out of a vehicle into an enclosed room.) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
