Product Model

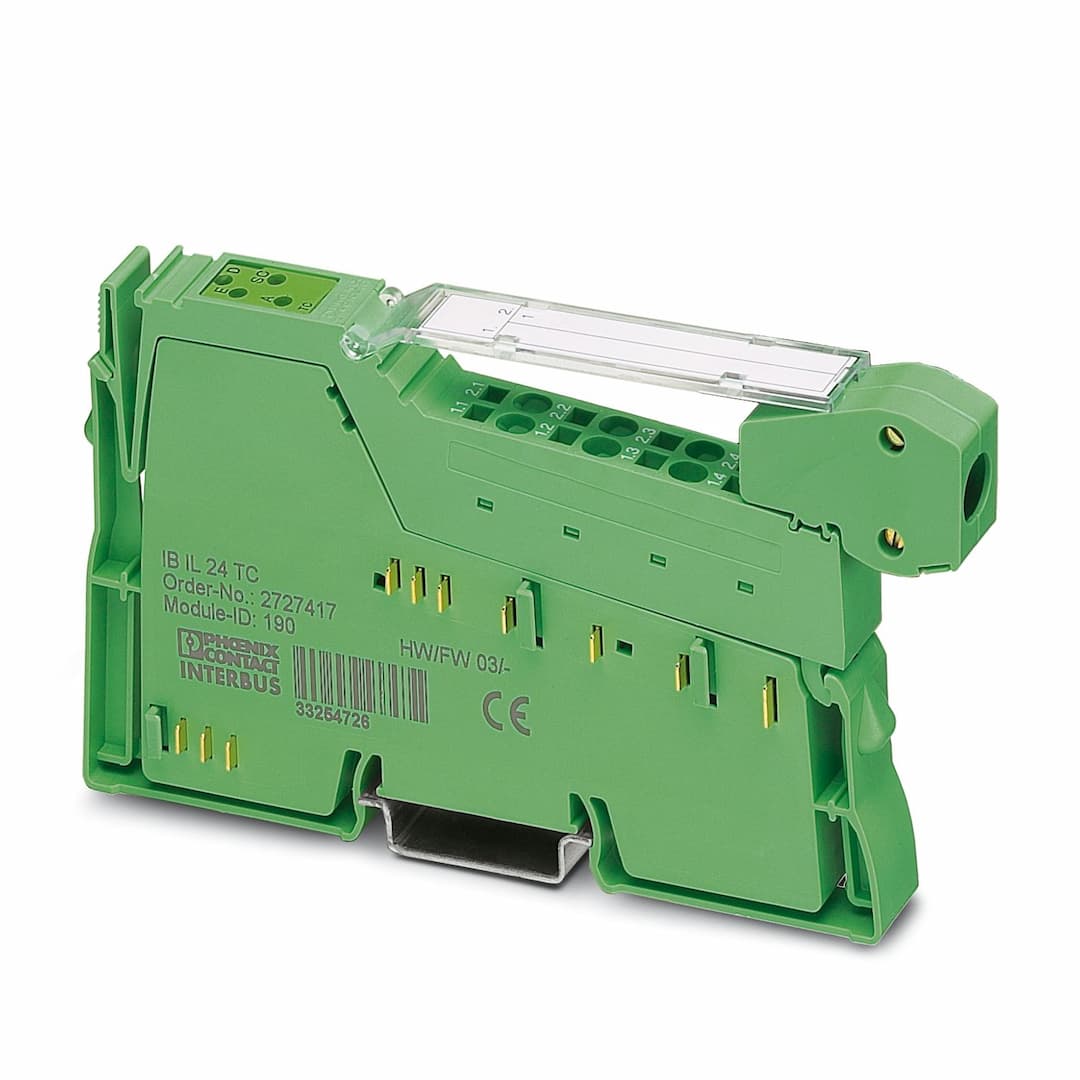

IB IL 24 TC-PAC
Selling Points
- 1High-speed transmission at 500 kbps for efficient data transfer.
- 2Compact design with IP20 protection for reliable operation in various environments.
- 3Spring-cage connection for easy and secure terminal connections.
- 4Ideal for PLC and IO applications, enhancing system integration and performance.
- 5Normally in stock, with a competitive sale price of $224.51.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
Transmission physics | Copper | ID code (dec.) | 190 |
ID code (hex) | BE | Length code (hex) | 41 |
Length code (dec) | 65 | Process data channel | 4 bit |
Input address area | 4 bit | Output address area | 0 Byte |
Register length | 4 bit | Required parameter data | 1 Byte |
Required configuration data | 4 Byte | Input name | Resistance sensor |
Description of the input | Input for PTC thermistor | Number of inputs | 1 |
Connection method | Spring-cage connection | Connection technology | 2-conductor |
Sensor types (RTD) that can be used | PTC thermistor according to DIN 44081 or DIN 44082 | Input filter time | typ. 10 ms |
Nominal value of the current sources | max. 1.2 mA (For non-load voltage of < 8 V DC) | Linear resistance measuring range | 2.7 kΩ ... 3.5 kΩ (Shutdown range, total resistance)
50 Ω ... 2.25 kΩ (Operating range, total resistance) |
Connection method | Spring-cage connection | Connection technology | 2-conductor |
Number of outputs | 1 | Protective circuit | short-circuit and overload proof |
Current output signal | 500 mA (per output) | Voltage output signal | 24 V DC (U |
Load/output load voltage output | < 2.7 kΩ (Total resistance for output signal HIGH) | Product type | I/O component |
Product family | Inline | Type | modular |
Article revision | 05 | Maximum power dissipation for nominal condition | 0.6 W |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 60 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 500 mA | Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logics)/24 V analog supply (analog I/O) | 500 V AC, 50 Hz, 1 min |
Test voltage: 24 V analog supply (analog I/O)/functional ground | 500 V AC, 50 Hz, 1 min | Test voltage: Thermistor / all other areas | 1200 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | -25 % ... 55 % (75% average, 85% seldom) | Permissible humidity (storage/transport) | -25 % ... 85 % |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
