Product Model

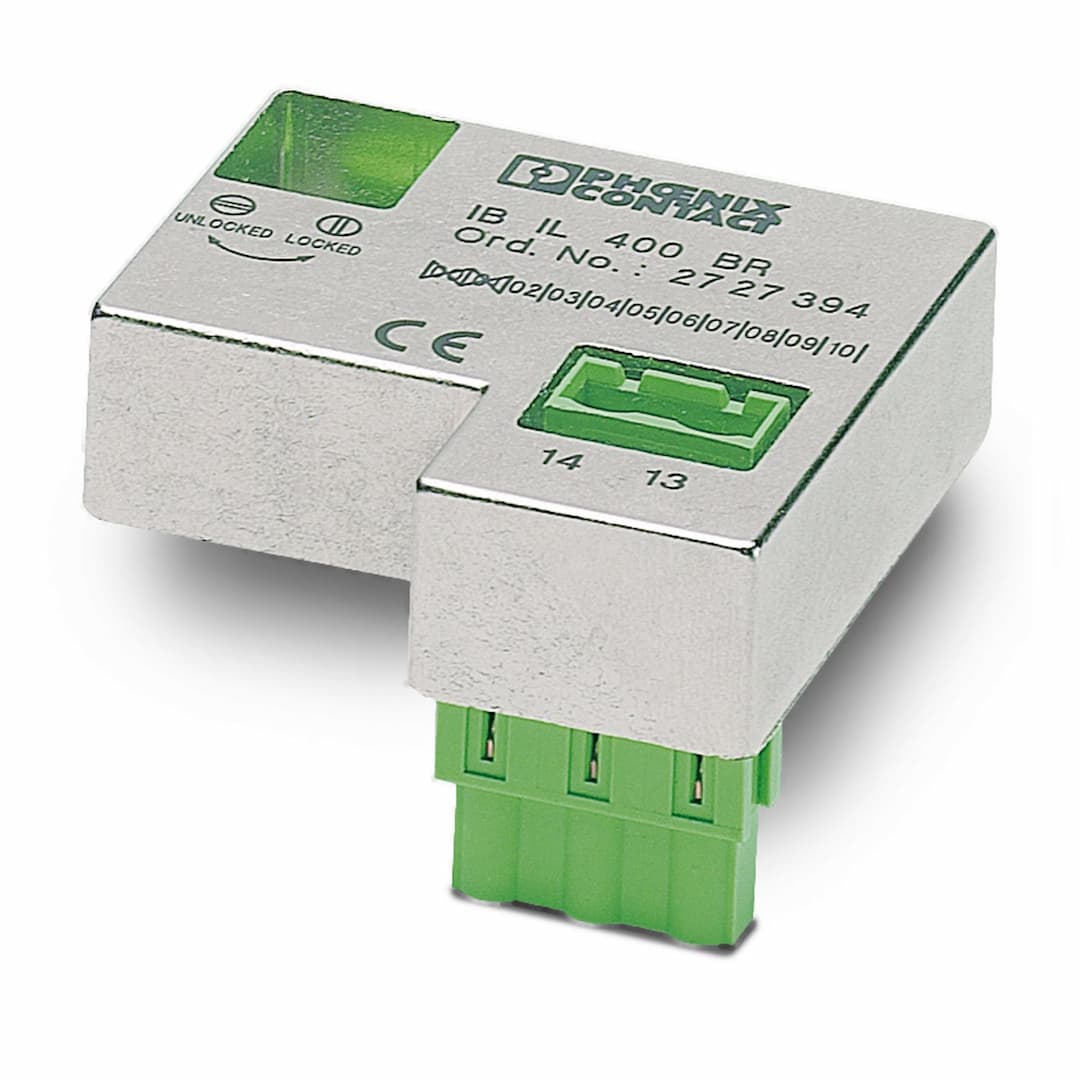

IB IL 400 BR
Selling Points
- 1Ensures safe operation and compliance with IEC 60947-4 standards.
- 2Provides real-time monitoring for efficient system management.
- 3Ensures secure separation between mains voltage and 24 V supply voltage according to EN 50178.
- 4Facilitates easy operation and configuration.
- 5Enhances system reliability with precise current monitoring capabilities.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Extension module | Product family | Inline |
Type | Inline | No. of channels | 1 |
Protection class | I (IEC 61140, EN 61140, VDE 0140-1) | Switch-on delay | < 4 ms |
Test section | 24 V supply (U
24 V supply (U
Brake output/protective earth ground (PE) 500 V AC 50 Hz 1 min | Connection name | Connection of the brake to the brake module |
Connection method | COMBICON connectors | Cross section | 2.5 mm² (maximum conductor cross section) |
Protective circuit | Surge voltage suppression > 750 V | Contact connection type | Unpolarized semiconductor switch |
Connection voltage | 20 V AC ... 440 V AC (no tolerances permitted)
12 V DC ... 440 V DC (no tolerances permitted) | Residual voltage | 3.4 V (maximum) |
Connection name | Connection to the power-level terminal block | Connection method | 3-pos. COMBICON |
Control voltage | 24 V DC (= Us from the power-level terminal block) | Control current | 17 mA |
Active current limitation | Through resistor | Residual voltage | 3.4 V (maximum) |
Connection method | COMBICON connectors | Width | 55 mm |
Height | 57 mm | Depth | 16 mm |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 55 °C (permitted) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C (permitted) | Permissible humidity (operation) | 75 % ... 85 % (75% average, 85% seldom) |
Permissible humidity (storage/transport) | 75 % ... 85 % (75% average, 85% seldom) | Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Mounting type | In the host system |
Specifications may be subject to change without notice
