Product Model

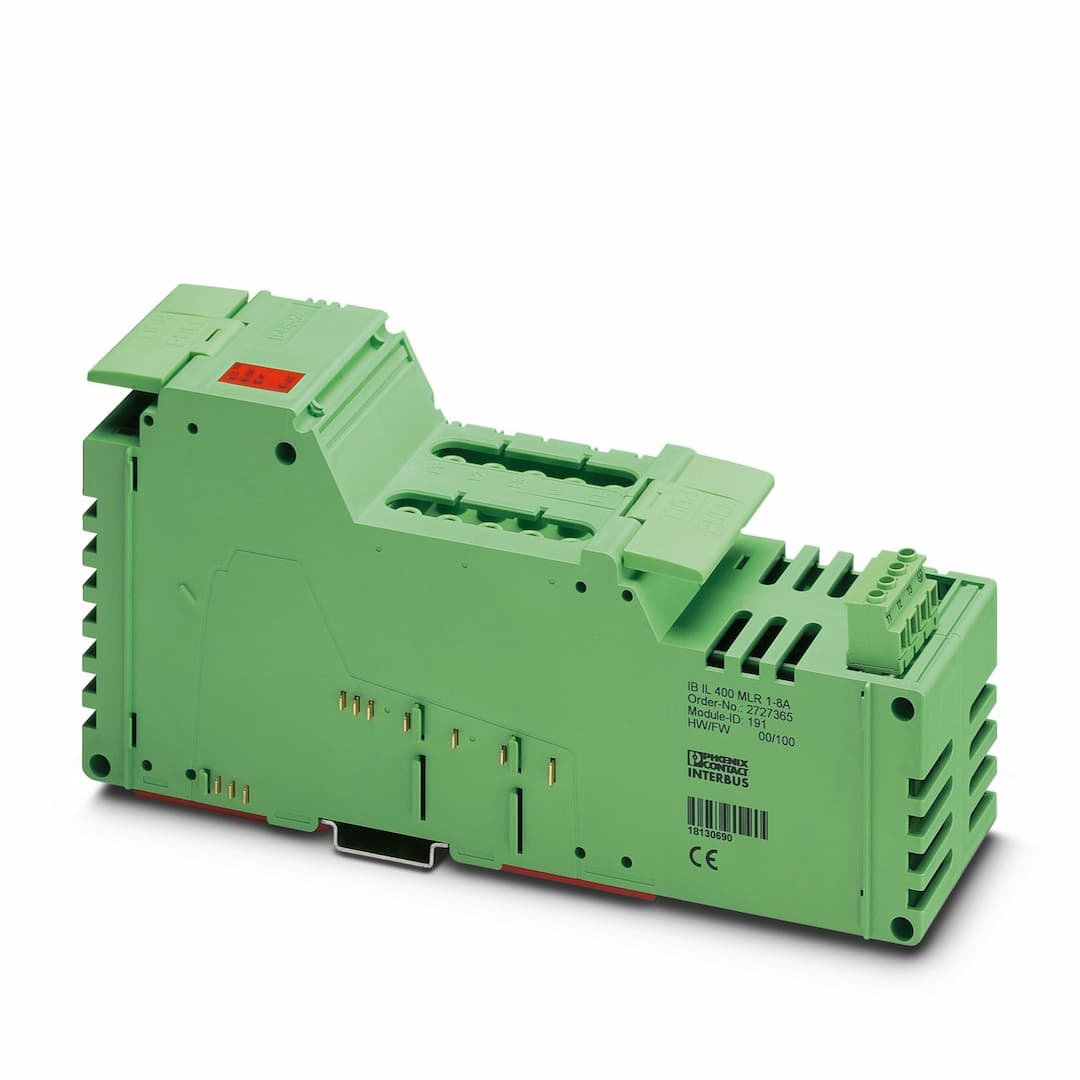

IB IL 400 MLR 1-8A-2MBD
Selling Points
- 1Advanced Motor Protection: Integrated electronic motor protection according to IEC 60947-4:1990.
- 2Efficient Motor Current Monitoring: Real-time monitoring of motor current with a resolution of 1/32.
- 3Reliable Three-Phase Control: Switching, protection, and monitoring of three-phase asynchronous motors via INTERBUS protocol.
- 4Safe Isolation: Safe isolation or basic insulation between line voltage and 24 V supply voltage according to EN 50178:1997.
- 5Versatile Connectivity Options: Connection options for external passive brake module and manual mode operation via Operator Hand Panel.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular | Diagnostics messages | Overcurrent Error message in the diagnostic code (bus) and display via the LED ERR on the module
Output stage cannot be controlled Error message in the diagnostic code (bus) and display via the LED ERR on the module |
ID code (dec.) | 191 | ID code (hex) | BF |
Length code (hex) | 81 | Length code (dec) | 129 |
Process data channel | 8 bit | Input address area | 1 Byte |
Output address area | 1 Byte | Register length | 8 bit |
Required parameter data | 5 Byte | Required configuration data | 5 Byte |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 75 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 28.8 V DC (including all tolerances, including ripple) |
Current draw | max. 160 mA | Connection method | Through the potential jumper |
Designation | Terminal strips X11 and X12 | Test voltage: Supply voltage U | 1200 V AC, 50 Hz, 1 min |
Test voltage: Supply voltage U | 1200 V AC, 50 Hz, 1 min | Test voltage: Supply voltage U | 1200 V AC, 50 Hz, 1 min |
Test voltage: Supply voltage U | 1200 V AC, 50 Hz, 1 min | Test voltage: Local bus/400 V level | 1200 V AC, 50 Hz, 1 min |
Test voltage: Local bus/Brake control switch | 1200 V AC, 50 Hz, 1 min | Connection method | Screw connection |
Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Connection method | Inline data jumper |
Transmission speed | 2 Mbps | Transmission physics | Copper |
Diagnostics | Overcurrent | Message | Error message in the diagnostic code (bus) and display via the LED ERR on the module |
Diagnostics | Output stage cannot be controlled | Message | Error message in the diagnostic code (bus) and display via the LED ERR on the module |
Width | 63 mm | Height | 224 mm |
Depth | 109 mm | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 55 °C | Note | Notes on operation Line protection for the network supply line, max. 20 A. Observe derating of the POWER-COMBICON connector |
Air pressure (operation) | 80 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) |
Permissible humidity (storage/transport) | 75 % ... 85 % (Slight temporary condensation may sometimes appear on the housing, e.g. when the terminal block is brought out of a vehicle into an enclosed room.) | Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
Noise emission | Test of emitted interference, housing, in acc. with EN 50081-2:1993 EN 55011:1991 class A | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
