Product Model

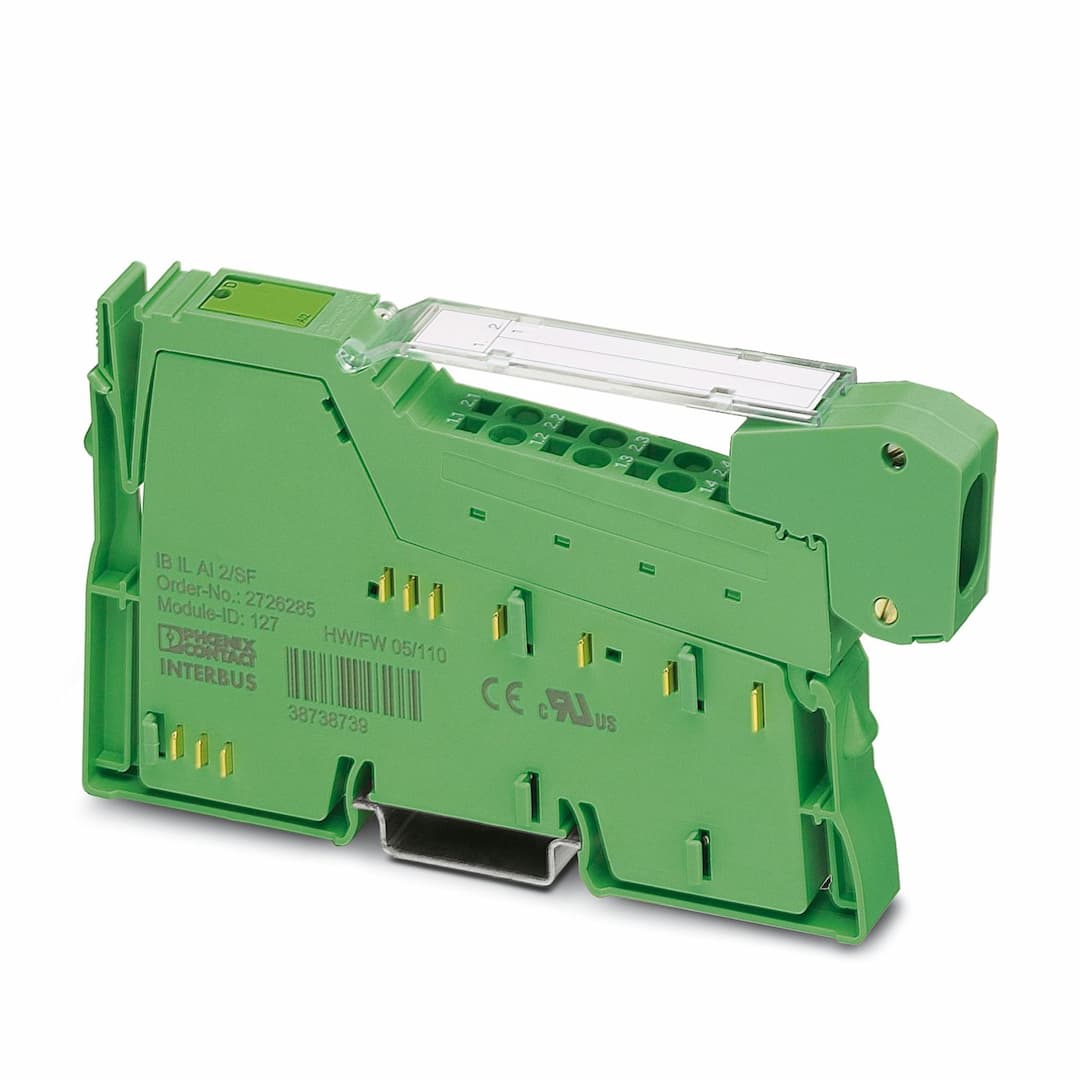

IB IL AI 2/4-20-PAC
Selling Points
- 1Dual Analog Inputs: Connect voltage or current signals with two single-ended analog inputs.
- 2Versatile Ranges: Measure current from 0 mA to 20 mA, ±20 mA, and 4 mA to 20 mA, as well as voltage from 0 V to 10 V and ±10 V.
- 3Independent Channel Configuration: Configure channels independently via INTERBUS for precise signal management.
- 4Compact Design: Dimensions: 12.2 mm wide, 136.8 mm high, and 71.5 mm deep, ideal for DIN rail mounting.
- 5Robust and Reliable: Meets EMC class A standards and operates in ambient temperatures from -25 °C to 55 °C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 136.8 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
Number of interfaces | 2 | Connection method | Inline data jumper |
Transmission speed | 500 kbps | Transmission physics | Copper |
ID code (dec.) | 127 | ID code (hex) | 7F |
Length code (hex) | 02 | Length code (dec) | 02 |
Process data channel | 32 bit | Input address area | 4 Byte |
Output address area | 4 Byte | Register length | 32 bit |
Required parameter data | 6 Byte | Input name | Analog inputs |
Description of the input | Single-ended inputs, voltage or current | Number of inputs | 2 |
Connection method | Inline shield connector | Connection technology | 2-conductor |
Note regarding the connection technology | shielded | Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA
-20 mA ... 20 mA |
Voltage input signal | 0 V ... 10 V
-10 V ... 10 V | Product type | I/O component |
Product family | Inline | Type | modular |
Scope of delivery | including Inline connector and labeling field | Article revision | 05 |
Overvoltage category | II (IEC 60664-1, EN 60664-1) | Pollution degree | 2 (IEC 60664-1, EN 60664-1) |
Maximum power dissipation for nominal condition | 0.9 W | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 60 mA
typ. 45 mA | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 18 mA
typ. 13.5 mA |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
