Product Model

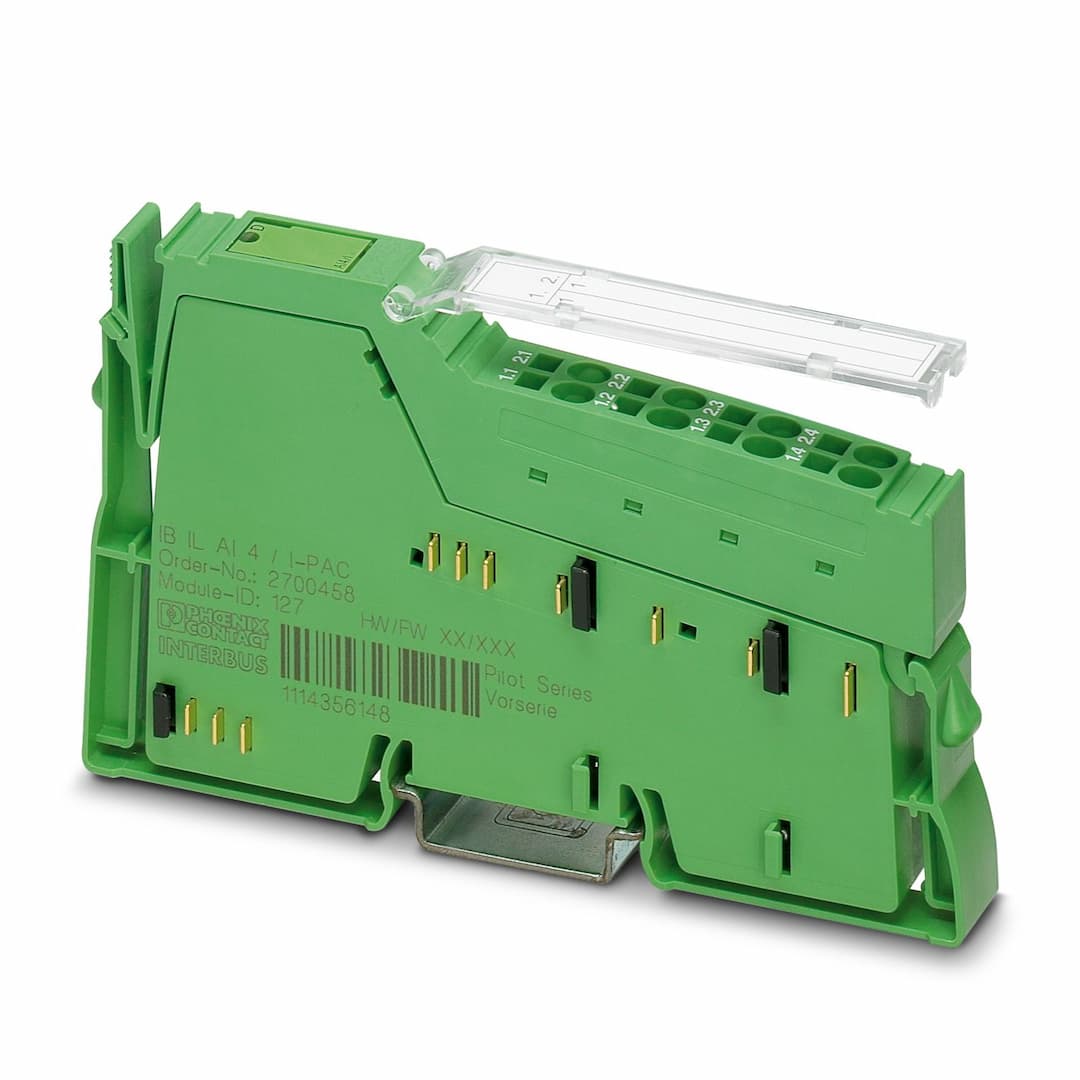

IB IL AI 4/I-PAC
Selling Points
- 1High Measuring Accuracy: Achieve precise measurements with 12-bit A/D conversion and 13-bit measured value resolution.
- 2Excellent Interference Suppression: Minimize signal noise with robust interference suppression and common mode rejection.
- 3Integrated Overload Protection: Safeguard your system with integrated short-circuit-proof sensor supply and overload protection.
- 4Versatile Input Ranges: Handle various input signals including 0-20 mA, 4-20 mA, and ±20 mA.
- 5Durable Design: Operate in a wide ambient temperature range (-25 °C to 55 °C) and high humidity conditions (10% to 95%).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Note on application | Only for industrial use | Number of interfaces | 2 |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
Transmission physics | Copper | ID code (dec.) | 127 |
ID code (hex) | 7F | Length code (hex) | 04 |
Length code (dec) | 04 | Process data channel | 64 bit |
Input address area | 8 Byte | Output address area | 8 Byte |
Register length | 64 bit | Required parameter data | 10 Byte |
Required configuration data | 5 Byte | Input name | Analog inputs |
Description of the input | Differential inputs, current | Number of inputs | 4 |
A/D conversion time | max. 6.5 µs | A/D converter resolution | 12 bit |
Connection method | Inline connector | Connection technology | 2-conductor |
Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA | Input resistance current input | typ. 113 Ω |
Data formats | IB IL, S7-compatible | Filtering | None or mean-value generation over 4, 16, or 32 measured values |
Limit frequency (3 dB) | 300 Hz | Measured value resolution | 13 bits (12 bits + sign bit) |
Measured value representation | 13 bits (12 bits + sign bit) | Product type | I/O component |
Product family | Inline | Type | modular |
Scope of delivery | including Inline connector and labeling field | Diagnostics messages | Failure of the internal I/O supply I/O error message sent to the bus coupler
I/O supply failure Message in the diagnostic code (in the IB IL format)
Overrange or underrange Message in the diagnostic code (in the IB IL format)
Configuration invalid Message in the diagnostic code (in the IB IL format) |
Article revision | 08 | Overvoltage category | II (IEC 60664-1, EN 60664-1) |
Pollution degree | 2 (IEC 60664-1, EN 60664-1) | Maximum power dissipation for nominal condition | 1.45 W |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 60 mA
typ. 55 mA |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 35 mA
typ. 30 mA | Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min | Test voltage: I/O/functional ground | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
