Product Model

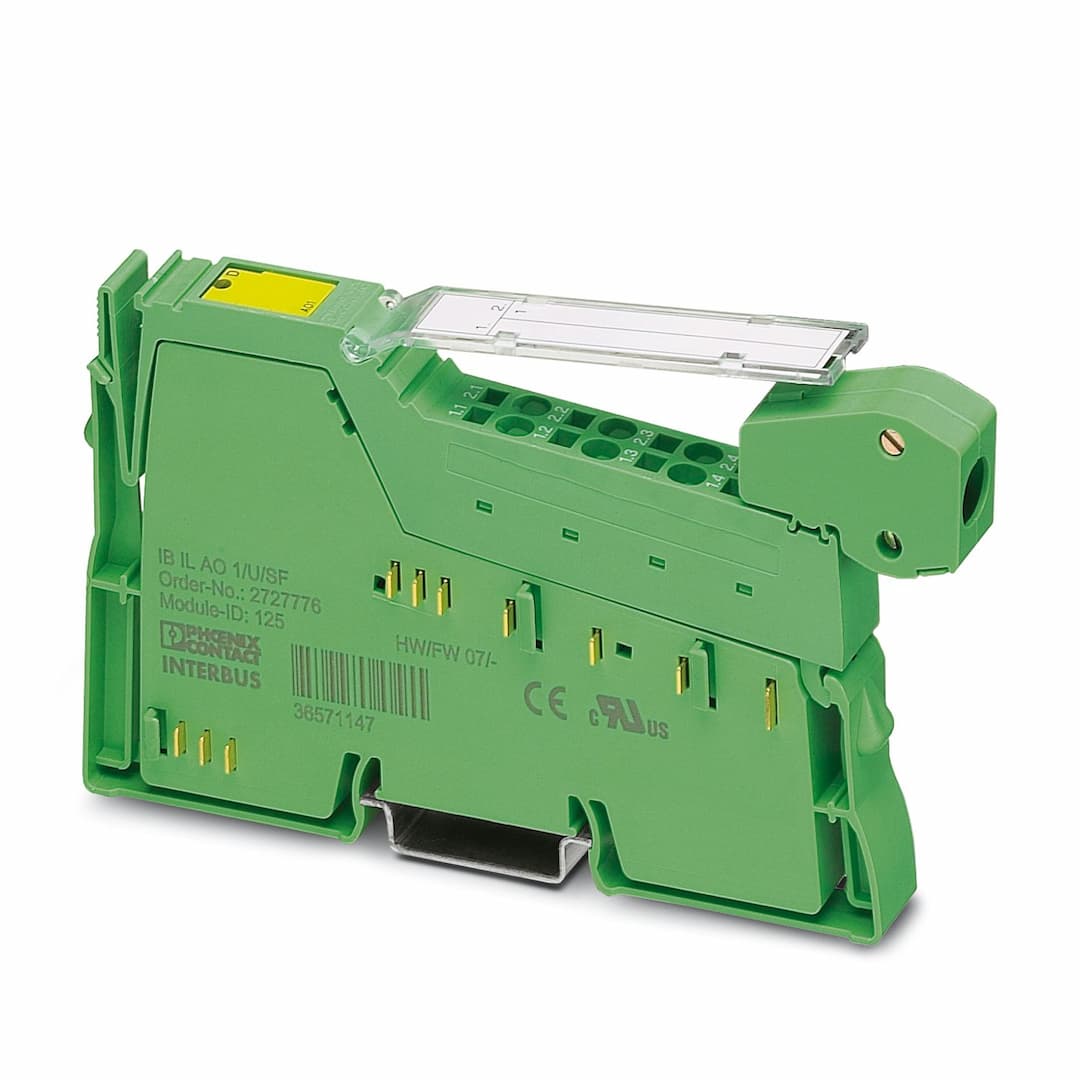

IB IL AO 1/U/SF-PAC
Selling Points
- 1High Precision Analog Output: Delivers precise analog voltage signals with a resolution of 16 bits.
- 2Compact Design: Measures 12.2 mm in width, 135 mm in height, and 71.5 mm in depth.
- 3Robust Connectivity: Uses 2-conductor technology for reliable actuator connections.
- 4Fast Data Transmission: Supports transmission speeds of up to 500 kbps on the local bus.
- 5IP20 Protection: Ensures protection against dust and water, suitable for control cabinet applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 135 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
CCCex note | Use in potentially explosive areas is not permitted in China. | Number of interfaces | 2 |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
Transmission physics | Copper | ID code (dec.) | 125 |
ID code (hex) | 7D | Length code (hex) | 01 |
Length code (dec) | 01 | Process data channel | 16 bit |
Input address area | 0 Byte | Output address area | 2 Byte |
Register length | 16 bit | Required parameter data | 4 Byte |
Required configuration data | 4 Byte | Output name | Analog output |
Connection technology | 2-conductor | Note regarding the connection technology | shielded |
Number of outputs | 1 | D/A converter resolution | 16 bit |
Protective circuit | Transient protection of outputs | Representation of output values | 16 bits (15 bits + sign) |
DAC resolution | 16 bit | Process data update | < 1 ms |
Voltage output signal | 0 V ... 10 V | Load/output load voltage output | > 2 kΩ 0.05 % |
Product type | I/O component | Product family | Inline |
Type | modular | Scope of delivery | including Inline connector and labeling field |
Article revision | 10 | Overvoltage category | II (IEC 60664-1, EN 60664-1) |
Pollution degree | 2 (IEC 60664-1, EN 60664-1) | Maximum power dissipation for nominal condition | 0.8 W |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 40 mA
typ. 30 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 20 mA
typ. 15 mA | Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
