Product Model

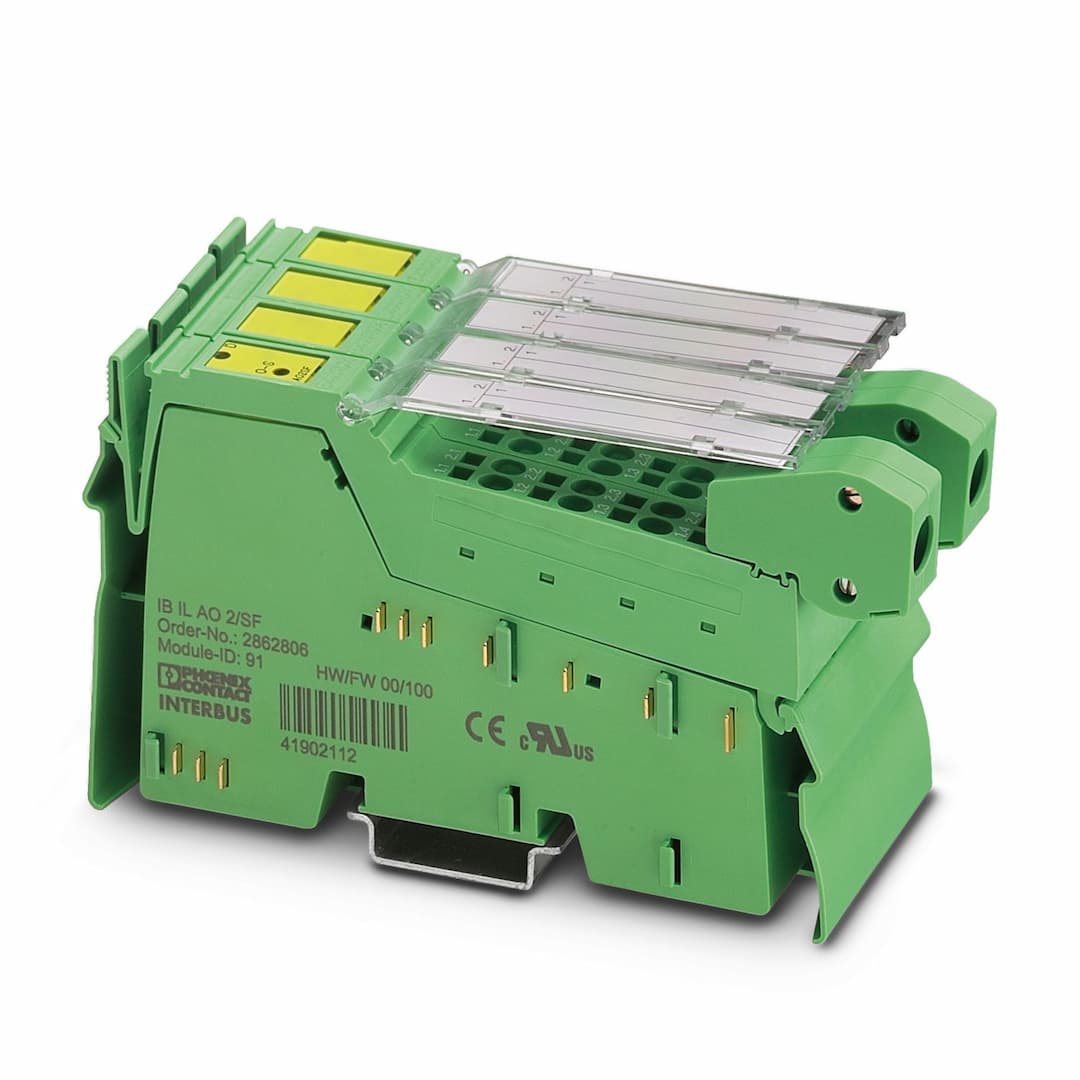

IB IL AO 2/SF
Selling Points
- 116-bit resolution ensures accurate and precise analog signal outputs.
- 2Supports both voltage and current signals, with ranges of 0-10 V and 0-20 mA, 4-20 mA.
- 3Engineered for demanding industrial environments with a shielded actuator connection.
- 4Process data updates in under 1 ms, ideal for real-time monitoring and control.
- 5Fail-safe outputs hold the last value in case of an error, ensuring operational safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular | ID code (dec.) | 91 |
ID code (hex) | 5B | Length code (hex) | 02 |
Length code (dec) | 02 | Process data channel | 32 bit |
Input address area | 2 Byte | Output address area | 2 Byte |
Register length | 32 bit | Required parameter data | 6 Byte |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 45 mA
typ. 36 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 95 mA
typ. 75 mA | Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
Output name | Analog outputs | Connection method | Spring-cage connection with direct connector-in method |
Connection technology | 2-conductor (shielded) | Number of outputs | 2 |
D/A conversion time | < 100 µs | D/A converter resolution | 16 bit |
Protective circuit | Short-circuit protection of outputs | Representation of output values | 16 bits (15 bits + sign) |
DAC resolution | 16 bit | Process data update | < 1 ms |
Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA | Load/output load current output | > 500 Ω |
Voltage output signal | 0 V ... 10 V | Load/output load voltage output | > 2 kΩ 0.03 % |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
No. of channels | 2 | Connection method | Inline data jumper |
Transmission speed | 500 kbps | Transmission physics | Copper |
Width | 48.8 mm | Height | 119.8 mm |
Depth | 71.5 mm | Color | green |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
