Product Model

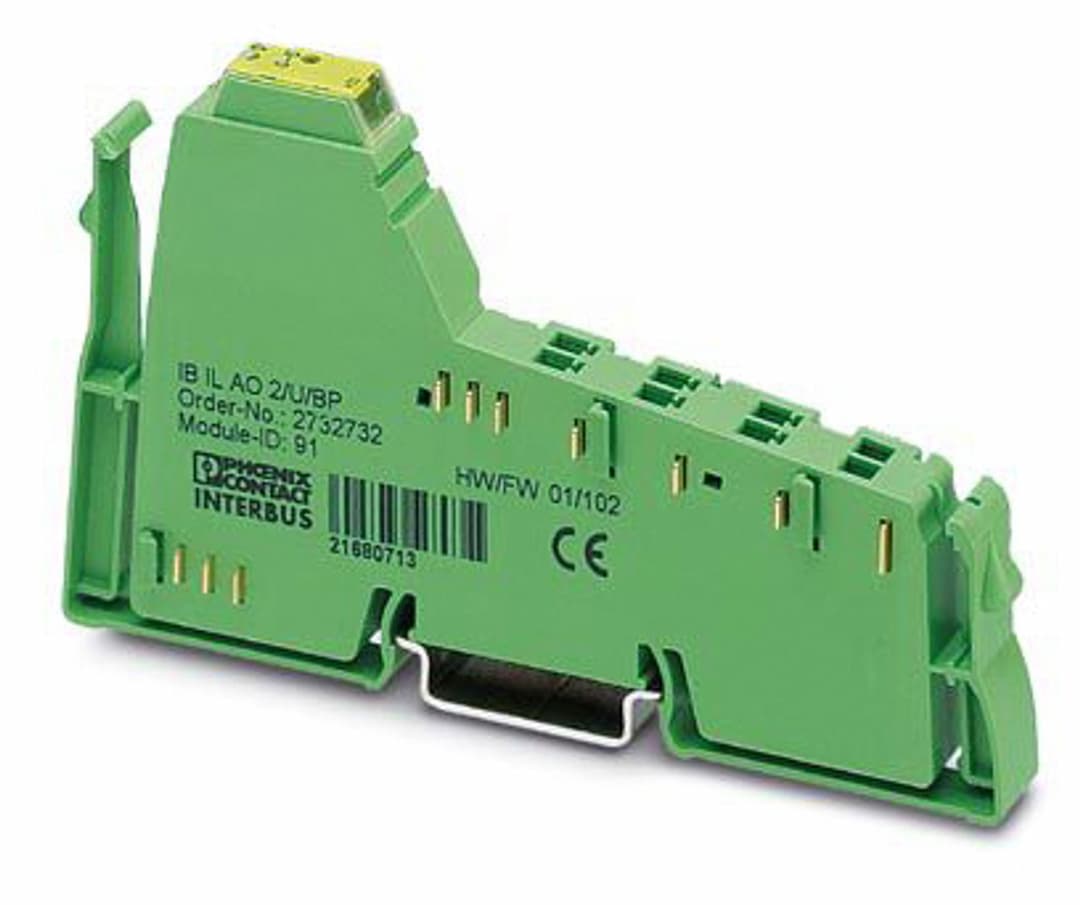

IB IL AO 2/U/BP
Selling Points
- 1Two Analog Output Channels: Output analog voltage signals with precision and reliability.
- 22-Wire Technology: Connect actuators efficiently using 2-wire technology for streamlined operations.
- 3Robust Voltage Ranges: Operate within 0 V to 10 V and ±10 V voltage ranges for versatile applications.
- 4Fast Process Data Update: Update process data in less than 1 ms, ensuring real-time performance.
- 5High Precision and Isolation: Achieve high precision (0.02%) and electrical isolation up to 500 V AC for safe operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular | ID code (dec.) | 91 |
ID code (hex) | 5B | Length code (hex) | 02 |
Length code (dec) | 02 | Process data channel | 32 bit |
Input address area | 4 Byte | Output address area | 4 Byte |
Register length | 32 bit | Required parameter data | 6 Byte |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 40 mA
typ. 33 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 35 mA
typ. 25 mA | Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
Output name | Analog outputs | Connection technology | 2-conductor (shielded) |
Number of outputs | 2 | D/A conversion time | < 100 µs |
Protective circuit | Transient protection of outputs | Data formats | IL, IB ST |
Representation of output values | 16 bits (15 bits + sign) | DAC resolution | 13 bit |
Process data update | < 2 ms | Load/output load current output | > 2 kΩ |
Voltage output signal | 0 V ... 10 V
-10 V ... 10 V | Load/output load voltage output | > 2 kΩ 0.05 % |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
No. of channels | 2 | Connection method | Inline data jumper |
Transmission speed | 500 kbps | Transmission physics | Copper |
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Color | green |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
