Product Model

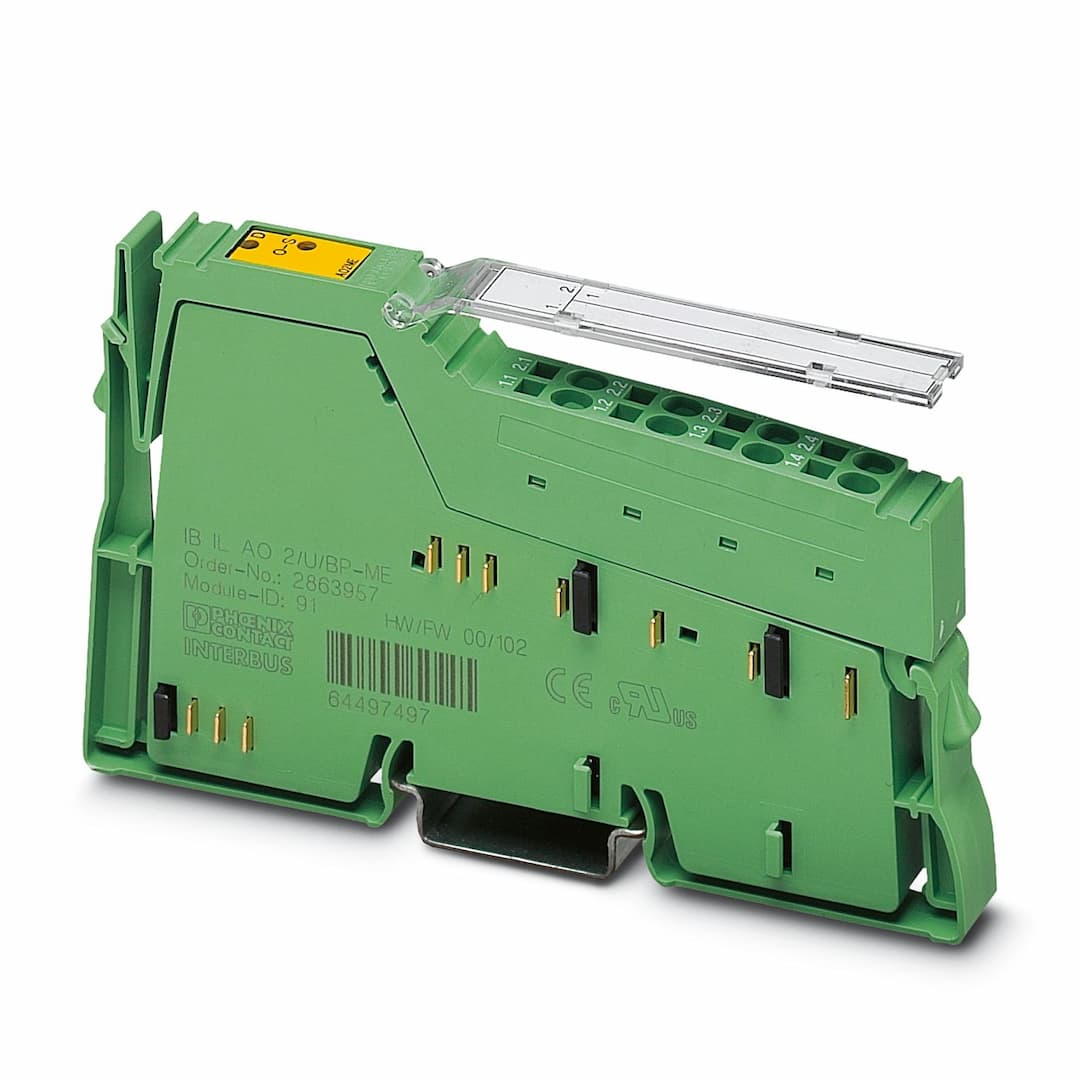

IB IL AO 2/U/BP-ME
Selling Points
- 1High Accuracy Output: 13-bit representation of output values with < 1 ms process data update.
- 2Versatile Connectivity: 2-conductor connection technology for easy sensor connection.
- 3Industrial Grade: Designed for operation in ambient temperatures from -25°C to 55°C and humidity levels from 10% to 95%.
- 4Compact Design: Dimensions of 119.8 mm x 12.2 mm x 71.5 mm for space-efficient installation.
- 5Comprehensive Protection: IP20 degree of protection and compliance with IEC 61140, EN 61140, and VDE 0140-1 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
CCCex note | Use in potentially explosive areas is not permitted in China. | Number of interfaces | 2 |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
Transmission physics | Copper | ID code (dec.) | 91 |
ID code (hex) | 5B | Length code (hex) | 02 |
Length code (dec) | 02 | Process data channel | 32 bit |
Input address area | 4 Byte | Output address area | 4 Byte |
Register length | 32 bit | Required parameter data | 6 Byte |
Required configuration data | 5 Byte | Output name | Analog outputs |
Connection technology | 2-conductor | Number of outputs | 2 |
Data formats | IL, IB ST | Representation of output values | 13 bits (12 bits + sign) |
Process data update | < 1 ms | Voltage output signal | 0 V ... 10 V
-10 V ... 10 V |
Load/output load voltage output | > 2 kΩ 0.02 % | Product type | I/O component |
Product family | Inline | Type | modular |
Scope of delivery | including Inline connector and labeling field | Article revision | 06 |
Maximum power dissipation for nominal condition | 1.15 W | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 40 mA
typ. 33 mA | Supply voltage | 24 V DC (via voltage jumper) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 35 mA (Full load (R
max. 28 mA (No-load)
typ. 25 mA (Full load (R
typ. 18 mA (No-load) |
Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min |
Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
