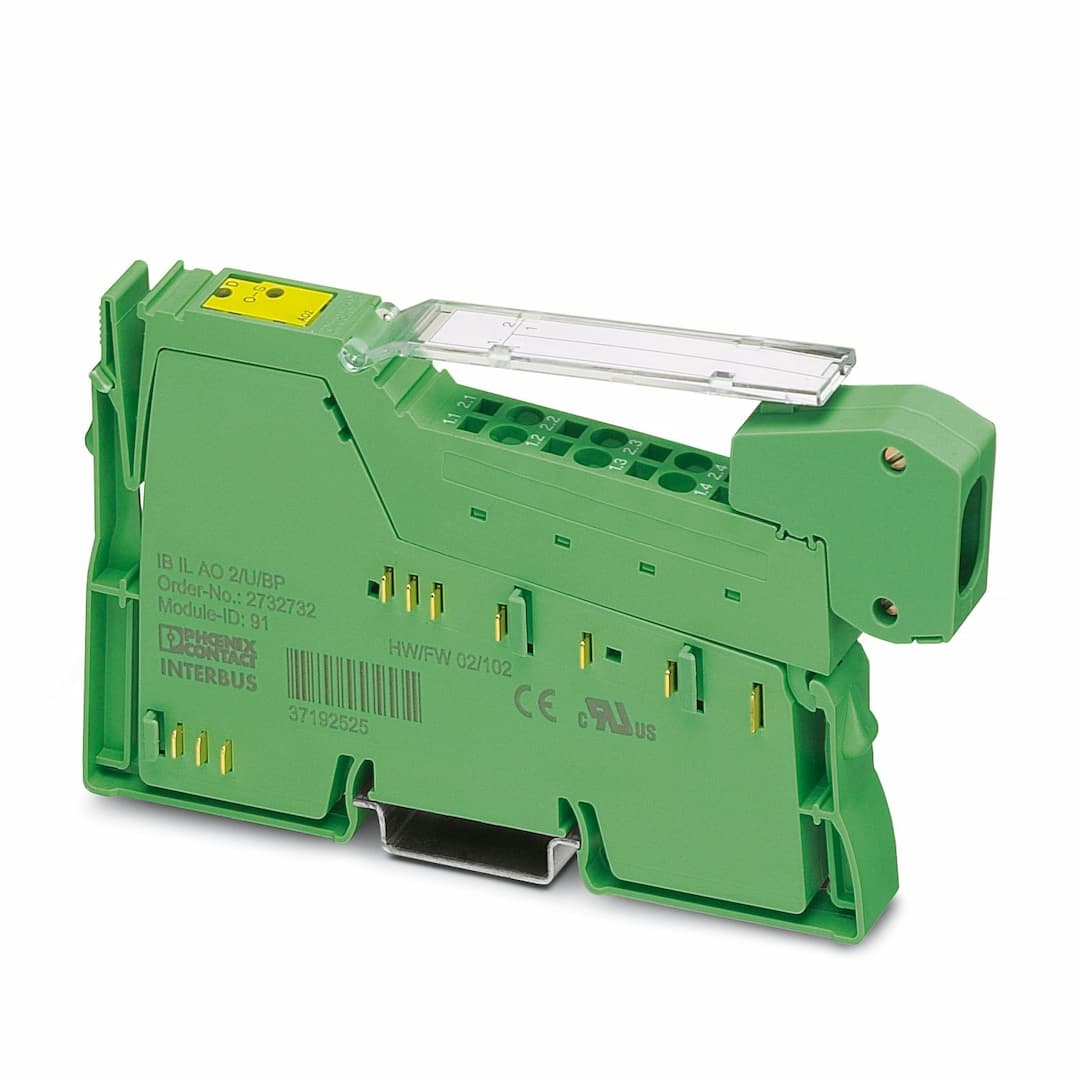

Phoenix Contact IB IL AO 2/U/BP-PAC

Selling Points

  • 1High-Precision Analog Output: Deliver precise analog voltage signals with 2 output channels.
  • 22-Wire Technology Connection: Simplify actuator connections with reliable 2-wire technology.
  • 3Wide Voltage Range: Operate within 0 V to 10 V and ±10 V voltage ranges.
  • 4Fast Data Update: Process data updates in under 1 ms for real-time control.
  • 5Robust Design: Designed for harsh industrial environments with IP20 protection and DIN rail mounting.
Product Details
IB IL AO 2/U/BP-PAC
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Width
12.2 mm
Height
136.8 mm
Depth
71.5 mm
Note on application
Only for industrial use
CCCex note
Use in potentially explosive areas is not permitted in China.
Number of interfaces
2
Connection method
Inline data jumper
Transmission speed
500 kbps
Transmission physics
Copper
ID code (dec.)
91
ID code (hex)
5B
Length code (hex)
02
Length code (dec)
02
Process data channel
32 bit
Input address area
4 Byte
Output address area
4 Byte
Register length
32 bit
Required parameter data
6 Byte
Required configuration data
5 Byte
Output name
Analog outputs
Output description
Single-ended
Connection technology
2-conductor
Note regarding the connection technology
shielded
Number of outputs
2
D/A conversion time
< 100 ns
Protective circuit
Transient protection of outputs
Data formats
IB IL, IB ST
Representation of output values
16 bits (15 bits + sign)
DAC resolution
13 bit
Process data update
< 1 ms
Voltage output signal
0 V ... 10 V -10 V ... 10 V
Load/output load voltage output
> 2 kΩ
Permissible cable length
max. 500 m (The specifications refer to nominal operation after complying with installation instructions. The specifications refer to the following reference cable type: Shielded power station cable: LiYCY; 2 x 2 x 0,5 mm²; VDE0812)
Product type
I/O component
Product family
Inline
Type
modular
Scope of delivery
including Inline connector and labeling field
Diagnostics messages
Failure of or insufficient communications power U
Article revision
10
Overvoltage category
II (IEC 60664-1, EN 60664-1)
Pollution degree
2 (IEC 60664-1, EN 60664-1)
Maximum power dissipation for nominal condition
1.15 W
Supply voltage
7.5 V DC (via voltage jumper)
Current draw
max. 40 mA typ. 33 mA
Supply voltage
24 V DC (via voltage jumper)
Supply voltage range
19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current draw
max. 35 mA (Full load (R max. 28 mA (No-load) typ. 25 mA (Full load (R typ. 18 mA (No-load)
Test voltage: 7.5 V supply (bus logic), 24 V supply U
500 V AC, 50 Hz, 1 min
Test voltage: 7.5 V supply (bus logic), 24 V supply U
500 V AC, 50 Hz, 1 min
Test voltage: 24 V supply (I/O) / functional ground
500 V AC, 50 Hz, 1 min
Connection name
Inline connector
Connection method
Spring-cage connection
Conductor cross section rigid
0.08 mm² ... 1.5 mm²
Conductor cross section flexible
0.08 mm² ... 1.5 mm²
Conductor cross section AWG
28 ... 16
Stripping length
8 mm
Connection method
Spring-cage connection
Conductor cross section, rigid
0.08 mm² ... 1.5 mm²
Conductor cross section, flexible
0.08 mm² ... 1.5 mm²
Conductor cross section AWG
28 ... 16
Stripping length
8 mm
Ambient temperature (operation)
-25 °C ... 55 °C
Degree of protection
IP20
Air pressure (operation)
70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)
70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)
-25 °C ... 85 °C
Permissible humidity (operation)
10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)
10 % ... 95 % (non-condensing)
Protection class
III (IEC 61140, EN 61140, VDE 0140-1)
Mounting type
DIN rail mounting
