Product Model

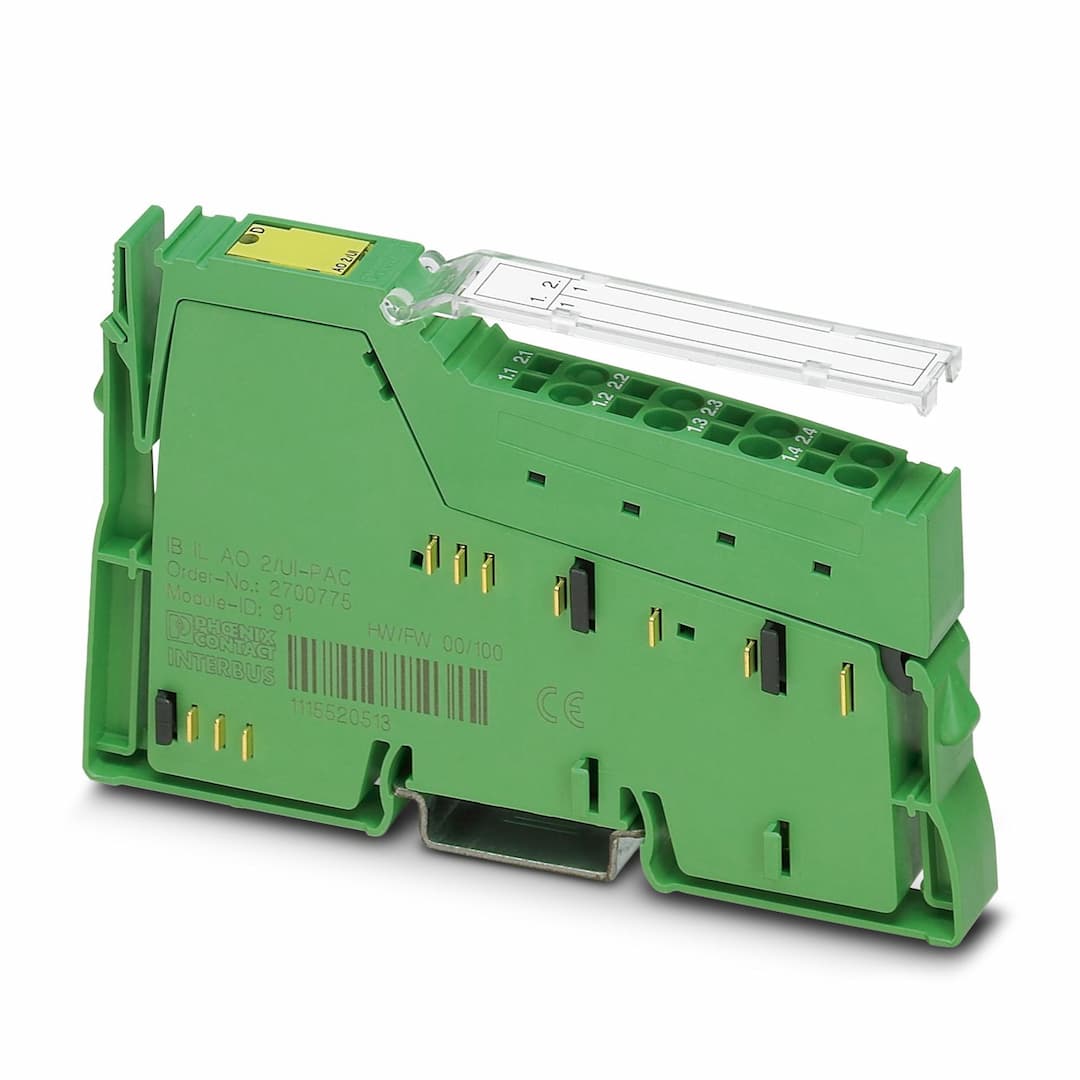

IB IL AO 2/UI-XC-PAC
Selling Points
- 1High-speed transmission at 500 kbps for efficient data transfer.
- 2Compatible with 24 V DC supply voltage via voltage jumper.
- 3Inline local bus connection method for easy integration.
- 4Designed for industrial applications with robust inline data jumper.
- 5Reliable and compact design for PLC and I/O systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Note on application | Only for industrial use | Number of interfaces | 2 |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
Transmission physics | Copper | ID code (dec.) | 91 |
ID code (hex) | 5B | Length code (hex) | 04 |
Length code (dec) | 04 | Process data channel | 64 bit |
Input address area | 8 Byte | Output address area | 8 Byte |
Register length | 64 bit | Required parameter data | 10 Byte |
Required configuration data | 5 Byte | Output name | Analog outputs |
Connection technology | 2-conductor | Note regarding the connection technology | shielded |
Number of outputs | 2 | D/A conversion time | typ. 10 µs |
D/A converter resolution | 12 bit | Protective circuit | Short-circuit and overload protection; Electronic
Transient protection; Suppressor diode |
Data formats | IB IL, S7-compatible | Representation of output values | 12 bits (11 bits + sign bit) |
Process data update | bus-synchronous | Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA
-20 mA ... 20 mA |
Load/output load current output | ≤ 450 Ω | Voltage output signal | 0 V ... 10 V
-10 V ... 10 V |
Load/output load voltage output | > 1 kΩ | Permissible cable length | max. 250 m (The specifications refer to nominal operation after complying with installation instructions. The specifications refer to the following reference cable type: Shielded power station cable: LiYCY; 2 x 2 x 0,5 mm²; VDE0812) |
Product type | I/O component | Product family | Inline |
Type | modular | Scope of delivery | including Inline connector and labeling field |
Special properties | Extreme conditions version | Diagnostics messages | Failure of the internal I/O supply I/O error message sent to the bus coupler
I/O supply failure Message in the diagnostic code (in the IB IL format)
Short circuit/overload of the outputs Message in the diagnostic code (in the IB IL format)
Configuration invalid Message in the diagnostic code (in the IB IL format) |
Article revision | 03 | Overvoltage category | II (IEC 60664-1, EN 60664-1) |
Pollution degree | 2 (IEC 60664-1, EN 60664-1) | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 65 mA
typ. 55 mA | Supply voltage | 24 V DC (via voltage jumper) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 75 mA (Nominal current load (I
max. 30 mA (No-load)
typ. 38 mA (Nominal voltage load (U
max. 45 mA (Nominal voltage load (U
typ. 65 mA (Nominal current load (I
typ. 24 mA (No-load) |
Test voltage: 7.5 V supply (bus logics)/24 V analog supply (analog I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min |
Test voltage: 24 V analog supply (analog I/O)/functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C (Standard)
-40 °C ... 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.) | Degree of protection | IP20 |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
