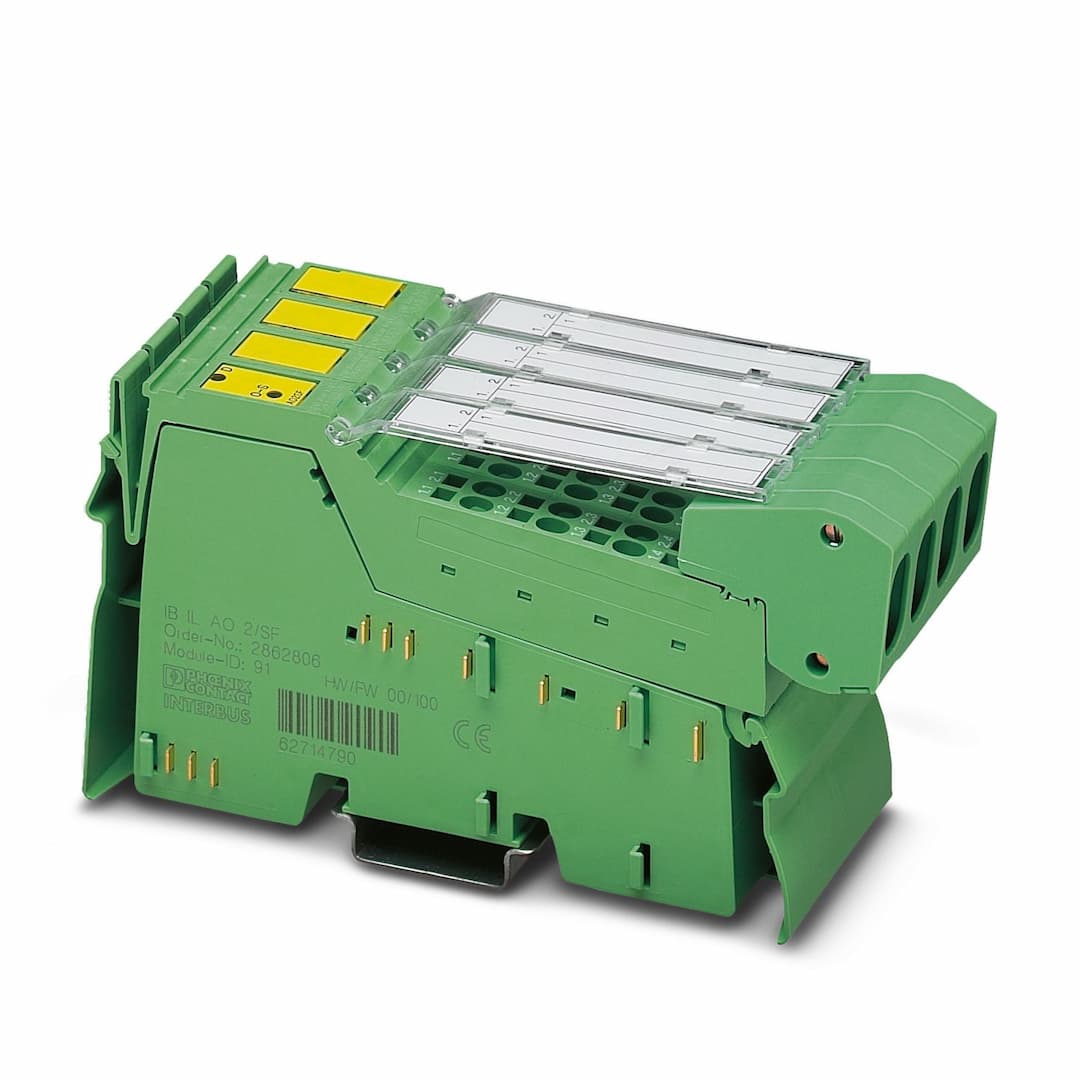

Product Model
IB IL AO 4/8/U/BP-2MBD-PAC
Selling Points
- 18 Analog Bipolar Outputs: Configure channels independently using the bus system.
- 2High-Speed Transmission: 2 Mbps transmission speed for efficient data transfer.
- 3Durable Design: Operates in ambient temperatures from -25°C to 55°C and humidity levels of 10% to 95%.
- 4Compact and Versatile: Mounts on DIN rail with a compact size of 48.8mm x 136.8mm x 71.5mm.
- 5UL Listed and cUL Listed: Meets stringent safety standards for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 136.8 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
Number of interfaces | 2 | Connection method | Inline data jumper |
Transmission speed | 2 Mbps | Transmission physics | Copper |
ID code (dec.) | 223 | ID code (hex) | DF |
Length code (hex) | 05 | Length code (dec) | 05 |
Process data channel | 80 bit | Input address area | 10 Byte |
Output address area | 10 Byte | Register length | 96 bit |
Required parameter data | 27 Byte | Required configuration data | 5 Byte |
Output name | Analog outputs | Connection technology | 2-conductor |
Note regarding the connection technology | shielded | Number of outputs | 8 |
D/A converter resolution | 16 bit | Protective circuit | Transient protection of outputs |
Data formats | IB IL, IB ST, IB RT, standardized representation, S7 compatible | Representation of output values | 16 bits (15 bits + sign) |
Process data update | < 2 ms (depends on operating mode) | Load/output load current output | > 2 kΩ |
Voltage output signal | 0 V ... 10 V
-10 V ... 10 V
0 V ... 5 V
-5 V ... 5 V | Load/output load voltage output | > 2 kΩ 0.05 % |
Product type | I/O component | Product family | Inline |
Type | modular | Scope of delivery | including Inline connectors and marking fields |
Article revision | 05 | Overvoltage category | II (IEC 60664-1, EN 60664-1) |
Pollution degree | 2 (IEC 60664-1, EN 60664-1) | Maximum power dissipation for nominal condition | 2.8 W |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 120 mA
typ. 100 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 95 mA
typ. 72 mA | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
