Product Model

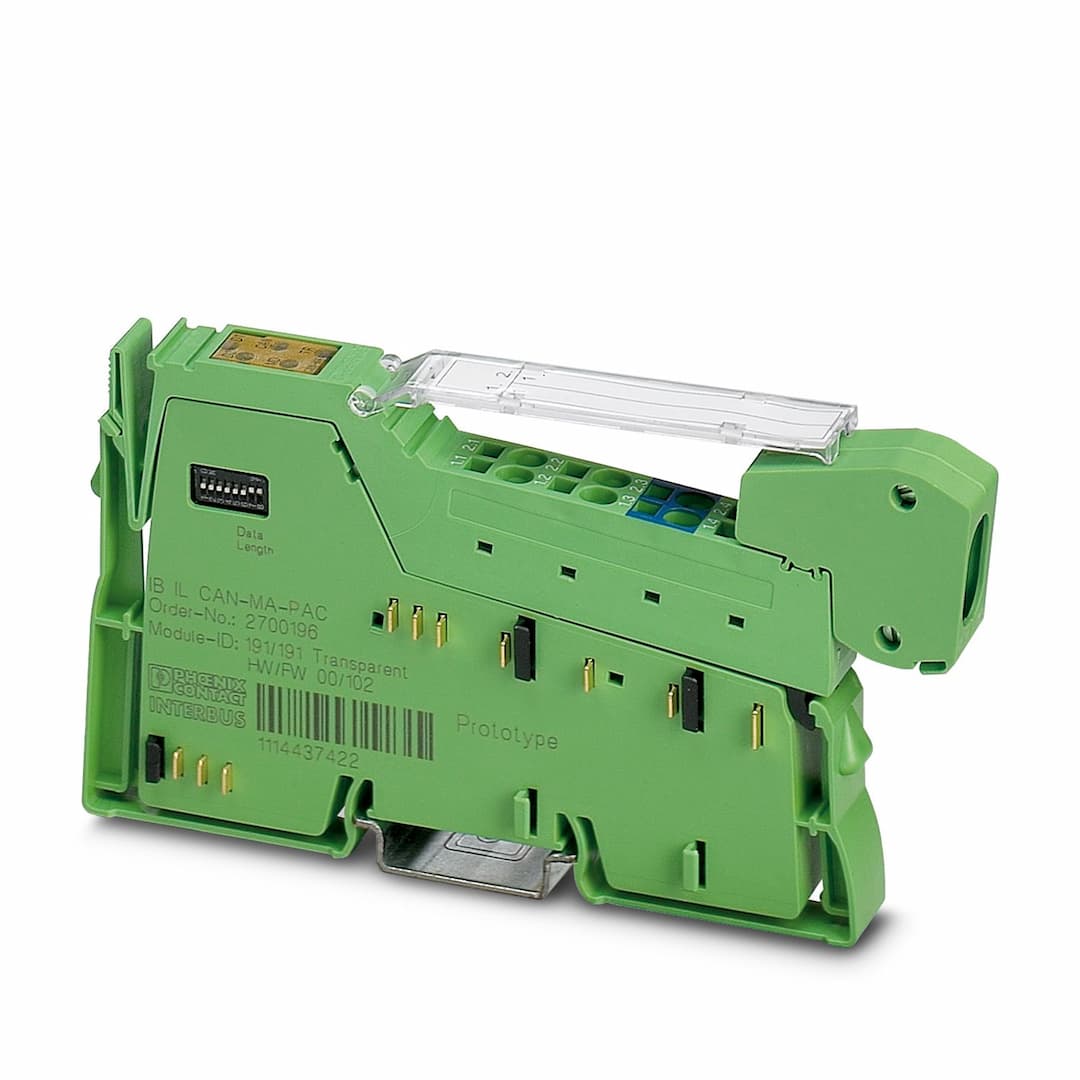

IB IL CAN-MA-PAC
Selling Points
- 1Crafted from premium materials for long-lasting use.
- 2Suitable for various applications, ensuring adaptability in different settings.
- 3Built to withstand rigorous conditions, maintaining its integrity over time.
- 4Delivers superior results in every task, making it a reliable choice.
- 5Designed for effortless upkeep, extending its lifespan and usability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 136.8 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
Number of interfaces | 2 | Connection method | Inline data jumper |
Transmission speed | 500 kbps | Number of interfaces | 1 |
Connection method | Inline shield connector | Transmission speed | 250 kbps |
Protocols supported | CAN | Number of interfaces | 1 (Interface with plugged in memory stick) |
Error messages via the bus | CAN bus voltage faulty
Bus stop | ID code (dec.) | 191 |
ID code (hex) | BF | Length code (hex) | 20 |
Length code (dec) | 32 | Process data channel | 64 Byte |
Input address area | max. 64 Byte | Output address area | max. 64 Byte |
Register length | 64 Byte | Required parameter data | 1 Byte |
Required configuration data | 5 Byte | Product type | I/O component |
Product family | Inline | Type | modular |
Scope of delivery | including Inline connector and labeling field | Operating mode | Process data mode with up to 64 words |
Article revision | 04 | Maximum power dissipation for nominal condition | 1.15 W |
Power dissipation | 0.9 W (Module) | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 115 mA
typ. 110 mA | Supply voltage | 24 V DC (via voltage jumper) |
Current draw | max. 12 mA
typ. 10 mA | Test voltage: 24 V supply U | 500 V AC, 50 Hz, 1 min |
Test voltage: 24 V supply U | 500 V AC, 50 Hz, 1 min | Test voltage: CAN interface/functional ground | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
