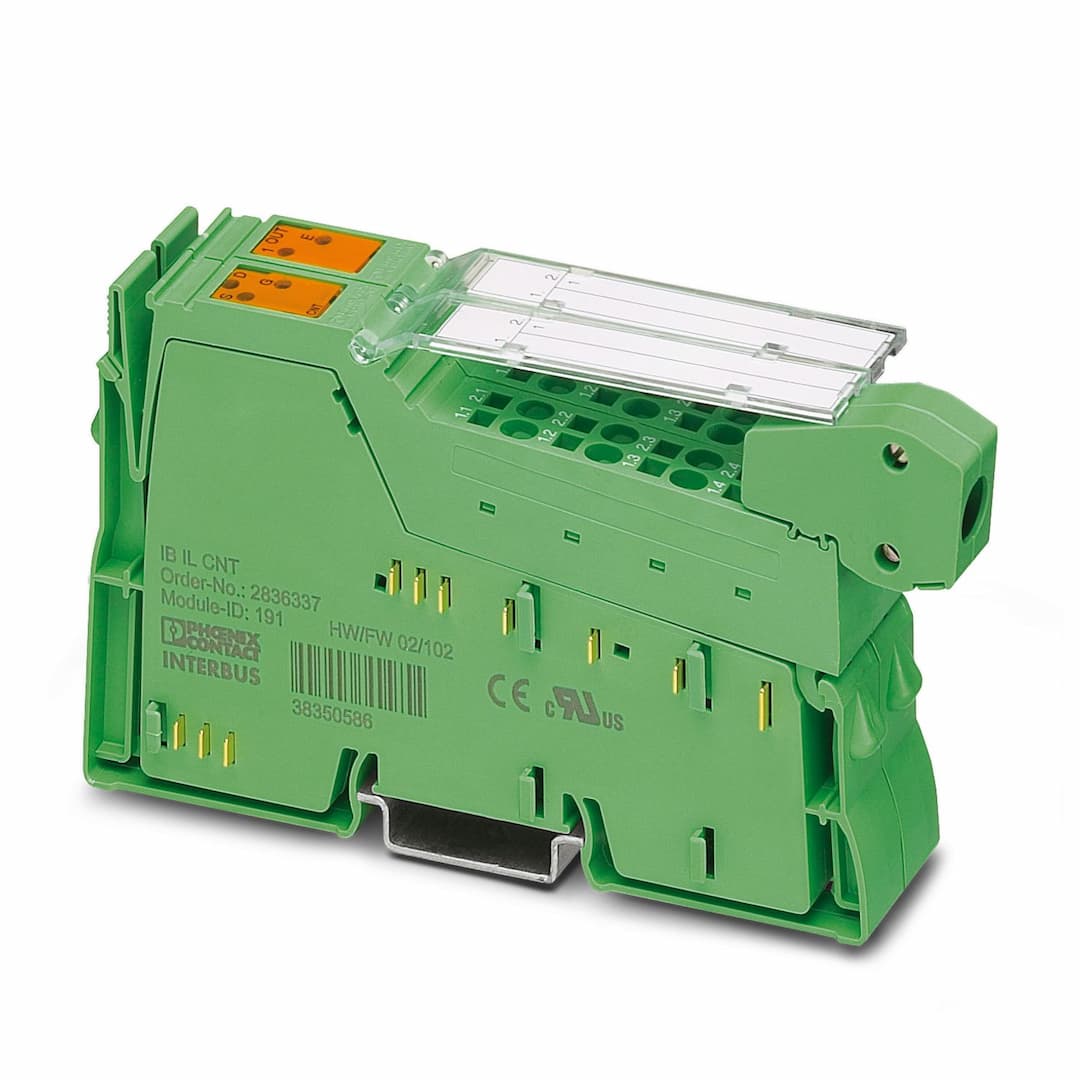

Product Model
IB IL CNT-XC-PAC
Selling Points
- 1High-Speed PLC & IO Interface: Supports 500 kbps transmission speed for efficient data transfer.
- 2Compact Design: Inline local bus configuration for space-saving installations.
- 3IP20 Protection: Ensures reliable operation in harsh industrial environments.
- 4Versatile Connectivity: Includes 1 counter input, 1 control input, and 1 output for diverse applications.
- 5Durable Construction: Built with high-quality materials for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 24.4 mm | Height | 135 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
Number of interfaces | 2 | Connection method | Inline data jumper |
Transmission speed | 500 kbps | Transmission physics | Copper |
ID code (dec.) | 191 | ID code (hex) | BF |
Length code (hex) | 02 | Length code (dec) | 02 |
Process data channel | 32 bit | Input address area | 4 Byte |
Output address area | 4 Byte | Register length | 4 Byte |
Required parameter data | 1 Byte | Required configuration data | 5 Byte |
Input name | Counter input for 24 V signals | Connection method | Spring-cage connection |
Connection technology | 2-, 3-conductor | Number of inputs | 1 (only one counter input can be used, either for 24 V or for 5 V signals) |
Operating mode | Event counting, frequency/time measurement | Input voltage | 24 V DC (Nominal voltage)
30 V DC (maximum) |
Input voltage range "0" signal | 0 V DC ... 5 V DC | Input voltage range "1" signal | 15 V DC ... 30 V DC |
Input frequency | max. 100 kHz | Input current | typ. 5 mA |
Input resistance | approx. 5.7 kΩ | Input name | Counter input for 5 V signals |
Connection method | Spring-cage connection | Connection technology | 2-conductor (shielded), external 5 V supply |
Number of inputs | 1 (only one counter input can be used, either for 24 V or for 5 V signals) | Operating mode | Event counting, frequency/time measurement |
Input voltage | 5 V DC (Nominal voltage)
8 V DC (maximum) | Input voltage range "0" signal | 0 V ... 1.5 V |
Input voltage range "1" signal | 3.5 V ... 8 V | Input frequency | max. 100 kHz |
Input current | typ. 5 mA | Input resistance | approx. 1.7 kΩ |
Output name | Switching output | Connection method | Spring-cage connection |
Connection technology | 2-conductor | Number of outputs | 1 |
Protective circuit | Short-circuit protection; Yes, short-circuit-proof (automatically switched on again)
Overload protection | Output voltage | 24 V DC (Nominal voltage) |
Output current | max. 0.5 A (Nominal current) | Nominal load, inductive | max. 12 VA (1.2 H, 48 Ω) |
Nominal load, lamp | max. 12 W | Nominal load, ohmic | max. 12 W (48 Ω) |
Reverse voltage resistance to short pulses | Reverse voltage proof | Behavior in the event of ohmic overload | Auto restart after eliminating the overload |
Behavior with inductive overload | Output can be destroyed | Behavior in the event of lamp overload | Auto restart after eliminating the overload |
Overcurrent shut-down | min. 0.7 A | Product type | I/O component |
Product family | Inline | Type | modular |
Scope of delivery | including Inline connectors and marking fields | Operating mode | Process data operation with 2 words |
Special properties | Extreme conditions version | Diagnostics messages | Sensor supply short-circuit
Sensor supply overload |
Article revision | 02 | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 50 mA
typ. 40 mA | Power consumption | max. 0.375 W (at U |
Supply voltage | 24 V DC (via voltage jumper) | Current draw | max. 1 A
min. 0 A (without connected peripherals) |
Designation | Power supply for sensors | Supply voltage | 24 V DC (generated from segment supply U |
Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min |
Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C (Standard)
-40 °C ... 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.) | Degree of protection | IP20 |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
