Product Model

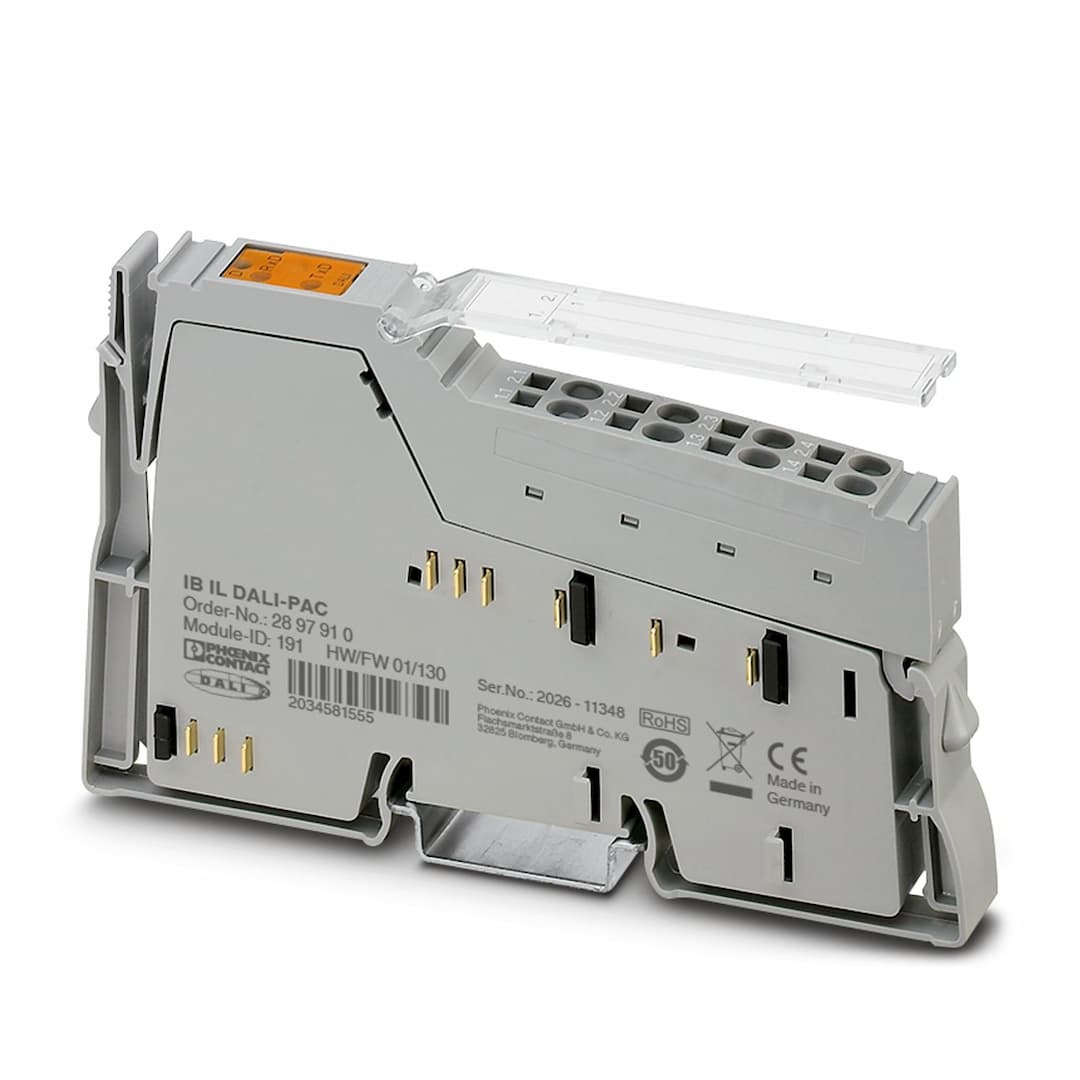

IB IL DALI-PAC
Selling Points
- 1DALI Master Control: Control up to 63 DALI control gears with precision.
- 2Extension Terminal: Extension for IB IL DALI/PWR-PAC, ideal for Inline stations.
- 3Protected Bus: DALI bus protected against unintentional connection of mains voltage (up to 250 V AC).
- 4Diagnostic Indicators: Includes diagnostic and status indicators for easy monitoring.
- 5Compact Design: Compact dimensions (12.2mm x 119.8mm x 71.5mm) for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Note on application | Only for industrial use | Connection method | Inline data jumper |
Transmission speed | 500 kbps | Designation | DALI |
Connection method | Inline connector | Supply voltage | typ. 14 V DC (Bus voltage) |
Output current with short-circuit | max. 250 mA | Current carrying capacity | max. 128 mA (Bus load: observe the derating of terminal IB IL DALI/PWR-PAC.) |
Transmission speed | 1200 bps | Type of protection | Bus protected up to 250 V AC, maximum |
ID code (dec.) | 191 | ID code (hex) | BF |
Length code (hex) | 02 | Length code (dec) | 02 |
Process data channel | 32 bit | Input address area | 4 Byte |
Output address area | 4 Byte | Register length | 32 bit |
Required parameter data | 1 Byte | Required configuration data | 5 Byte |
Product type | I/O component | Product family | Inline |
Type | modular | Scope of delivery | including Inline connector and labeling field |
No. of channels | 1 | Special properties | Extension for IB IL DALI/PWR-PAC |
Article revision | 02 | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 38 mA | Current draw | max. 128 mA |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² | Conductor cross section AWG | 24 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 60 °C (Observe derating when using terminal IB IL DALI/PWR-PAC, see data sheet DB EN IB IL DALI/PWR-PAC.) |
Degree of protection | IP20 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
