Product Model

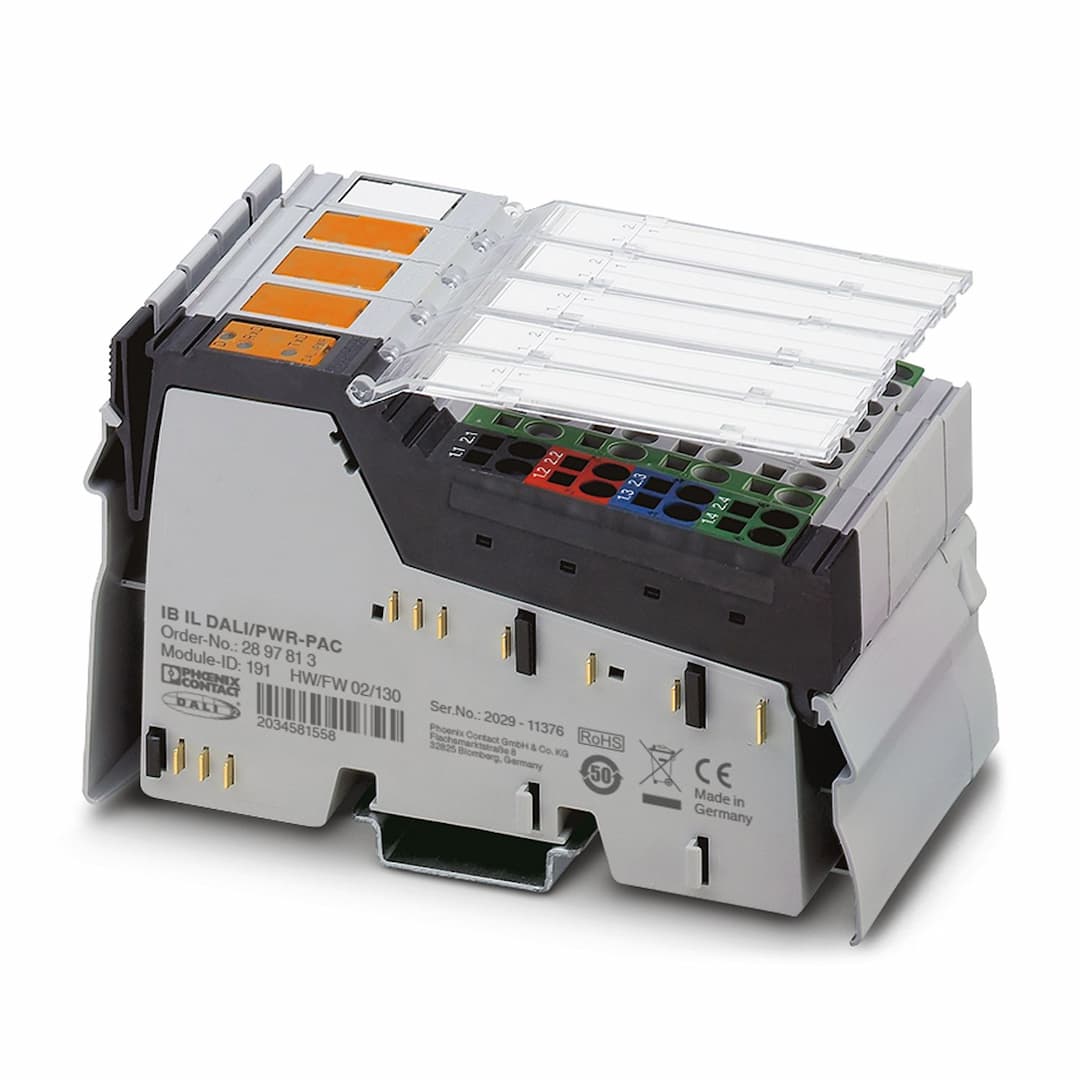

IB IL DALI/PWR-PAC
Selling Points
- 1The IB IL DALI/PWR-PAC includes a built-in power supply for seamless operation.
- 2Ensures the DALI bus is protected against accidental connection of mains voltage up to 250 V AC.
- 3Supports transmission speeds of 500 kbps in the local bus.
- 4Equipped with indicators for diagnostics, transmission, and reception.
- 5Can be extended with up to three additional IB IL DALI-PAC DALI masters for increased control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Note on application | Only for industrial use | Connection method | Inline data jumper |
Transmission speed | 500 kbps | Designation | DALI |
Connection method | Inline connector | Supply voltage | typ. 14 V DC (Bus voltage) |
Output current with short-circuit | max. 250 mA | Current carrying capacity | max. 128 mA (Bus load; observe derating when using DALI extension terminals.) |
Transmission speed | 1200 bps | Type of protection | Bus protected up to 250 V AC, maximum |
Number of local bus devices that can be connected | 3 (DALI extension terminals) | ID code (dec.) | 191 |
ID code (hex) | BF | Length code (hex) | 02 |
Length code (dec) | 02 | Process data channel | 32 bit |
Input address area | 4 Byte | Output address area | 4 Byte |
Register length | 32 bit | Required parameter data | 1 Byte |
Required configuration data | 5 Byte | Product type | I/O component |
Product family | Inline | Type | modular |
Scope of delivery | including Inline connectors and marking fields | No. of channels | 1 |
Special properties | integrated DALI power supply unit
safe electrical isolation | Article revision | 03 |
Maximum power dissipation for nominal condition | 10.6 W | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 38 mA | Supply voltage | 24 V DC (via voltage jumper) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 441 mA |
Current draw | max. 128 mA | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 1.5 mm² | Conductor cross section AWG | 24 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 60 °C (Observe derating when using DALI extension terminals.) | Degree of protection | IP20 |
Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
