Product Model

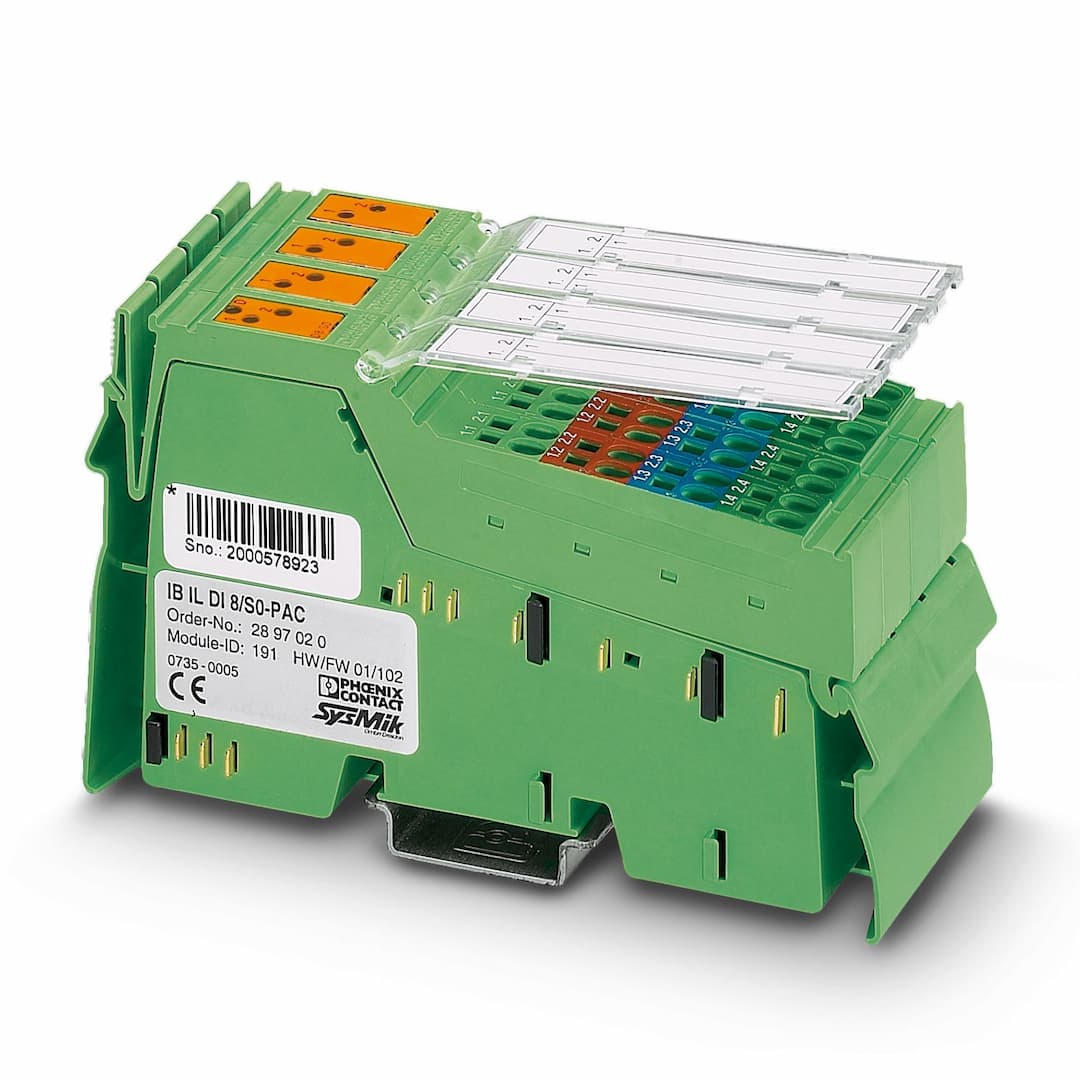

IB IL DI 8/S0-PAC
Selling Points
- 1Compliant with DIN 43864 and IEC 62053-31: Ensures compatibility with standard interfaces.
- 28 Digital Inputs: Supports multiple counting pulses from impulse encoders.
- 3Robust Design: Built to withstand industrial environments with dimensions of 119.8 x 48.8 x 71.5 mm.
- 4Wide Operating Temperature Range: Operates between -25°C to +55°C, suitable for various industrial settings.
- 5DIN Rail Mounting: Easy installation on DIN rail for efficient use in inline stations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Note on application | Only for industrial use | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
ID code (dec.) | 191 | ID code (hex) | BF |
Length code (hex) | 02 | Length code (dec) | 02 |
Process data channel | 32 bit | Input address area | 4 Byte |
Output address area | 4 Byte | Register length | 4 Byte |
Required parameter data | 1 Byte | Required configuration data | 5 Byte |
Input name | Digital inputs | Description of the input | IEC 62053-31 and DIN 43864 |
Number of inputs | 8 (S0 counter inputs) | Connection method | Spring-cage connection |
Connection technology | 4-conductor | Input voltage | 24 V DC |
Nominal input voltage U | 24 V DC | Nominal input current at U | 9 mA |
Sensor current per channel | max. 250 mA | Product type | I/O component |
Product family | Inline | Type | modular |
Scope of delivery | including Inline connectors and marking fields | No. of channels | 8 |
Operating mode | Process data mode with two words | Article revision | 03 |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 55 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 2 A (incl. sensor supply)
max. 70 mA (without sensor supply, inputs active) | Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min |
Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
