Product Model

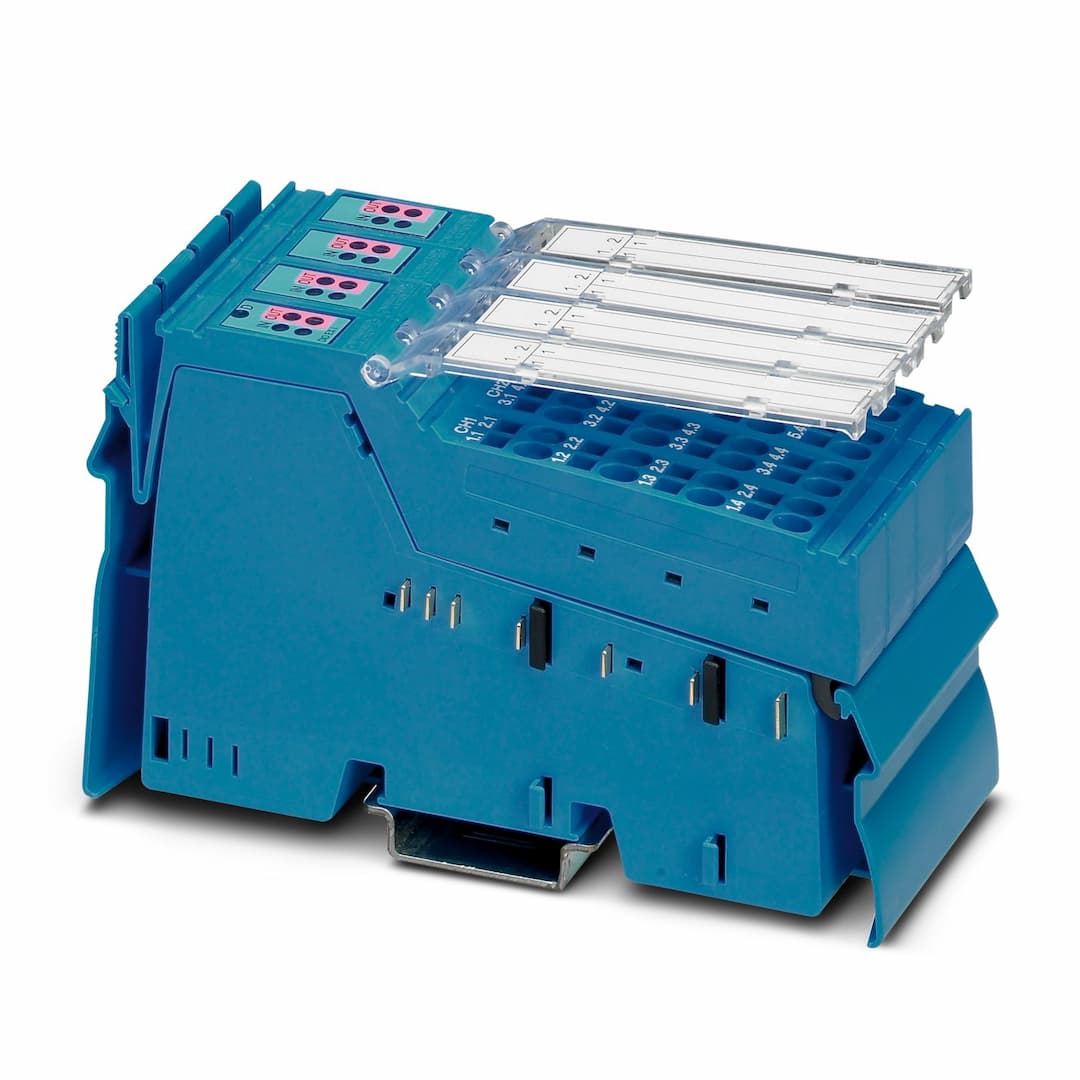

IB IL EX-IS DIO 4/NAM-PAC
Selling Points
- 14 configurable input/output channels for versatile applications.
- 2Supports NAMUR sensors (EN 60947-5-6) for precise measurement.
- 3Single-channel diagnostics ensure reliable operation.
- 48.2 V sensor supply for efficient power management.
- 5Compact dimensions (48.8 mm x 119.8 mm x 71.5 mm) for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 119.8 mm |
Depth | 71.5 mm | CCCex note | Use in potentially explosive areas is not permitted in China. |
Color | blue | Connection method | Inline data jumper |
Transmission speed | 500 kbps | ID code (hex) | none |
Input name | Digital inputs | Description of the input | Can be configured as input or output |
Number of inputs | 4 | Connection method | Inline connector |
Connection technology | 2-conductor | Protective circuit | Polarity protection, surge protection |
Output name | Digital outputs | Output description | Digital passive output |
Connection method | Inline connector | Connection technology | 3-conductor |
Number of outputs | 4 | Protective circuit | Polarity protection, surge protection |
Output voltage | 24 V | Nominal output voltage | 24 V DC |
Product type | I/O component | Product family | Inline |
Type | modular
Inline | No. of channels | 4 |
Article revision | 04 | Power consumption | 4.8 W (per channel) |
Supply voltage | 5 V DC (via voltage jumper) | Current draw | max. 50 mA |
Supply voltage | 28 V DC | Current draw | max. 190 mA |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 60 °C |
Degree of protection | IP20 | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 70 °C | Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | ATEX | II 3(1)GD Ex ec [ia Ga Da] IIC T4 Gc Sira 09ATEX2339X |
IECEx | Ex ec [ia Ga Da] IIC T4 Gc IECEx SIR 10.0033X | UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D |
Mounting type | DIN rail mounting | Max. output voltage U | max. 28 V DC (Output)
max. 11.76 V DC (Input) |
Max. output current I | max. 109 mA (Output)
max. 15.3 mA (Input) | Max. output power P | max. 757 mW (Output)
max. 44.8 mW (Input) |
Safety-related maximum voltage U | 28 V DC | IIC (A, B) (Output): Max. external inductivity L | 1.015 mH / 0.083 µF |
IIB, [IIIC, IIIB] (C, E, F, G) (Output): Max. external inductivity L | 3.045 mH / 0.625 µF | IIA (D) (Output): Max. external inductivity L | 8.12 mH / 2.15 µF |
IIC (A, B) (Input): Max. external inductivity L | 1.52 mH / 1.5 µF | IIB, [IIIC, IIIB] (C, E, F, G) (Input): Max. external inductivity L | 4.56 mH / 9.9 µF |
IIA (D) (Input): Max. external inductivity L | 21.1 mH / 39 µF |
Specifications may be subject to change without notice
