Product Model

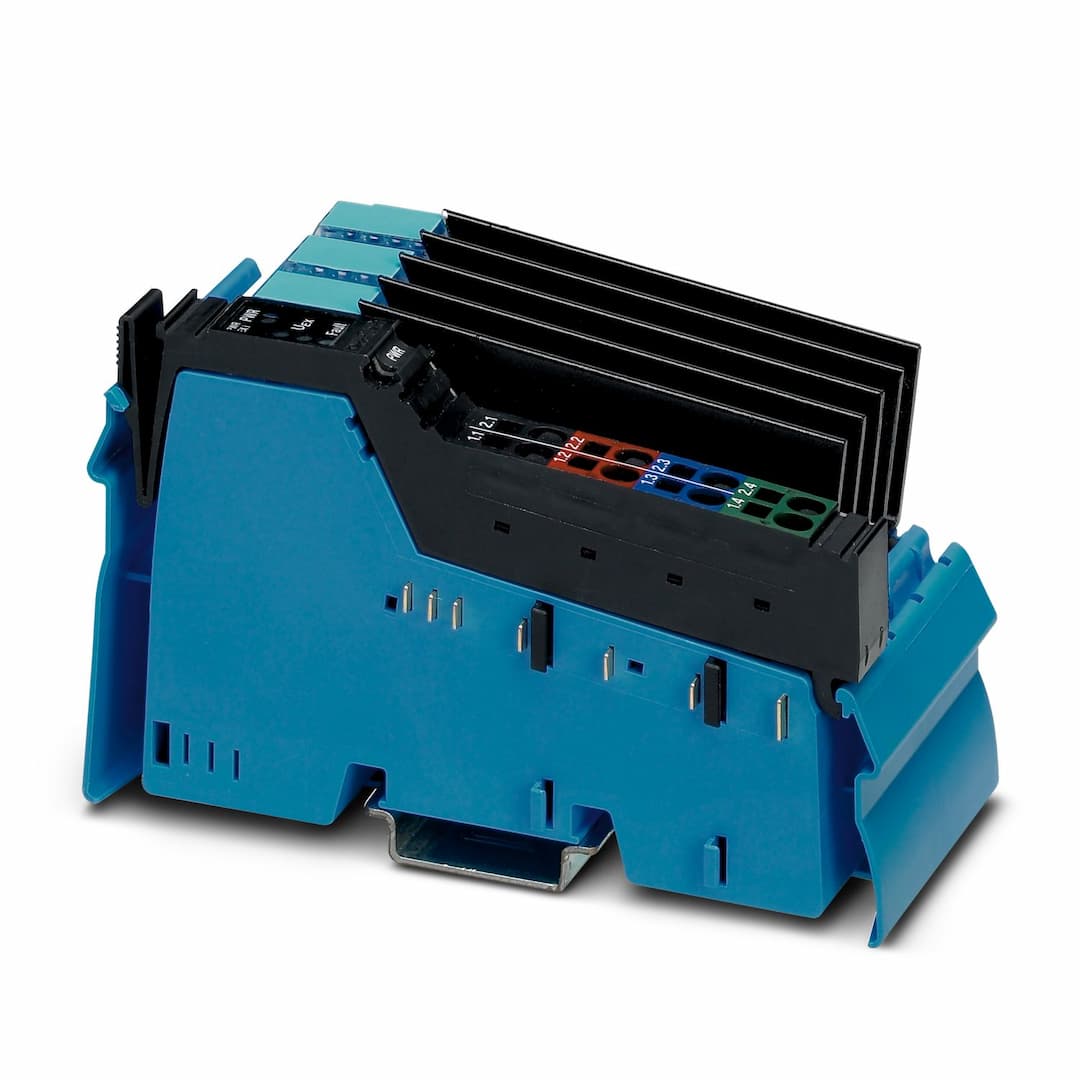

IB IL EX-IS PWR IN-PAC
Selling Points
- 1Supplies 24 V DC via inline connector with a voltage range of 19.2 V to 30 V DC.
- 2Features surge protection, suppressor diode, and overload protection for safe operation.
- 3Supports up to 8 A total current (4 A in potentially explosive areas) for reliable power distribution.
- 4Easy to integrate into Inline stations with transmission speeds of 500 kbps or 2 Mbps.
- 5Meets ATEX Directive 2014/34/EU for use in potentially explosive areas and ensures electrical isolation between UM and US supplies.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 119.9 mm |
Depth | 70.4 mm | CCCex note | Use in potentially explosive areas is not permitted in China. |
Color | blue | Connection method | Inline data jumper |
Transmission speed | 500 kbps | Product type | I/O component |
Product family | Inline | Type | modular
Inline |
Article revision | 04 | Power consumption | max. 8 W |
Supply voltage | 24 V DC (via Inline connector) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 1.5 A
max. 2 A | Supply voltage | 5 V DC (via voltage jumper) |
Supply voltage | 28 V DC ±5 % | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 60 °C |
Degree of protection | IP20 | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) | Protection class | III (VDE 0106, IEC 60536) |
ATEX | II 3G Ex ec IIC T4 Gc Sira 10ATEX2130X | IECEx | Ex ec IIC T4 Gc IECEx SIR 10.0085X |
UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D, T4 | Mounting type | DIN rail mounting |
Safety-related maximum voltage U | 253 V |
Specifications may be subject to change without notice
