Product Model

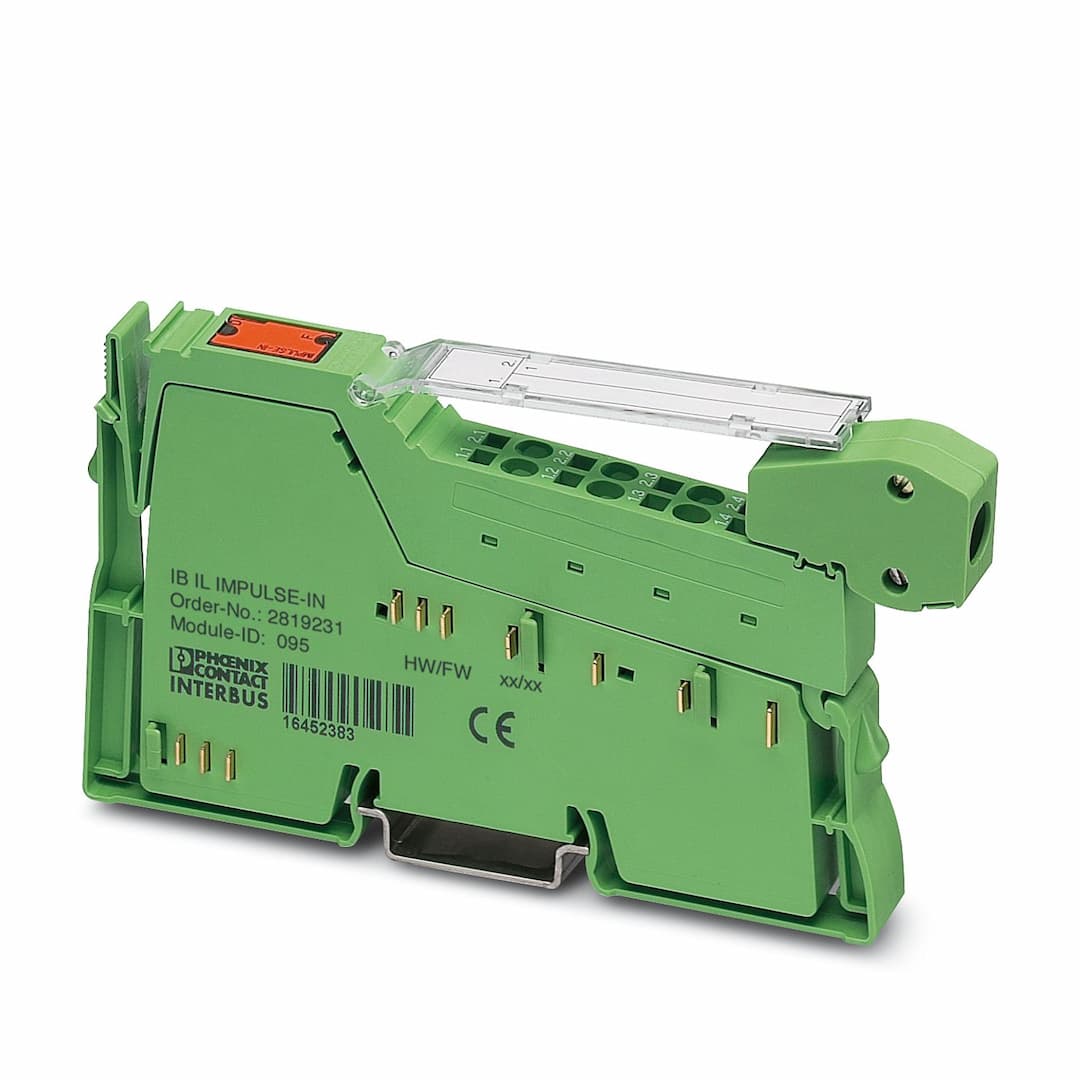

IB IL IMPULSE-IN-2MBD
Selling Points
- 1Supports incremental encoders with symmetrical and asymmetrical signals.
- 2Three digital inputs for connecting limit switches or home position switches.
- 3Precise evaluation via 1x, 2x, or 4x sampling.
- 4Direction of rotation indicator via LED.
- 5Transmission speed of 2 Mbps via inline local bus.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Color | green |
Connection method | Inline data jumper | Transmission speed | 2 Mbps |
ID code (dec.) | 95 | ID code (hex) | 5F |
Length code (hex) | 02 | Length code (dec) | 133 |
Process data channel | 32 bit | Input address area | 4 Byte |
Output address area | 4 Byte | Register length | 32 bit |
Required parameter data | 6 Byte | Number of inputs | 1 |
Common mode voltage range signal - ground | -10 V ... 13.2 V | Length measuring range | > 0 mm ... 3850 mm (Resolution: 5 µm) |
Ultra-sound speed (gradient) | 2500 m/s ... 2999.99 m/s (Firmware 1.22 and higher)
2750 m/s ... 2898 m/s (Firmware 1.21 and higher) | Product type | I/O component |
Product family | Inline | Type | modular |
Encoder supply voltage | 24 V | Encoder supply current | max. 250 mA |
Supply voltage | 7.5 V (via voltage jumper) | Current draw | max. 100 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | typ. 150 mA (with connected sensor) | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 55 °C |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % |
Permissible humidity (storage/transport) | 75 % ... 85 % | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
