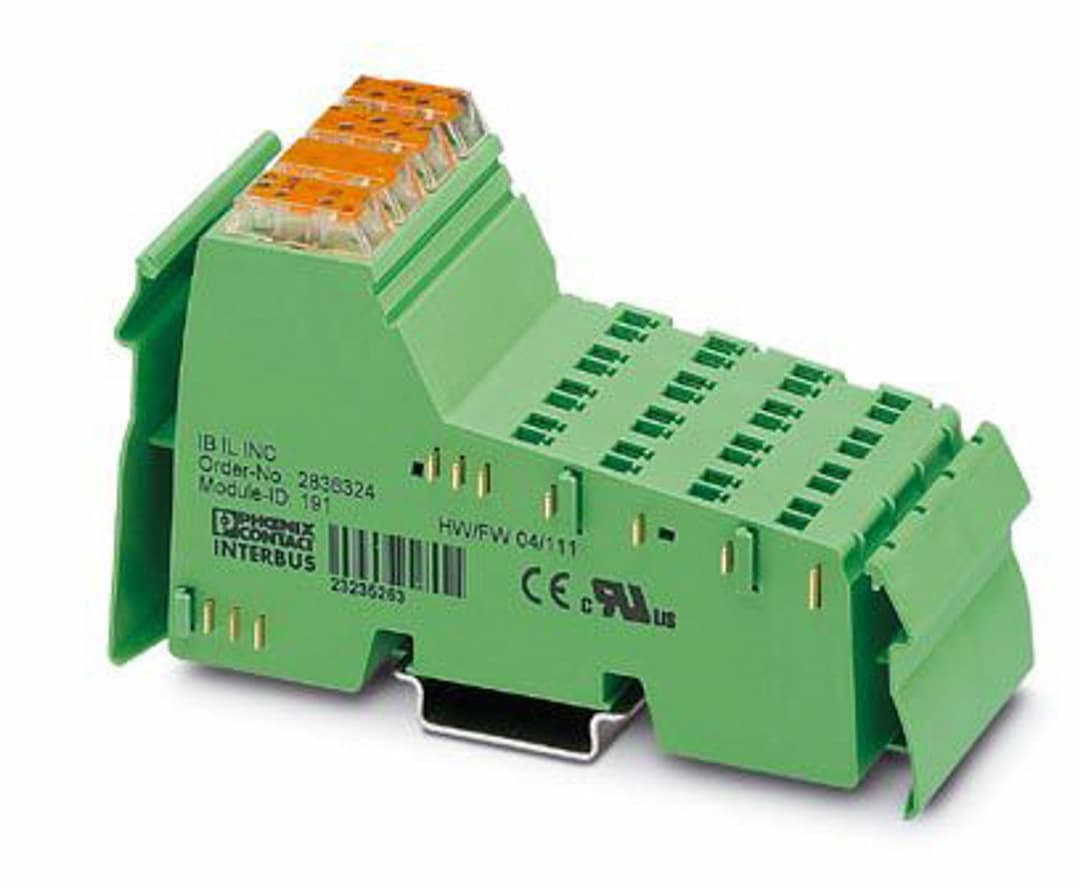

Product Model
IB IL INC
Selling Points
- 116 Digital Sensor Connections: Connect up to 16 digital sensors using 2 and 3-wire technology.
- 2Diagnostic Indicators: Monitor status with built-in diagnostic and status indicators.
- 3High Load Capacity: Supports a maximum permissible load current per sensor of 250 mA.
- 4Robust Design: Operates within a wide temperature range (-25°C to +55°C) and humidity levels (10% to 95%).
- 5Compact Size: Measures 48.8 mm x 120 mm x 71.5 mm, weighing 122 g without connectors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular | ID code (hex) | 191 |
Register length | 32 bit | Required parameter data | 6 Byte |
Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min
7.5 V supply (bus logic)/functional ground of the encoder supply 500 V AC 50 Hz 1 min
24 V supply (I/O)/functional ground of the encoder supply 500 V AC 50 Hz 1 min
24 V supply (I/O)/functional ground of the encoder supply 500 V AC 50 Hz 1 min
Functional ground of the encoder supply/functional ground 500 V AC 50 Hz 1 min | Drawing encoder supply voltage | Main circuit U |
Encoder supply voltage | 5 V DC (sym./asym.)
24 V DC (Only asymmetrical encoders) | Encoder supply current | 500 mA
500 mA |
I/O voltage | 24 V DC (via voltage jumper) | I/O voltage range | 19.2 V DC ... 30 V DC |
Residual ripple | ± 1.2 V | Max. current consumption | 110 mA |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 110 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 1 A | Supply voltage | 24 V DC (via voltage jumper) |
Current draw | max. 2 A | Number of inputs | 4 |
Input voltage | 24 V DC | Input voltage range "0" signal | -30 V DC ... 5 V DC |
Input voltage range "1" signal | 13 V DC ... 30 V DC | Connection method | Inline connector |
Connection technology | 3-conductor | Number of inputs | 1 |
Input frequency (5 V) | 0 Hz ... 500 kHz (symmetrical) | Input frequency (24 V) | 0 Hz ... 50 kHz (asymmetrical) |
Encoder signals | symmetrical encoders according to EIA-422 and asymmetrical encoders | Number of inputs | 3 |
Number of outputs | 4 | Output voltage | 24 V DC |
Protective circuit | electronic short-circuit / overload protection | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Connection method | Inline data jumper |
Transmission speed | 500 kbps | Transmission physics | Copper |
Width | 48.8 mm | Height | 119.8 mm |
Depth | 71.5 mm | Degree of protection | IP20 |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
