Product Model

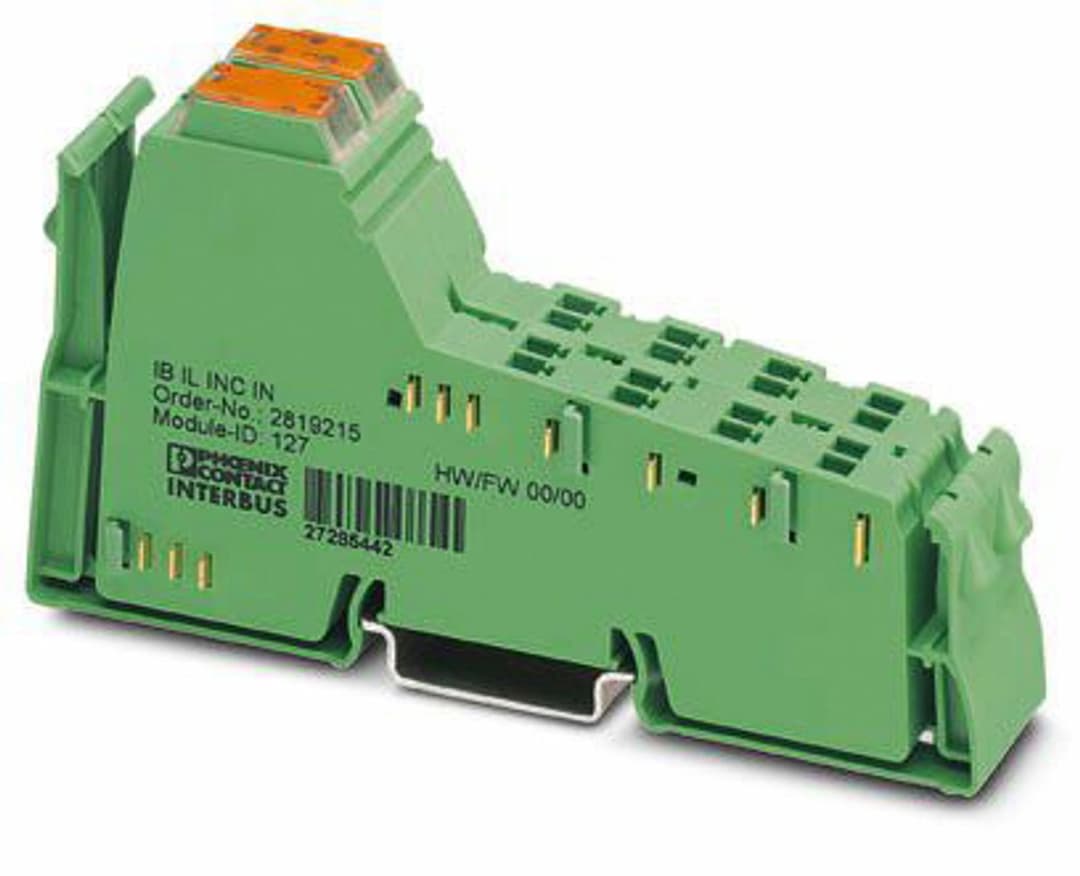

IB IL INC-IN
Selling Points
- 1Supports symmetrical and asymmetrical incremental encoders.
- 2Supplies 5 V DC and 24 V DC for encoder operation.
- 3Equipped with 3 digital inputs for limit switches and home position switch.
- 4Offers open circuit detection and maximum input frequency of 300 kHz.
- 5Includes direction of rotation indicator via LED for precise evaluation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
ID code (hex) | 127 | Register length | 32 bit |
Required parameter data | 1 Byte | Test section | 7.5 V supply (bus logics), I/O 500 V AC 50 Hz 1 min
7.5 V supply (bus logic)/functional ground 500 V AC 50 Hz 1 min
24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min |
Drawing encoder supply voltage | Main circuit U | Encoder supply voltage | 5 V DC
24 V DC |
Encoder supply current | max. 250 mA | I/O voltage | 500 V AC (test voltage) |
Typical current consumption | 70 mA | Supply voltage | 7.5 V (via voltage jumper) |
Current draw | max. 70 mA | Supply voltage | 24 V DC (via voltage jumper) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 1 A
typ. 340 mA |
Number of inputs | 3 | Input voltage range "0" signal | -30 V DC ... 5 V DC |
Input voltage range "1" signal | 15 V DC ... 30 V DC | Connection method | Inline connector |
Connection technology | 3-conductor | Number of inputs | 1 |
Input frequency (5 V) | 0 kHz ... 300 kHz | Input frequency (24 V) | 0 Hz ... 300 kHz |
Encoder signals | symmetrical encoders according to EIA-422 and asymmetrical encoders | Number of inputs | 3 |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
Transmission physics | Copper | Width | 24.4 mm |
Height | 119.8 mm | Depth | 71.5 mm |
Color | green | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 55 °C | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 75 % ... 85 % | Permissible humidity (storage/transport) | 75 % ... 85 % |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
