Product Model

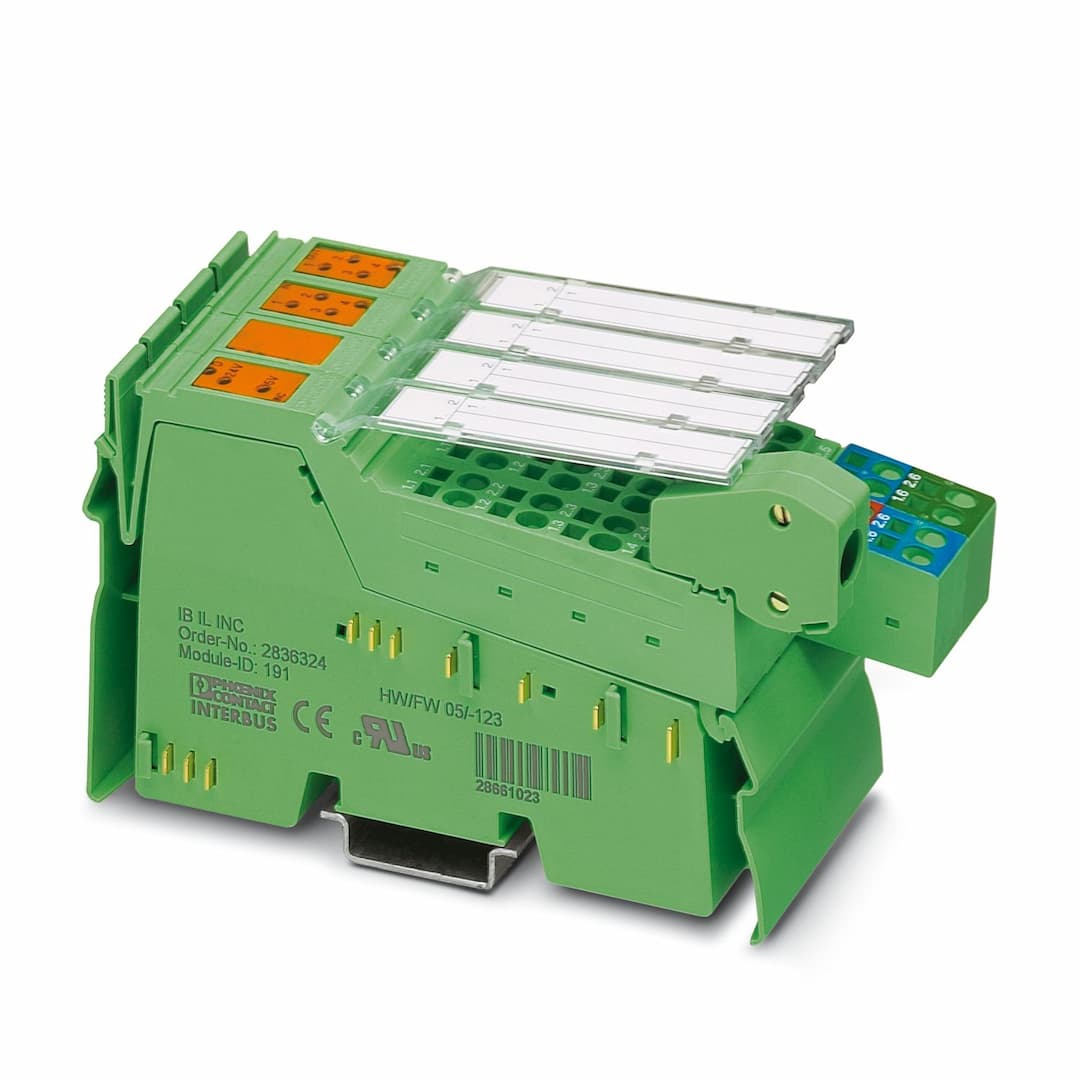

IB IL INC-PAC
Selling Points
- 1Complete with accessories (connector and marking field) for easy integration.
- 2Equipped with 1 incremental encoder input for precise measurement.
- 3Includes 4 digital inputs 24 V DC for versatile control options.
- 4Ideal for evaluating incremental encoders (symmetrical or asymmetrical).
- 5Offers short-circuit protection for enhanced reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 140.5 mm |
Depth | 71.5 mm | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
Transmission physics | Copper | ID code (dec.) | 191 |
ID code (hex) | BF | Length code (hex) | 02 |
Length code (dec) | 02 | Process data channel | 32 bit |
Input address area | 4 Byte | Output address area | 4 Byte |
Register length | 4 Byte | Required parameter data | 6 Byte |
Required configuration data | 5 Byte | Number of inputs | 3 |
Input voltage | 24 V DC | Input voltage range "0" signal | -30 V DC ... 5 V DC |
Input voltage range "1" signal | 13 V DC ... 30 V DC | Connection method | Inline connector |
Connection technology | 3-conductor | Number of inputs | 1 |
Input frequency (5 V) | 0 kHz ... 500 kHz (symmetrical) | Input frequency (24 V) | 0 Hz ... 50 kHz (asymmetrical) |
Encoder signals | symmetrical encoders according to EIA-422 and asymmetrical encoders | Number of inputs | 3 |
Number of outputs | 4 | Output voltage | 24 V DC |
Protective circuit | electronic short-circuit / overload protection | Product type | I/O component |
Product family | Inline | Type | modular |
Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min
7.5 V supply (bus logic)/functional ground of the encoder supply 500 V AC 50 Hz 1 min
24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min
24 V supply (I/O)/functional ground of the encoder supply 500 V AC 50 Hz 1 min
Functional ground of the encoder supply/functional ground 500 V AC 50 Hz 1 min | Drawing encoder supply voltage | Main circuit U |
Encoder supply voltage | 5 V DC (sym./asym.)
24 V DC (Only asymmetrical encoders) | Encoder supply current | 500 mA
500 mA |
I/O voltage | 24 V DC | I/O voltage range | 19.2 V DC ... 30 V DC |
Residual ripple | ± 1.2 V | Max. current consumption | 110 mA |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 110 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 1 A | Supply voltage | 24 V DC (via voltage jumper) |
Current draw | max. 2 A | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 55 °C |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (DIN EN 61131-2) |
Permissible humidity (storage/transport) | 10 % ... 95 % (DIN EN 61131-2) | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
