Product Model

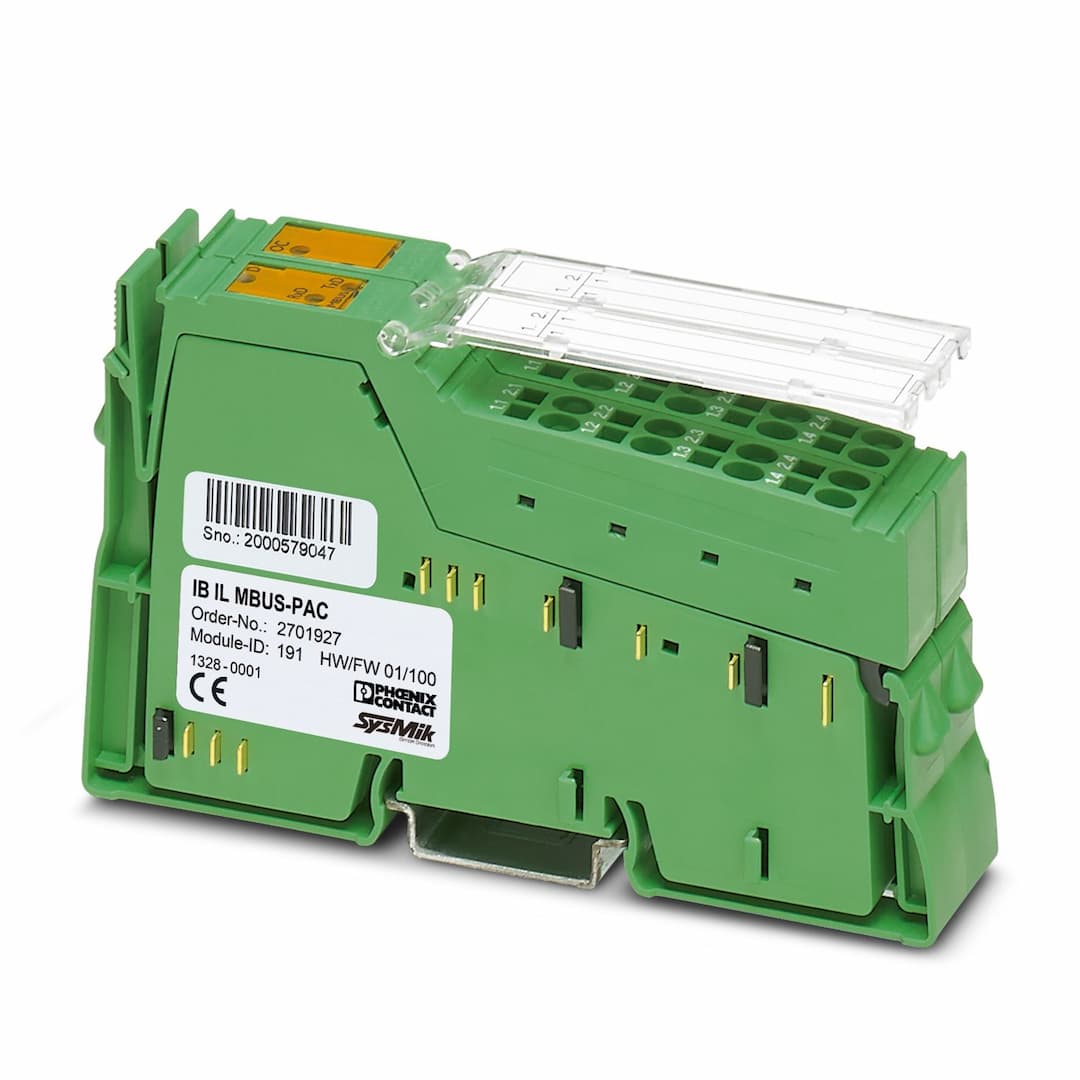

IB IL MBUS-PAC
Selling Points
- 1Connects up to 30 M-Bus devices.
- 2Adjustable transmission speed from 300 baud to 19,200 baud.
- 3Parameterization via process data for easy configuration.
- 4Diagnostic and status indicators for real-time monitoring.
- 5Compact design with dimensions of 24.4 mm x 119.8 mm x 71.5 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 24.4 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Note on application | Only for industrial use | Number of interfaces | 2 |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
Connection method | Inline connector | Transmission speed | 300 Baud ... 19200 Baud (configurable) |
Transmission physics | Copper | ID code (dec.) | 191 |
ID code (hex) | BF | Length code (hex) | 10 |
Length code (dec) | 16 | Process data channel | 256 bit |
Input address area | 32 Byte | Output address area | 32 Byte |
Register length | 256 bit | Product type | I/O component |
Product family | Inline | Type | modular |
Scope of delivery | including Inline connectors and marking fields | Operating mode | Process data mode with 16 words |
Special properties | for the connection of M-Bus devices | Article revision | 03 |
Overvoltage category | II (IEC 60664-1, EN 60664-1) | Pollution degree | 2 (IEC 60664-1, EN 60664-1) |
Power dissipation | max. 1.6 W | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 90 mA
typ. 65 mA | Power consumption | max. 675 mW
typ. 488 mW |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 160 mA
typ. 56 mA (for 10 unit loads; see example calculation)
typ. 26 mA (without connected unit loads) | Test voltage: M-Bus / 7.5 V supply (bus logic) | 500 V AC, 50 Hz, 1 min |
Test voltage: M-Bus / 24 V supply U | 500 V AC, 50 Hz, 1 min | Test voltage: M-Bus/functional ground | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (U | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
