Product Model

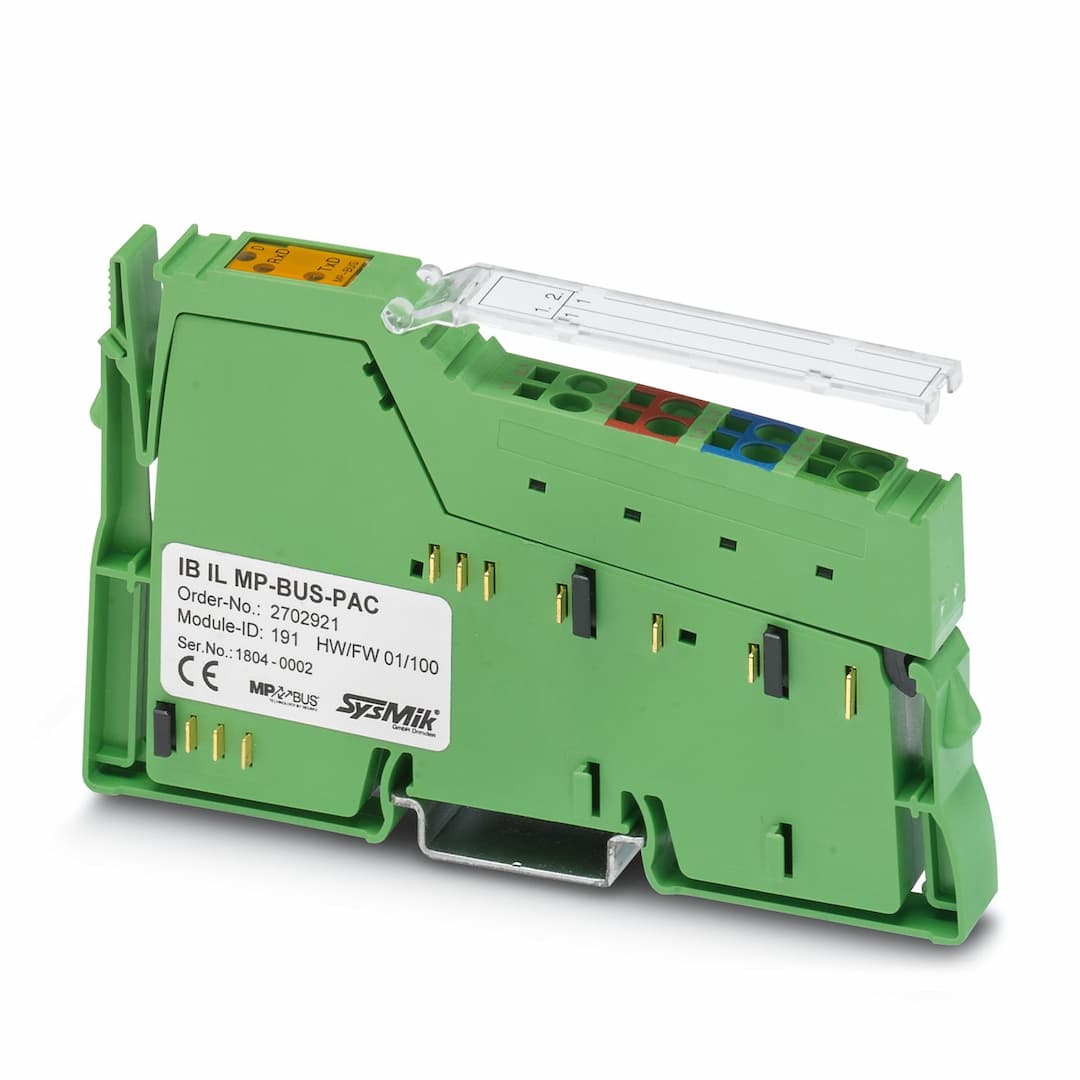

IB IL MP-BUS-PAC
Selling Points
- 1The IB IL MP-BUS-PAC minimizes wiring needs by integrating multiple devices on a single bus.
- 2Supports transmission speeds of up to 500 kbps for efficient data exchange.
- 3Offers IP20 protection, ensuring reliable operation in various environments.
- 4Compatible with solid and flexible conductors, accommodating different wiring configurations.
- 5Shares a standard installation cable for bus and supply cables, simplifying setup processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Note on application | Only for industrial use | Number of interfaces | 2 |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
Connection method | Inline connector | Note on the connection method | Signal connection: 2-wire, 3-wire with supply voltage |
ID code (dec.) | 191 | ID code (hex) | BF |
Length code (hex) | 08 | Length code (dec) | 8 |
Process data channel | 128 bit | Input address area | 16 Byte |
Output address area | 16 Byte | Register length | 128 bit |
Product type | I/O component | Product family | Inline |
Type | modular | Scope of delivery | including Inline connector and labeling field |
Operating mode | Process data mode with 8 words | Special properties | for the connection of MP-Bus devices |
Overvoltage category | II (IEC 60664-1, EN 60664-1) | Pollution degree | 2 (IEC 60664-1, EN 60664-1) |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 90 mA
typ. 70 mA |
Power consumption | max. 675 mW
typ. 525 mW | Supply voltage | 24 V DC (via voltage jumper) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 20 mA
typ. 8 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 8 A | Test voltage: I/O (U | 500 V AC, 50 Hz, 1 min |
Test voltage: I/O (U | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
