Product Model

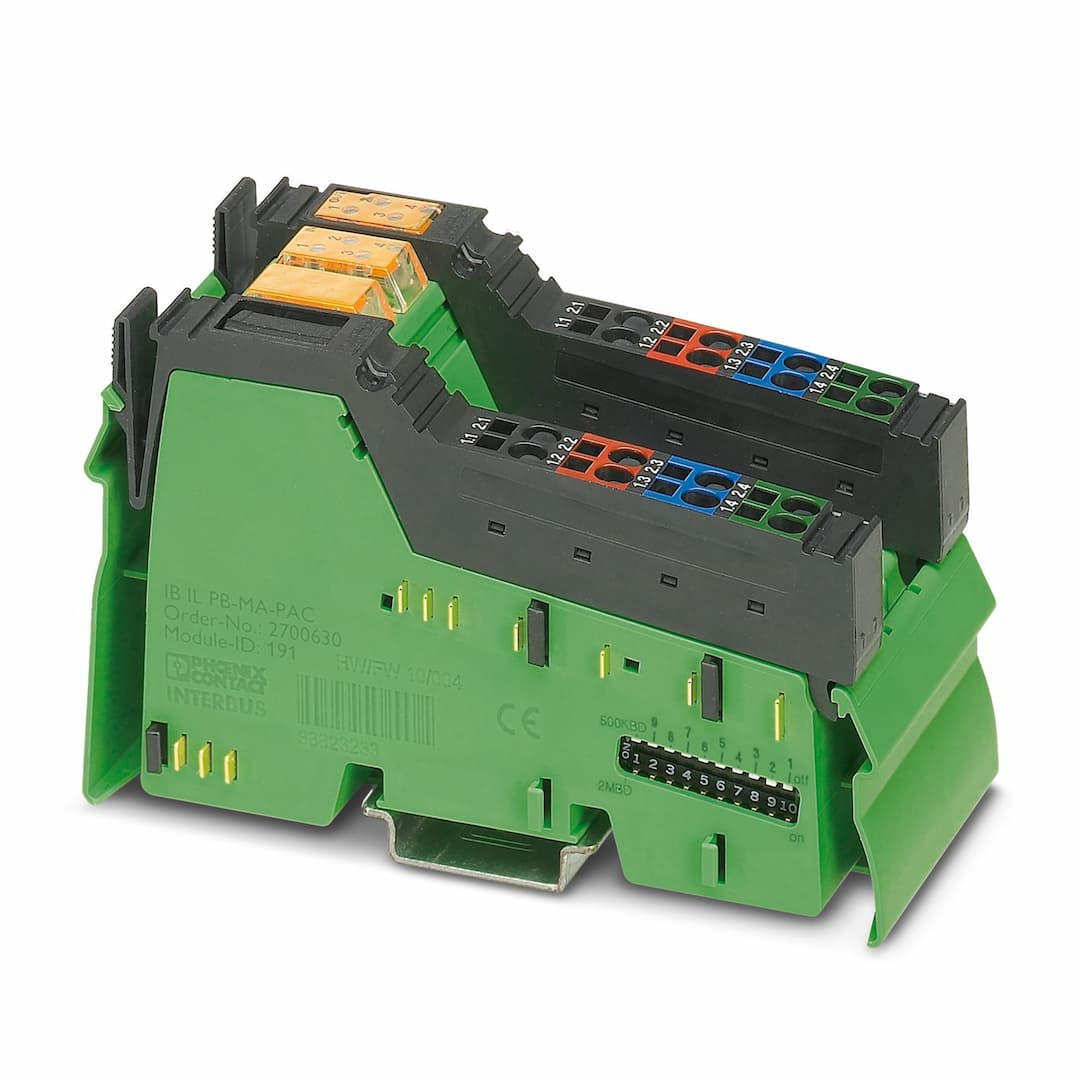

IB IL PB MA-PAC
Selling Points
- 1Integrated PROFIBUS DP V0 Master/Slave Functionality: Seamlessly operate as a master or slave in PROFIBUS systems.
- 2High-Speed Transmission: Supports transmission speeds of 500 kbps to 2 Mbps for efficient data transfer.
- 3Versatile Connectivity: Equipped with a 9-pos. D-SUB socket for easy connection to various devices.
- 4Compact Design: Measures 48.8 mm x 119.8 mm x 71.5 mm, perfect for DIN rail mounting.
- 5Robust Build: Designed with an IP20 protection class and suitable for ambient temperatures ranging from -25°C to 55°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
Connection method | Bus base module | Transmission speed | 500 kbps / 2 Mbps |
Connection method | 9-pos. D-SUB socket | Transmission speed | 9.6 kbps ... 12 Mbps |
No. of channels | 1 | ID code (dec.) | 221 |
ID code (hex) | DD | Length code (hex) | 0C |
Length code (dec) | 12 | Process data channel | 24 Byte |
Input address area | 24 Byte (Default) | Output address area | 24 Byte (Default) |
Register length | 32 Byte | Product type | I/O component |
Product family | Inline | Type | modular |
Article revision | 09 | Maximum power dissipation for nominal condition | 2.1 W |
Power dissipation | Module | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 280 mA
typ. 98 mA | Connection name | PROFIBUS DP |
Connection method | 9-pos. D-SUB socket | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
