Product Model

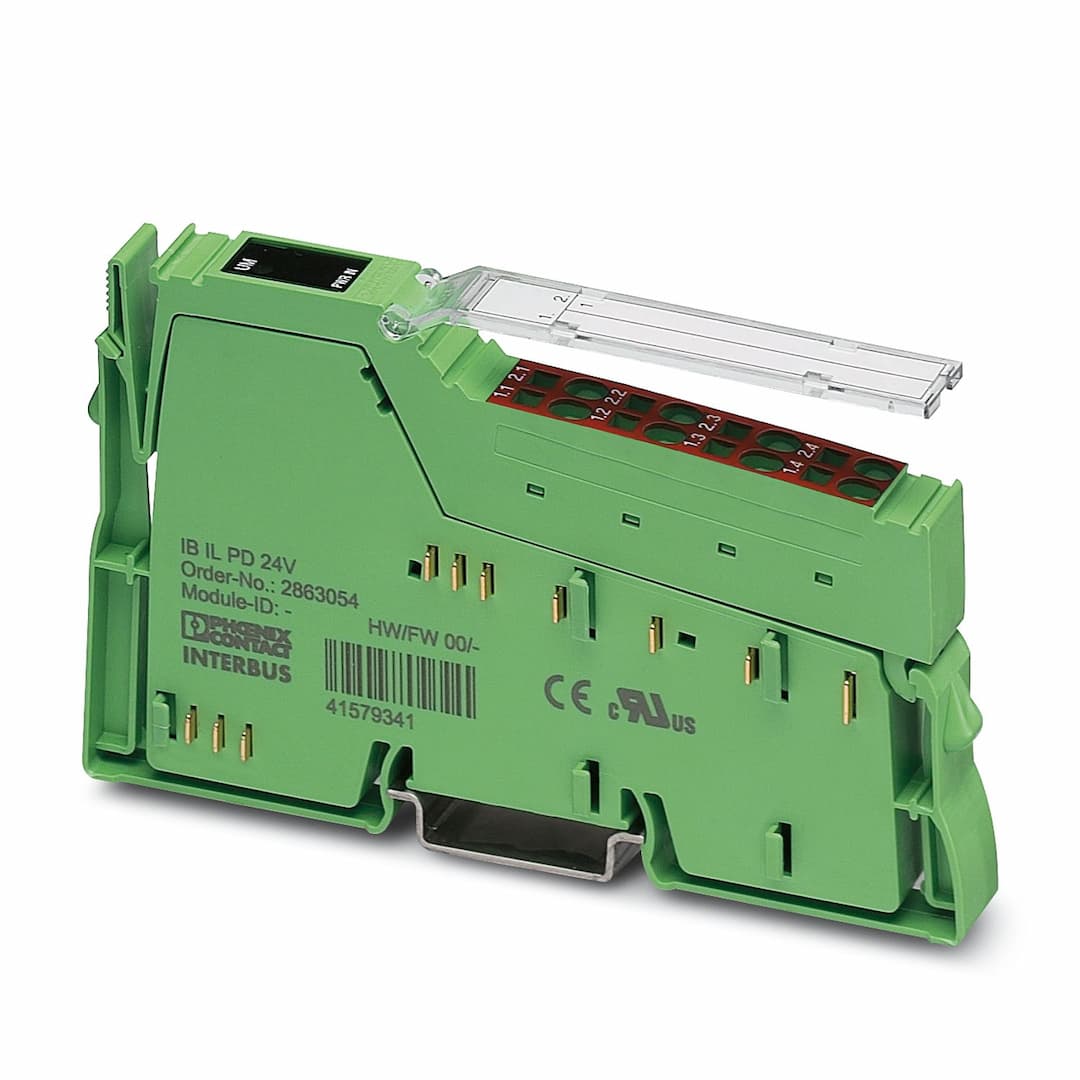

IB IL PD 24V
Selling Points
- 1The IB IL PD 24V terminal ensures reliable 24V supply voltage from the segment circuit (US) for sensors.
- 2Supports up to 8A current consumption and operates within a 19.2V to 30V DC voltage range.
- 3Measures 12.2mm in width, 119.8mm in height, and 71.5mm in depth, making it perfect for Inline stations.
- 4Includes a labeling field and insert strip for easy identification and customization.
- 5Meets EMC Class A standards and is compliant with China RoHS regulations, ensuring environmentally friendly use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Color | green |
Connection method | Inline data jumper | Transmission speed | 500 kbps / 2 Mbps |
Connection method | Inline potential distributor | ID code (dec.) | none |
ID code (hex) | none | Register length | 0 bit |
Product type | I/O component | Product family | Inline |
Type | modular | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Test section | 24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min | I/O voltage | 24 V DC |
I/O voltage range | 19.2 V DC ... 30 V DC | Max. current consumption | 8 A |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 8 A | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 55 °C |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75 % ... 85 % |
Permissible humidity (storage/transport) | 75 % ... 85 % | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
