Phoenix Contact IB IL PD GND-PAC Terminal Block - 8 GND Connections

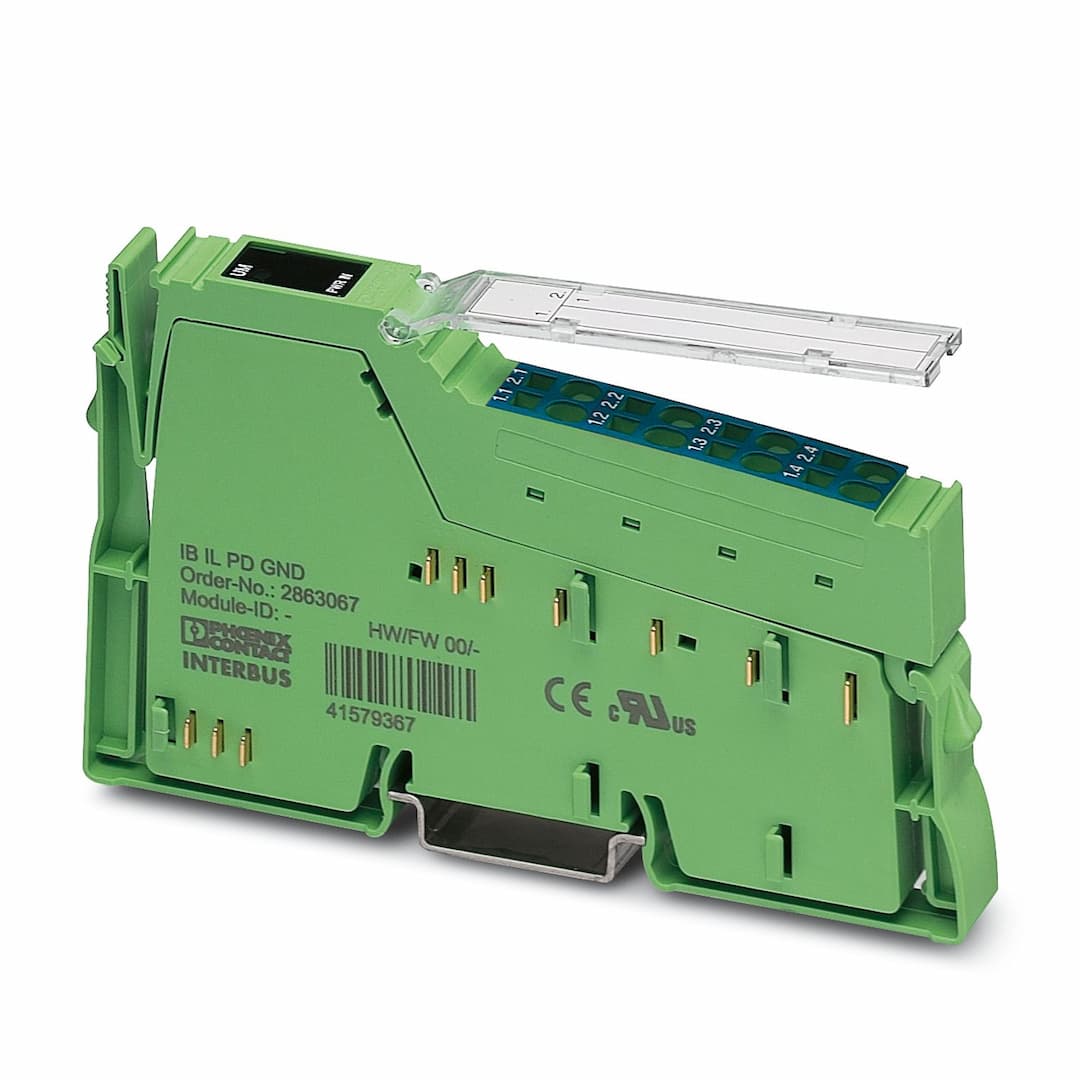

Phoenix Contact IB IL PD GND-PAC

Selling Points

1Connects station-internal GND of actuators with 1-wire technology.
2Dimensions: 12.2 mm width, 119.8 mm height, 71.5 mm depth.
3Designed for Inline station power distribution with accessories.
4Class A product with manufacturer's declaration available.
5Max current consumption 8 A, weight 44 g, suitable for various industrial applications.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Width	12.2 mm	Height	119.8 mm
Depth	71.5 mm	Note on application	Only for industrial use
Connection method	Inline data jumper	Transmission speed	500 kbps / 2 Mbps
ID code (dec.)	none	ID code (hex)	none
Register length	0 bit	Required parameter data	0 Byte
Required configuration data	0 Byte	Product type	I/O component
Product family	Inline	Type	modular
Article revision	04	Protection class	III (IEC 61140, EN 61140, VDE 0140-1)
Maximum power dissipation for nominal condition	0 W	Test section	24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min
I/O voltage	GND	Max. current consumption	8 A
Connection name	Inline connector	Connection method	Spring-cage connection
Conductor cross section rigid	0.08 mm² ... 1.5 mm²	Conductor cross section flexible	0.08 mm² ... 1.5 mm²
Conductor cross section AWG	28 ... 16	Stripping length	8 mm
Connection method	Spring-cage connection	Conductor cross section, rigid	0.08 mm² ... 1.5 mm²
Conductor cross section, flexible	0.08 mm² ... 1.5 mm²	Conductor cross section AWG	28 ... 16
Stripping length	8 mm	Degree of protection	IP20
Ambient temperature (operation)	-25 °C ... 55 °C	Ambient temperature (storage/transport)	-25 °C ... 85 °C
Permissible humidity (operation)	75 % ... 85 %	Permissible humidity (storage/transport)	75 % ... 85 %
Mounting type	DIN rail mounting
