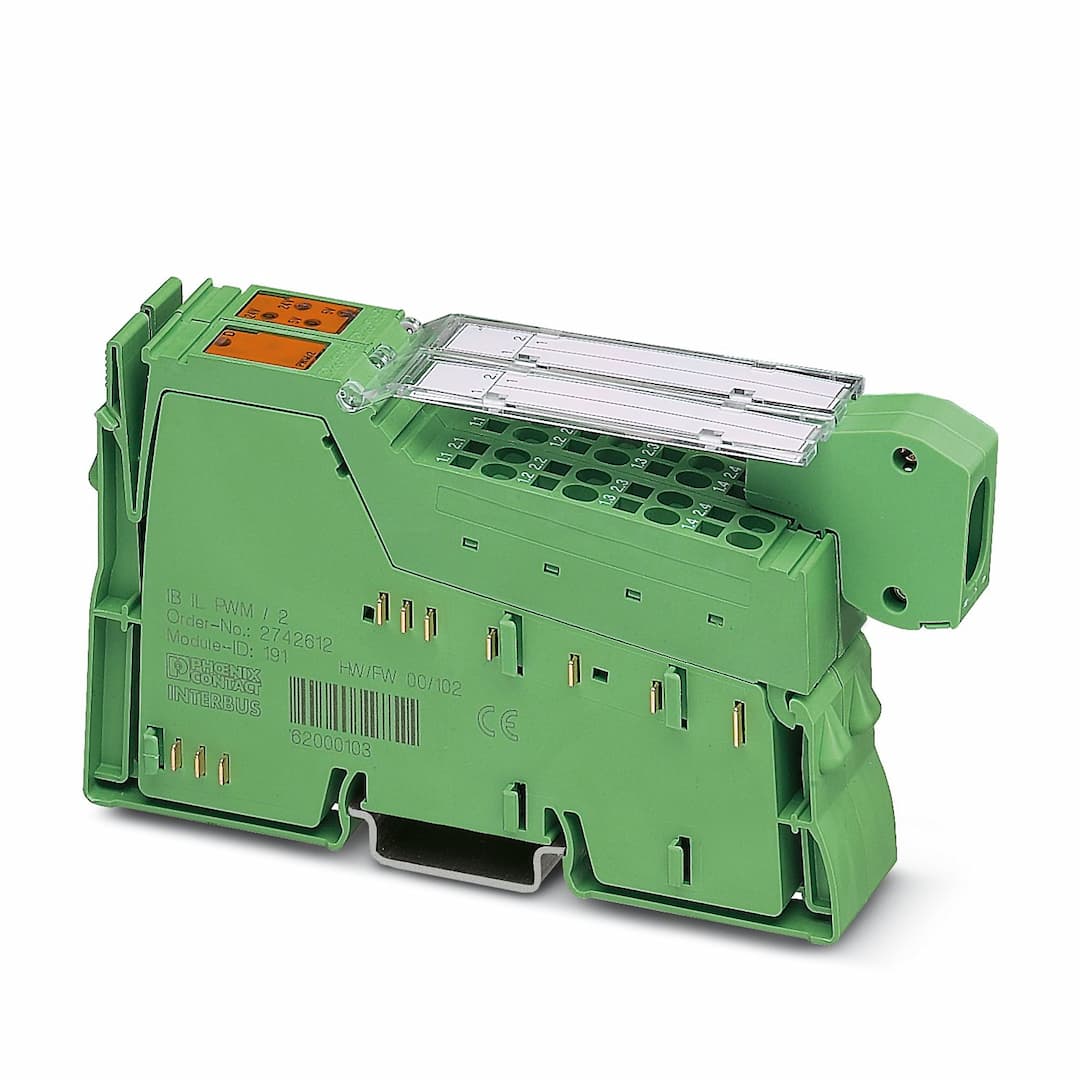

Product Model
IB IL PWM/2-PAC
Selling Points
- 1Operate two outputs independently for 5 V or 24 V signals.
- 2Set period length from 100 µs to 10 s with 0.39% duty factor increments.
- 3Output frequencies up to 50 kHz for precise signal control.
- 4Set pulse length from 10 µs to 25.5 s for customized timing.
- 5IP20 protection class ensures reliable performance in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 24.4 mm | Height | 136.8 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
Number of interfaces | 2 | Connection method | Inline data jumper |
Transmission speed | 500 kbps | ID code (dec.) | 191 |
ID code (hex) | BF | Length code (hex) | 02 |
Length code (dec) | 02 | Process data channel | 32 bit |
Input address area | 4 Byte | Output address area | 4 Byte |
Register length | 4 Byte | Required parameter data | 1 Byte |
Required configuration data | 5 Byte | Output name | Digital output: 24 V DC |
Connection technology | 2-conductor (shielded) | Number of outputs | 2 |
Protective circuit | Short-circuit protection, overload protection of the outputs; integrated damping diode for each channel | Output voltage | 24 V |
Maximum output current per module / terminal block | 1 A | Nominal output voltage | 24 V DC |
Nominal load, inductive | 12 VA (1.2 H, 24 Ω) | Nominal load, lamp | 12 W |
Nominal load, ohmic | 12 W | Maximum operating frequency with ohmic nominal load | 500 Hz |
Reverse voltage resistance to short pulses | Reverse voltage proof | Behavior with overload | Auto restart |
Behavior at voltage switch-off | The output follows the power supply without delay | Overcurrent shut-down | as of 0.7 A |
Output name | Digital output: 5 V DC | Connection technology | 2-conductor (shielded) |
Number of outputs | 2 | Protective circuit | Short-circuit protection, overload protection of the outputs; integrated damping diode for each channel |
Nominal output voltage | 5 V DC | Maximum operating frequency with ohmic nominal load | 50 kHz |
Product type | I/O component | Product family | Inline |
Type | modular | Operating mode | PWM, frequency generator, single-shot, pulse/direction signal
Process data operation with 2 words |
Diagnostics messages | Short circuit or overload of a 24 V output yes | Article revision | 07 |
Maximum power dissipation for nominal condition | 1.4 W | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 130 mA | Supply voltage | 24 V DC (via voltage jumper) |
Current draw | max. 1 A
0 A | Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logic) / 5 V supply (I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
Test voltage: 5 V supply (I/O)/functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
