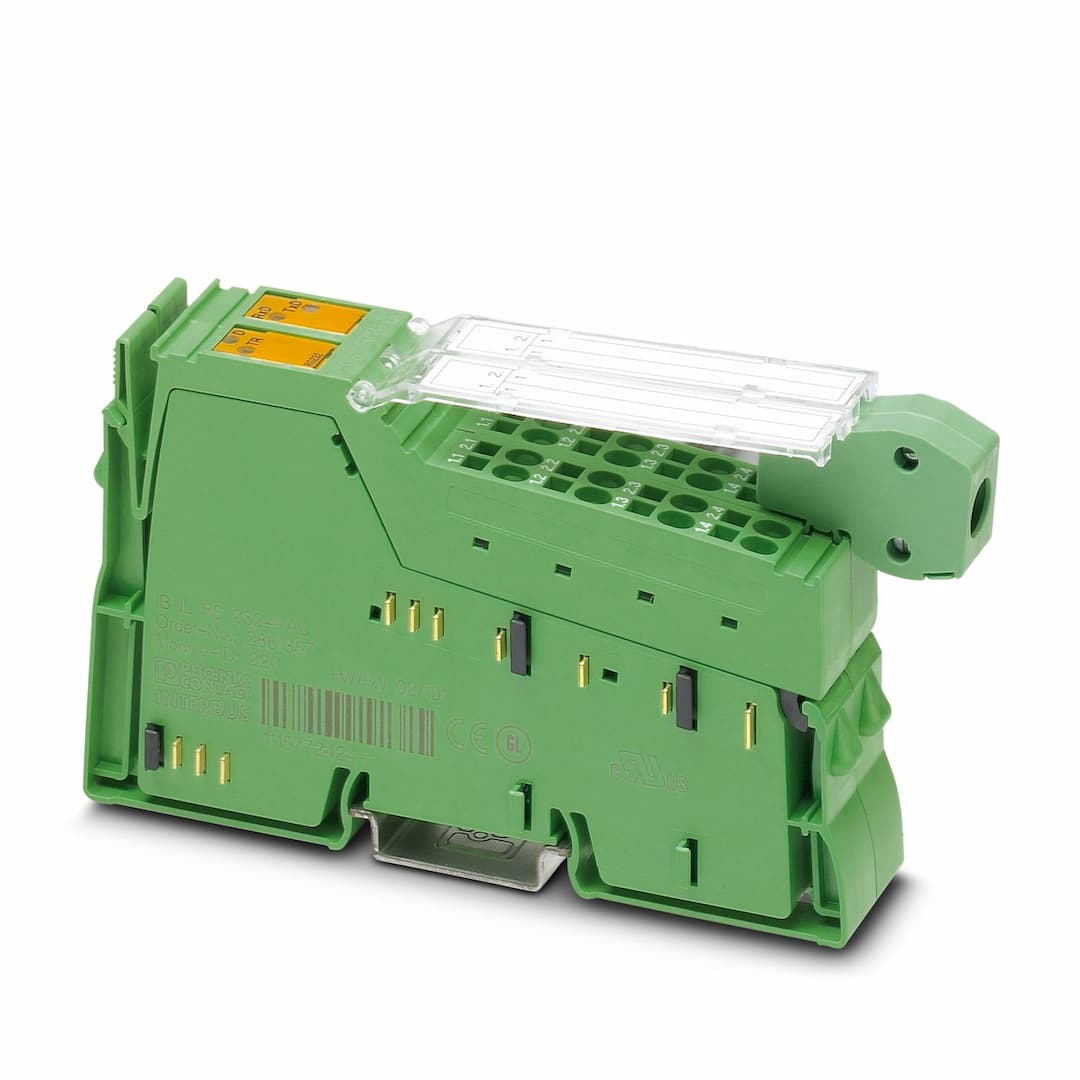

Product Model
IB IL RS 232-PRO
Selling Points
- 1Efficient Integration: Seamlessly integrate scanners, scales, and printers into existing production processes.
- 2Customizable Transmission: Set transmission speeds up to 38400 baud for optimal data transfer.
- 3Diagnostic Indicators: Monitor performance with diagnostic and status indicators for real-time feedback.
- 4Robust Connectivity: Ensure reliable communication with 1 serial input and output channel in RS-232 design.
- 5Durable Design: Operate within a wide temperature range (-25 °C to 55 °C) and humidity levels (10% to 95%).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 24.4 mm | Height | 119.8 mm |
Depth | 71.5 mm | Color | green |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
Connection method | Spring-cage connection | Transmission speed | 110 bps ... 38400 bps (configurable) |
Data bits | 7 or 8 | Stop bits | 1 or 2 |
Input buffer | 4 kByte | Output buffer | 1 kByte |
ID code (dec.) | 191 | ID code (hex) | BF |
Length code (hex) | 06 | Length code (dec) | 06 |
Process data channel | 96 bit | Input address area | 12 Byte |
Output address area | 12 Byte | Register length | 96 bit |
Required parameter data | 14 Byte | Product type | I/O component |
Product family | Inline | Type | modular |
Number of plugs | 2 | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Communications power U | 7.5 V DC (via voltage jumper) | I/O voltage range | including all tolerances, including ripple |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 225 mA (all connections of the serial interface are short-circuited)
typ. 155 mA |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 55 °C | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) | Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
