Product Model

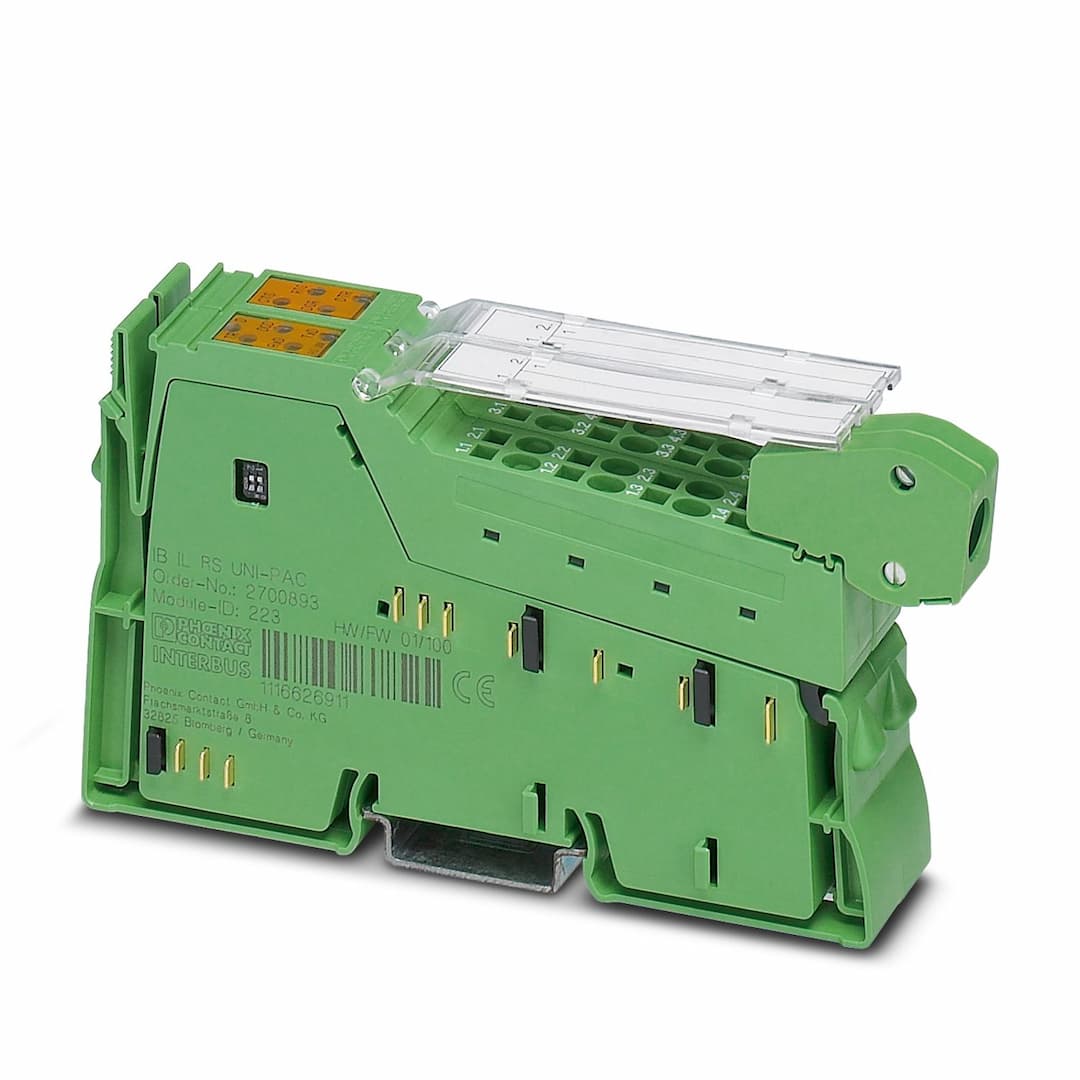

IB IL RS UNI-2MBD-PAC
Selling Points
- 1RS-232, RS-422, and RS-485 formats for versatile communication.
- 2Up to 250,000 bps for efficient data transfer.
- 3Set data bits, stop bits, and parity via process data or PCP.
- 4Process data width can be set via DIP switches (7, 15, or 31 words).
- 5Includes diagnostic and status indicators for easy monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 24.3 mm | Height | 135.4 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
Number of interfaces | 2 | Connection method | Inline data jumper |
Transmission speed | 2 Mbps | Number of interfaces | 1 (be operated simultaneously) |
Connection method | Spring-cage connection | Note on the connection method | Use shielded cables. |
Transmission speed | 110 bps ... 250000 bps (can be parameterized) | Transmission physics | Copper |
Protocols supported | Transparent, end-to-end, XON/XOFF | Termination resistor | typ. 120 Ω (active, integrated) |
Data bits | 5 ... 8 | Stop bits | 1 or 2 |
Input buffer | 4 kByte | Output buffer | 1 kByte |
ID code (dec.) | 223 | ID code (hex) | DF |
Length code (hex) | 1F | Length code (dec) | 31 |
Process data channel | 496 bit | Input address area | max. 62 Byte |
Output address area | max. 62 Byte | Register length | 64 Byte |
Required parameter data | 23 Byte | Required configuration data | 5 Byte |
Product type | I/O component | Product family | Inline |
Type | modular | Scope of delivery | including Inline connectors and marking fields |
Overvoltage category | II (IEC 60664-1, EN 60664-1) | Pollution degree | 2 (IEC 60664-1, EN 60664-1) |
Maximum power dissipation for nominal condition | max. 1.3 W | Power consumption | max. 1.3 W (at U |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 90 mA (all connections of the serial interface are short-circuited)
typ. 78 mA |
Power consumption | typ. 585 mW | Supply voltage | 24 V DC (via voltage jumper) |
Current draw | max. 25 mA
typ. 15 mA | Test voltage: Serial interface/7.5 V supply (bus logic) | 500 V AC, 50 Hz, 1 min |
Test voltage: Serial interface/24 V supply U | 500 V AC, 50 Hz, 1 min | Test voltage: Serial interface/functional ground | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (U | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
