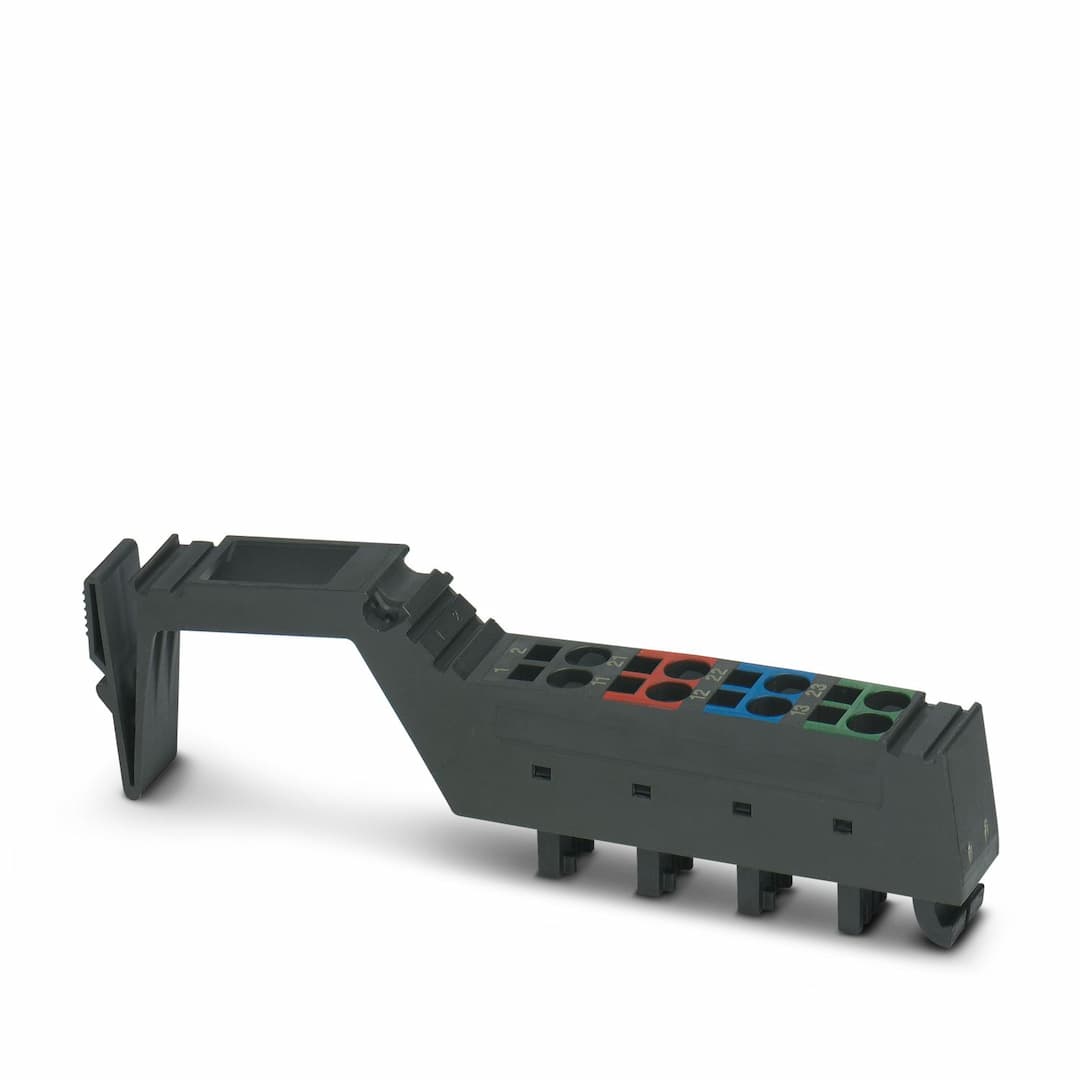

Product Model
IB IL SCN-PWR IN-CP/N
Selling Points
- 1Colored Connector for Inline Power and Segment Terminal Blocks
- 2Robust Conductor Cross Section: 0.08 mm² to 1.5 mm²
- 3Flexible and Rigid Conductor Options Available
- 4Durable Spring-Cage Connection for Reliable Performance
- 5Compliant with EU RoHS and EAC Regulations
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Plug | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Width | 12 mm |
Height | 111.2 mm | Depth | 41 mm |
Specifications may be subject to change without notice
