Product Model

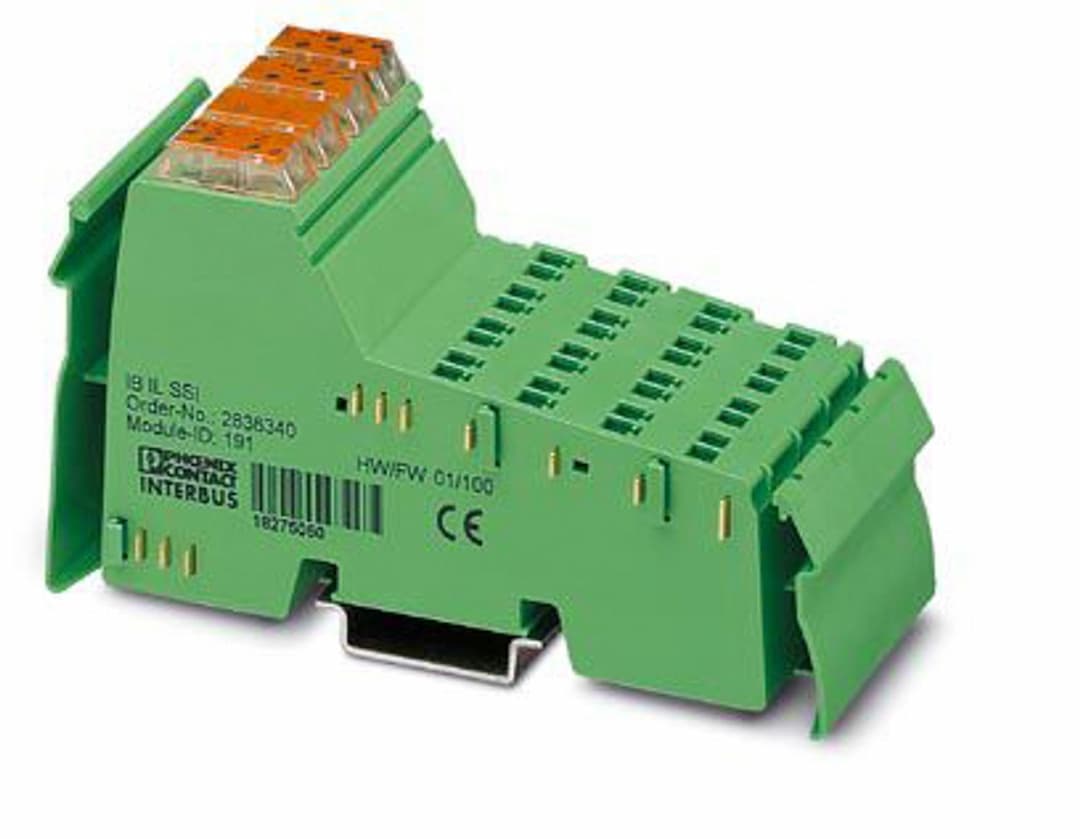

IB IL SSI-2MBD
Selling Points
- 1High-Reliability Design: Built for robust industrial use with a durable construction.
- 224V DC Operation: Compatible with a wide range of industrial systems.
- 3Low Current Consumption: Max. 85mA, reducing power costs and heat generation.
- 4Versatile Connectivity: Supports 3-conductor connections for easy integration.
- 5Compact Dimensions: Ideal for space-constrained industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 119.8 mm |
Depth | 71.5 mm | Color | green |
Connection method | Inline data jumper | Transmission speed | 2 Mbps |
Transmission physics | Copper | ID code (hex) | 191 |
Register length | 32 bit | Required parameter data | 6 Byte |
Number of inputs | 1 | Adjustable resolution | 26 bit (maximum) |
Transmission frequency | 400 kHz | Number of inputs | 4 |
Input voltage | 24 V DC | Input voltage range "0" signal | -30 V DC ... 5 V DC |
Input voltage range "1" signal | 13 V DC ... 30 V DC | Connection technology | 3-conductor |
Number of outputs | 4 | Product type | I/O component |
Product family | Inline | Type | modular |
Drawing encoder supply voltage | Main circuit U | Encoder supply voltage | 5 V DC
24 V DC |
Encoder supply current | 500 mA
500 mA | Communications power U | 7.5 V DC (via voltage jumper) |
I/O voltage | 24 V DC (via voltage jumper) | I/O voltage range | 19.2 V DC ... 30 V DC |
Residual ripple | ± 1.2 V | Max. current consumption | 85 mA |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 85 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 1 A | Supply voltage | 24 V DC (via voltage jumper) |
Current draw | max. 2 A | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Degree of protection | IP20 | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
