Product Model

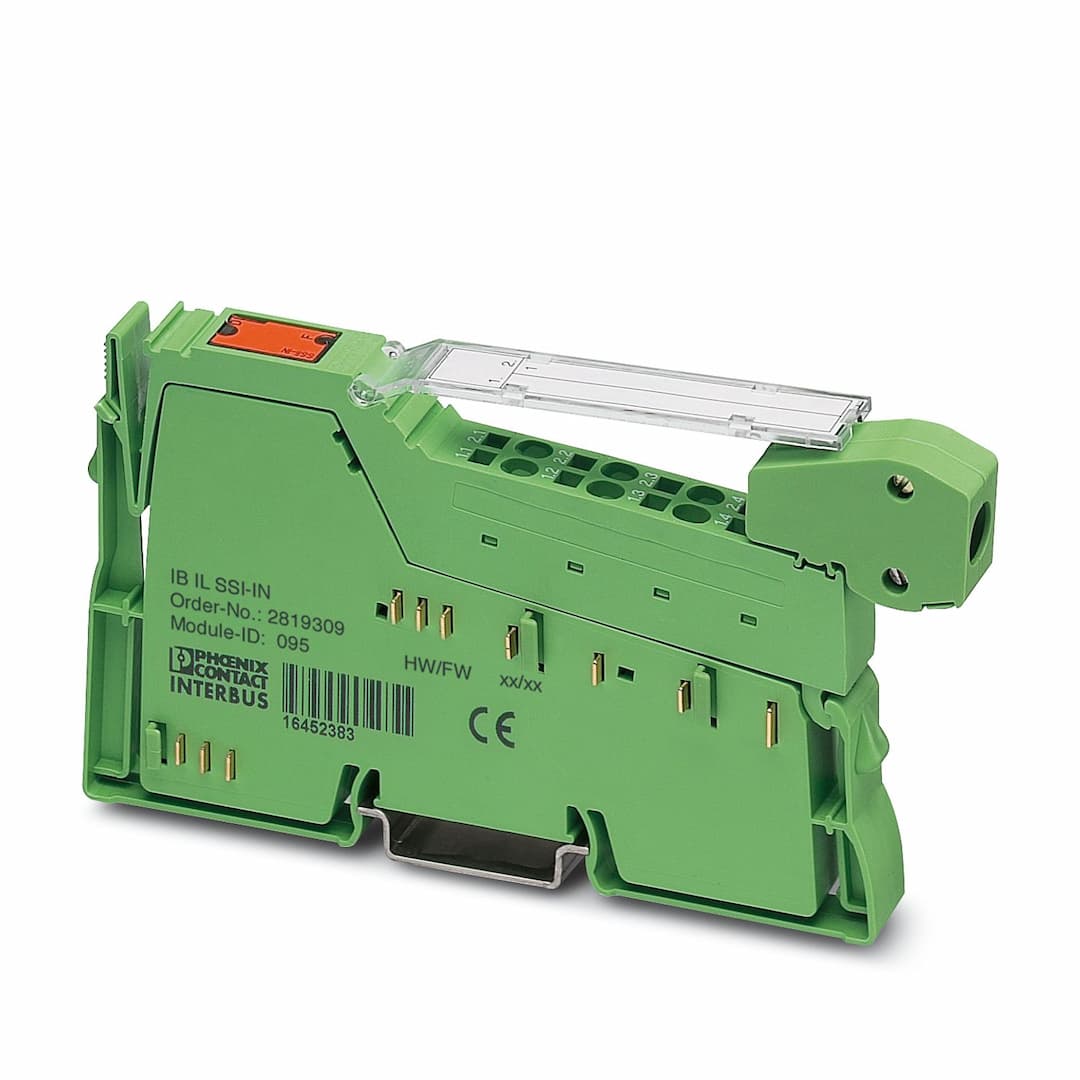

IB IL SSI-IN-PAC
Selling Points
- 1High-resolution encoding: Supports up to 25-bit resolution for precise position measurement.
- 2Robust error-checking: Independently verifies parity to ensure accurate data processing.
- 3Versatile interface: Compatible with single-turn, multi-turn, and length measurement systems.
- 4Easy configuration: Utilizes two process data words for simplified integration into existing systems.
- 5Reliable performance: Designed for sophisticated industrial applications requiring precise motion control and position monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 135 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
CCCex note | Use in potentially explosive areas is not permitted in China. | Connection method | Inline data jumper |
Transmission speed | 500 kbps | Transmission physics | Copper |
ID code (dec.) | 95 | ID code (hex) | 5F |
Length code (hex) | 02 | Length code (dec) | 02 |
Process data channel | 32 bit | Input address area | 4 Byte |
Output address area | 4 Byte | Register length | 4 Byte |
Required parameter data | 6 Byte | Required configuration data | 5 Byte |
Number of inputs | 1 | Adjustable resolution | 25 bit (maximum) |
Transmission frequency | 100 kHz
200 kHz
400 kHz
800 kHz
1 MHz | Connection technology | Spring-cage connection |
Number of outputs | 1 | Product type | I/O component |
Product family | Inline | Type | modular |
Article revision | 09 | Maximum power dissipation for nominal condition | 0.55 W |
Drawing encoder supply voltage | Main circuit U | Encoder supply voltage | 5 V DC |
Encoder supply current | max. 250 mA | I/O voltage | 24 V AC |
Max. current consumption | 35 mA (typical) | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 28 mA | Supply voltage | 24 V DC (via voltage jumper) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 66 mA |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 55 °C | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 75 % ... 85 % | Permissible humidity (storage/transport) | 75 % ... 85 % |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
