Product Model

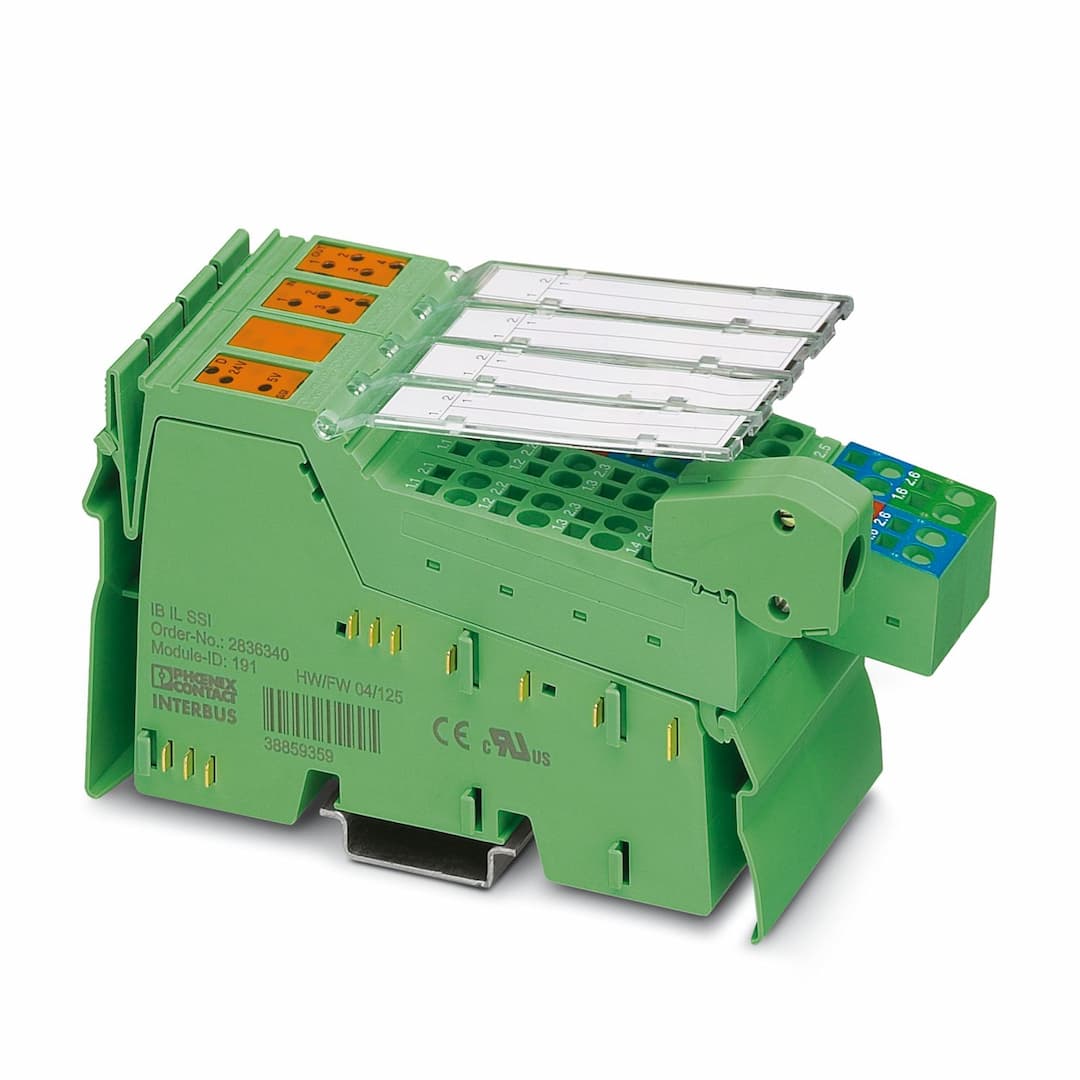

IB IL SSI-PAC
Selling Points
- 1Integrated Monitoring Functions: Real-time monitoring of encoder and sensor supplies.
- 2Adjustable Encoder Offset: Customize encoder settings for precise positioning control.
- 3High Encoder Resolution: Up to 26-bit resolution for accurate position detection.
- 4Robust Power Supply: 5 V and 24 V DC supply with 500 mA current capacity.
- 5Versatile Connectivity: 3-wire connection method and inline local bus interface.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 140.5 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
Transmission physics | Copper | Transmission length | 116.1 mm |
ID code (dec.) | 191 | ID code (hex) | BF |
Length code (hex) | 02 | Length code (dec) | 02 |
Process data channel | 32 bit | Input address area | 4 Byte |
Output address area | 4 Byte | Register length | 4 Byte |
Required parameter data | 6 Byte | Required configuration data | 5 Byte |
Number of inputs | 1 | Adjustable resolution | 26 bit (maximum) |
Transmission frequency | 400 kHz | Number of inputs | 3 |
Input voltage | 24 V DC | Input voltage range "0" signal | -30 V DC ... 5 V DC |
Input voltage range "1" signal | 13 V DC ... 30 V DC | Connection method | Inline connector |
Connection technology | 3-conductor | Number of outputs | 4 |
Output voltage | 24 V DC | Protective circuit | electronic short-circuit / overload protection |
Product type | I/O component | Product family | Inline |
Type | modular | Number of plugs | 1 |
Article revision | 05 | Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min
7.5 V supply (bus logic)/functional ground of the encoder supply 500 V AC 50 Hz 1 min
24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min
24 V supply (I/O)/functional ground of the encoder supply 500 V AC 50 Hz 1 min
Functional ground of the encoder supply/functional ground 500 V AC 50 Hz 1 min |
Drawing encoder supply voltage | Main circuit U | Encoder supply voltage | 5 V DC
24 V DC |
Encoder supply current | 500 mA
500 mA | I/O voltage | 24 V DC |
I/O voltage range | 19.2 V DC ... 30 V DC | Residual ripple | ± 1.2 V |
Max. current consumption | 60 mA | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 60 mA | Supply voltage | 24 V DC (via voltage jumper) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 1 A |
Supply voltage | 24 V DC (via voltage jumper) | Current draw | max. 2 A |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 55 °C | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (DIN EN 61131-2) | Permissible humidity (storage/transport) | 10 % ... 95 % (DIN EN 61131-2) |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
