Product Model

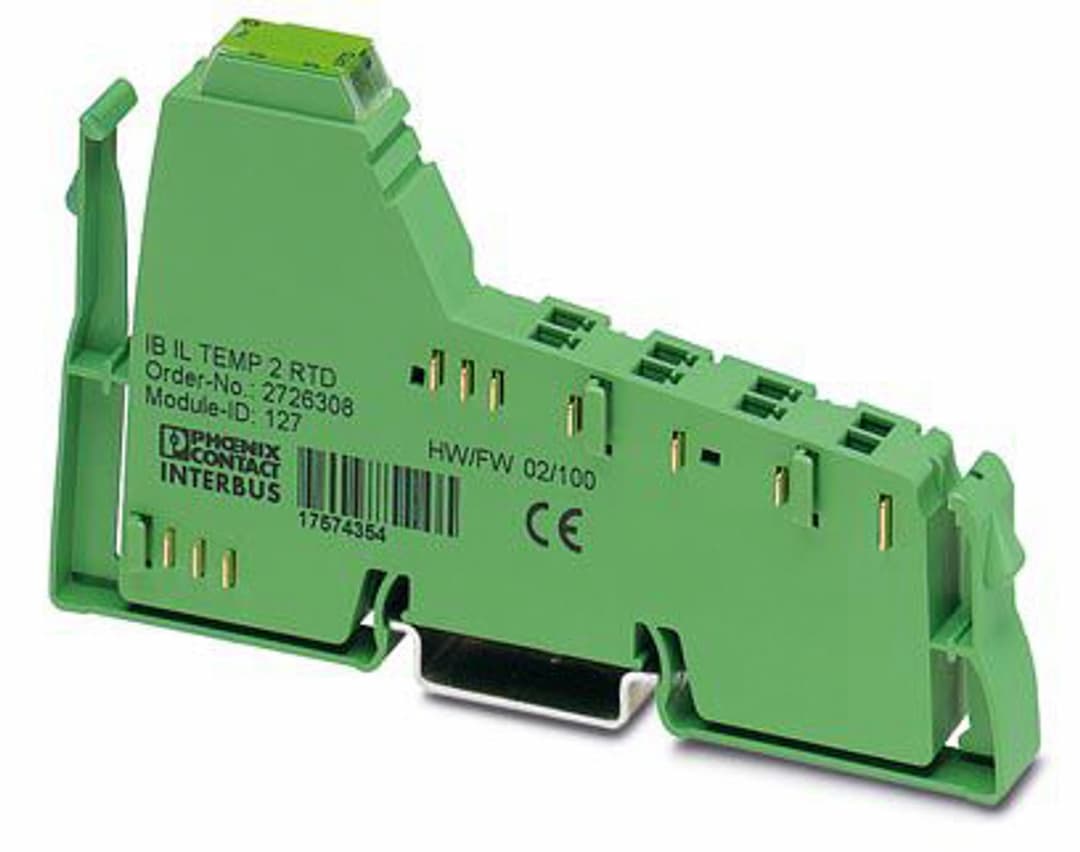

IB IL TEMP 2 RTD
Selling Points
- 1High-Resolution Measurement: Measures temperature with 16-bit resolution for precise readings.
- 2Versatile Sensor Support: Compatible with Pt, Ni, KTY, and Cu sensors according to DIN EN 60751 and SAMA.
- 3Fast A/D Conversion: A/D conversion time of 120 µs per channel for quick data acquisition.
- 4Durable Construction: Designed for operation in a wide range of ambient temperatures (-25 °C to 55 °C) and humidity levels.
- 5Easy Installation: Mounts easily on DIN rail with spring-cage connection technology for secure sensor connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular
Inline | ID code (dec.) | 127 |
ID code (hex) | 2F | Length code (hex) | 02 |
Length code (dec) | 02 | Process data channel | 32 bit |
Input address area | 4 Byte | Output address area | 4 Byte |
Register length | 32 bit | Required parameter data | 6 Byte |
Power consumption | typ. 587 mW
max. 882 mW | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 60 mA
typ. 43 mA | Supply voltage | 24 V DC (via voltage jumper) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 18 mA
typ. 11 mA |
Test voltage: 7.5 V supply (bus logics)/24 V analog supply (analog I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min |
Test voltage: 24 V analog supply (analog I/O)/functional ground | 500 V AC, 50 Hz, 1 min | Input name | Analog RTD inputs |
Number of inputs | 2 (typ. ±0.50 °C) | Connection method | Spring-cage connection |
Connection technology | 2, 3-conductor | A/D conversion time | typ. 120 µs (per channel) |
A/D converter resolution | 16 bit (15 bit + sign bit) | Sensor types (RTD) that can be used | Pt, Ni, Cu, KTY, linear resistors |
Measuring principle | Successive approximation | Measured value representation | 16 bits two's complement and other |
Linear resistance measuring range | 0 Ω ... 400 Ω
0 Ω ... 4 kΩ | Process data update | 30 ms |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
Transmission physics | Copper | Width | 12.2 mm |
Height | 119.8 mm | Depth | 71.5 mm |
Color | green | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) | Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
