Product Model

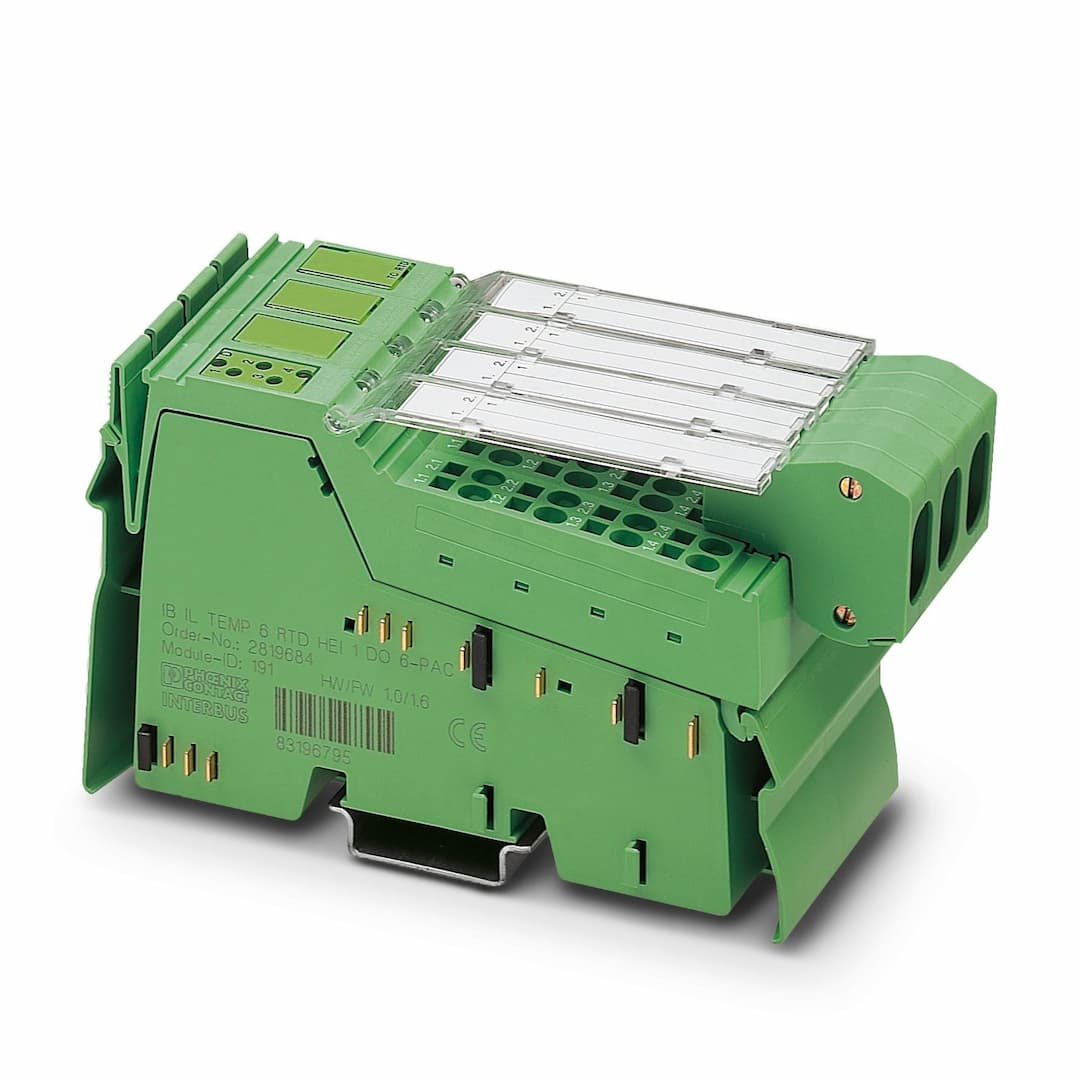

IB IL TEMP 6 RTD HEI 1 DO 6-PAC
Selling Points
- 1Features 6 RTD inputs for precise temperature measurement.
- 2Modular construction allows for easy integration and customization.
- 3Includes 6 digital outputs with 24 V DC and 70 mA short-circuit-proof current.
- 4Built with IP20 protection and suitable for ambient temperatures from 0°C to 55°C.
- 5Supports spring-cage connections and 3-conductor shielded technology.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 136.8 mm |
Depth | 71.5 mm | Color | green |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
Transmission physics | Copper | ID code (dec.) | 191 |
ID code (hex) | BF | Length code (hex) | 02 |
Length code (dec) | 02 | Process data channel | 32 bit |
Input address area | 4 Byte | Output address area | 4 Byte |
Register length | 64 bit | Required parameter data | 1 Byte |
Required configuration data | 5 Byte | Input name | Analog RTD inputs |
Number of inputs | 6 | Connection method | Spring-cage connection |
Connection technology | 3-conductor (shielded) | A/D conversion time | max. 175 ms |
Sensor types (RTD) that can be used | Pt 100 | Output name | Digital outputs |
Number of outputs | 6 | Output voltage | 24 V DC |
Output current | 70 mA (short-circuit-proof) | Product type | I/O component |
Type | modular
Inline | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 150 mA
typ. 90 mA | Supply voltage | 24 V DC (via voltage jumper) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 30 mA
typ. 20 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC |
Current draw | max. 500 mA | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Ambient temperature (operation) | 0 °C ... 55 °C | Degree of protection | IP20 |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 75% average, 85% seldom |
Permissible humidity (storage/transport) | 75% average, 85% seldom | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
