Product Model

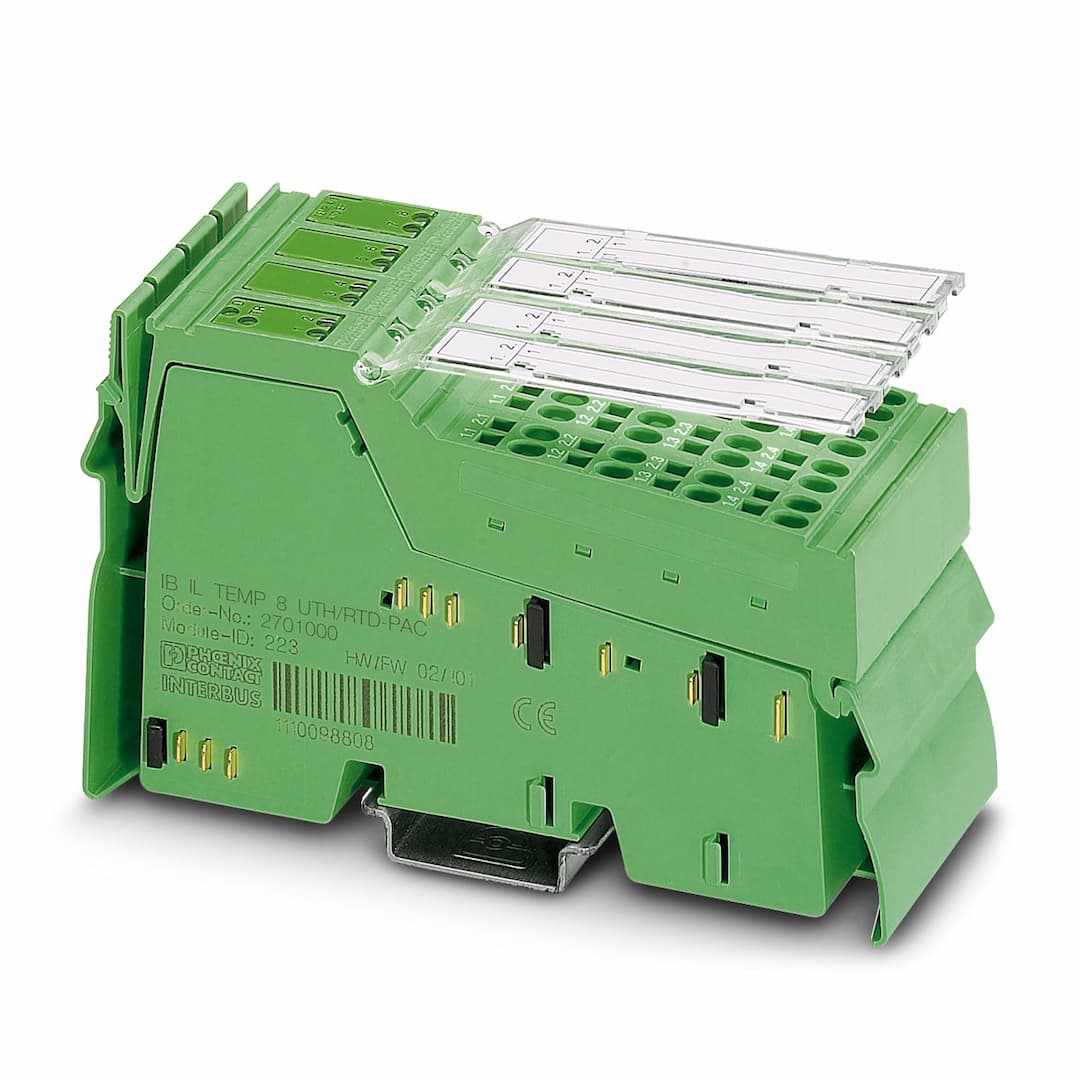

IB IL TEMP 8 UTH/RTD-PAC
Selling Points
- 18 Temperature Sensor Inputs: Measure up to 8 temperature sensors simultaneously.
- 2High Precision & Noise Immunity: Ensure accurate temperature readings with high-resolution measurement.
- 3Configurable Cold Junction Detection: Internally and externally detect cold junction temperature for precise compensation.
- 4Fast Scan Time & Suppression: Scan all channels in 20 ms with up to 50 Hz/60 Hz suppression.
- 5Diagnostic & Status Indicators: Monitor channel status with diagnostic indicators for easy troubleshooting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
Transmission physics | Copper | ID code (dec.) | 220 |
ID code (hex) | DC | Length code (hex) | 0A |
Length code (dec) | 10 | Process data channel | 160 bit |
Input address area | 20 Byte | Output address area | 20 Byte |
Register length | 192 bit | Required parameter data | 25 Byte |
Required configuration data | 5 Byte | Input name | Analog RTD inputs |
Description of the input | Temperature sensor inputs | Number of inputs | 8 |
Connection method | Spring-cage connection | Connection technology | 2-, 3-conductor |
A/D converter resolution | 16 bit | Sensor types (RTD) that can be used | Pt, Ni sensors, linear resistors |
Sensor types that can be used (TC) | B, C, E, J, K, L, N, R, S, T, U, mV input | Data formats | IB IL, S7-compatible |
Measuring principle | Successive approximation | Measured value representation | 16 bits (15 bits + sign bit) |
Process data update | 20 ms (with filter time of 20 ms or 100 ms)
100 ms (with filter time of 400 ms or 1600 ms) | Product type | I/O component |
Product family | Inline | Type | modular |
Scope of delivery | including Inline connectors and marking fields | Operating mode | Process data mode with 10 words, PCP with 2 words |
Article revision | 02 | Overvoltage category | II (IEC 60664-1, EN 60664-1) |
Pollution degree | 2 (IEC 60664-1, EN 60664-1) | Maximum power dissipation for nominal condition | 1.46 W |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 100 mA
typ. 90 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | typ. 24 mA | Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 60 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
