Product Model

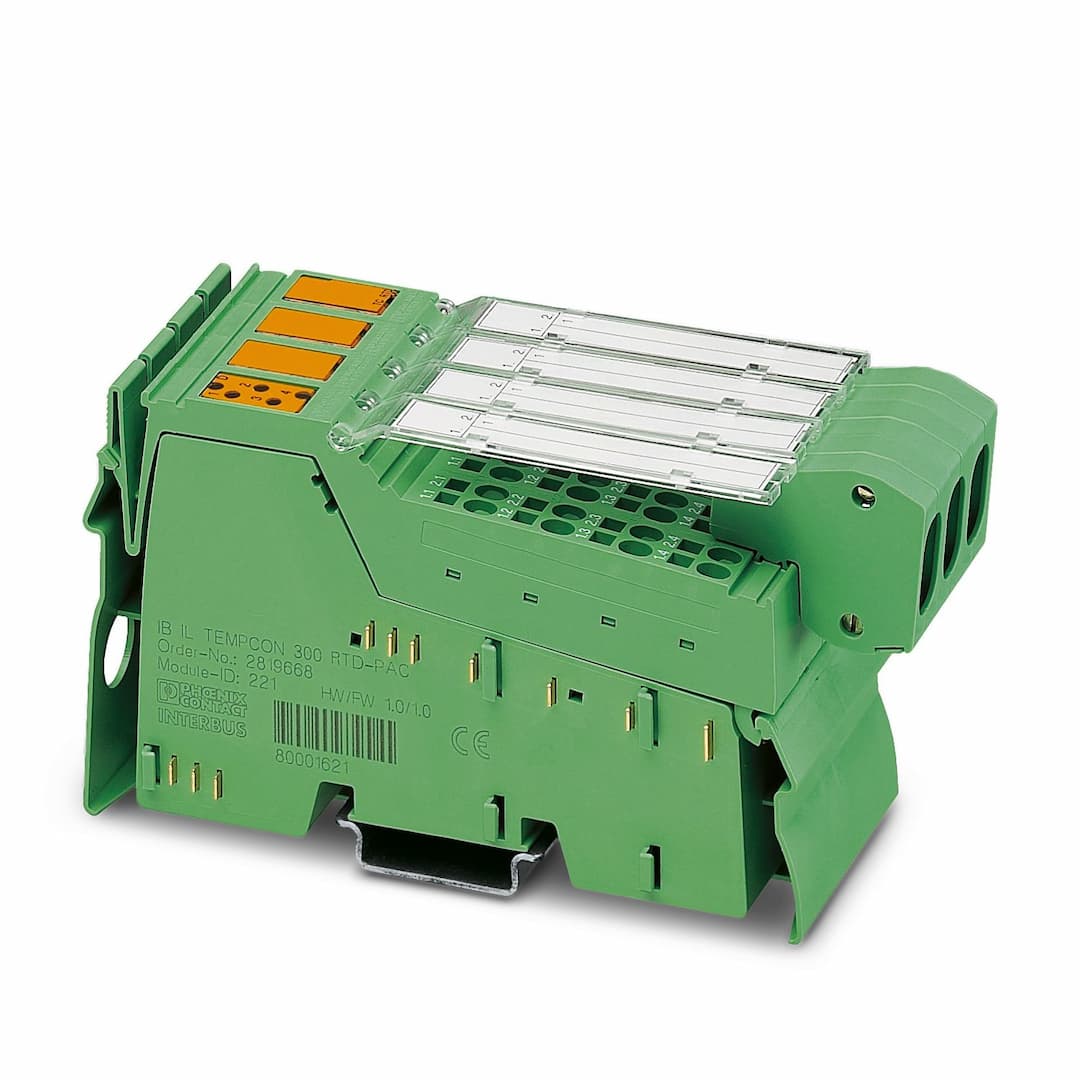

IB IL TEMPCON 300 RTD-2MBD-PAC
Selling Points
- 1Freely parameterizable slave for the Inline installation system.
- 2Expandable to 30 closed-loop control circuits using additional temperature measurement terminals.
- 3Supports 6 resistance thermometer inputs and 6 binary outputs.
- 4Transmission speed of 500 kbps for efficient data transfer.
- 5Compatible with DIN and SAMA directives for platinum and nickel sensors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 136.8 mm |
Depth | 71.5 mm | Connection method | Inline data jumper |
Transmission speed | 2 Mbps | ID code (dec.) | 221 |
ID code (hex) | DD | Length code (hex) | 06 |
Length code (dec) | 06 | Process data channel | 32 bit |
Input address area | 4 Byte | Output address area | 4 Byte |
Register length | 96 bit | Required parameter data | 1 Byte |
Required configuration data | 5 Byte | Product type | I/O component |
Product family | Inline | Type | modular |
No. of channels | 6 | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Degree of protection | IP20 | Mounting type | DIN rail mounting |
