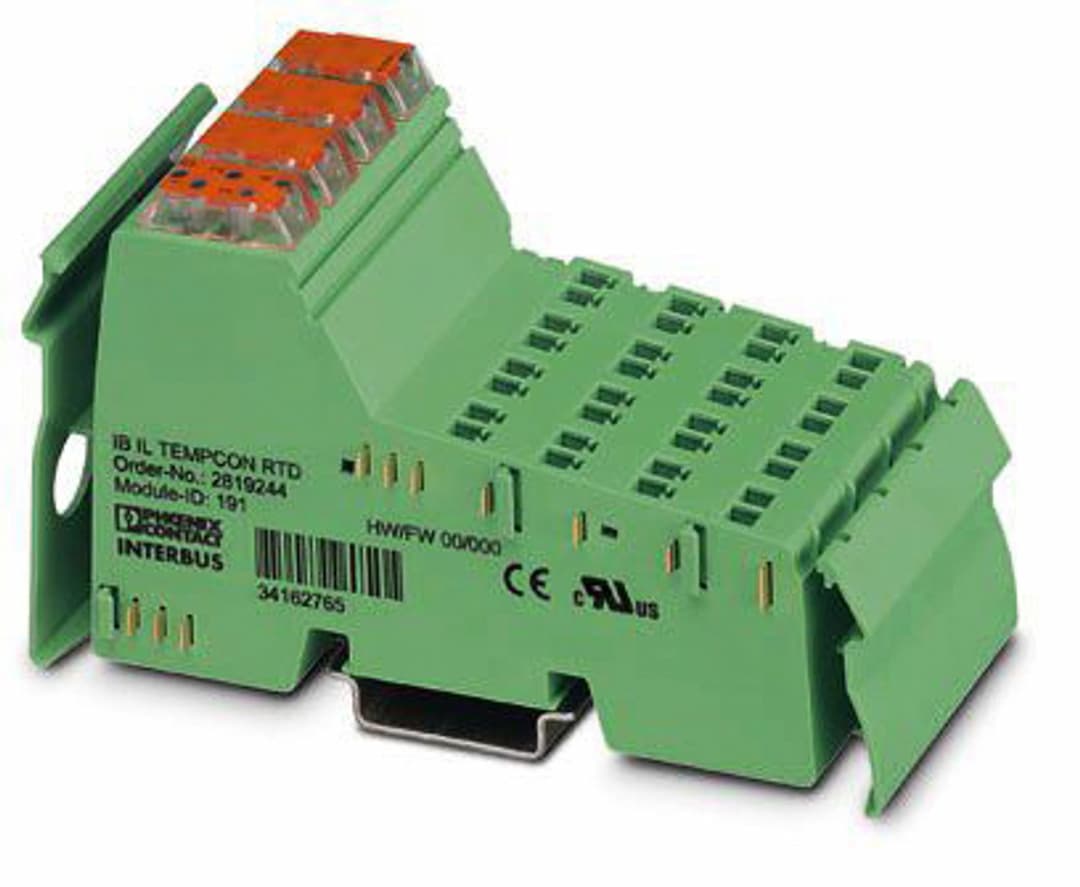

Product Model
IB IL TEMPCON RTD
Selling Points
- 16 Inputs for Resistance Temperature Detectors: Supports platinum, nickel, and other RTD sensors.
- 26 Outputs for Precise Control: Offers robust control with 24 V DC power supply.
- 3Spring-Cage Connection: Securely connects conductors with solid or stranded sections.
- 4DIN Rail Mounting: Easy installation on DIN rail for compact and efficient setup.
- 5High Reliability and Durability: Designed for industrial use with IP20 protection and robust construction.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48.8 mm | Height | 119.8 mm |
Depth | 71.5 mm | Connection method | Inline data jumper |
Transmission speed | 500 kbps | ID code (dec.) | 191 |
ID code (hex) | BF | Length code (hex) | 02 |
Length code (dec) | 02 | Process data channel | 32 bit |
Input address area | 4 Byte | Output address area | 4 Byte |
Register length | 32 bit | Required parameter data | 1 Byte |
Output current | 70 mA | Product type | I/O component |
Product family | Inline | Type | modular |
No. of channels | 6 | Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min
24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min
Analog inputs/bus logics 500 V AC 50 Hz 1 min
Analog inputs / 24 V supply (I/O) 500 V AC 50 Hz 1 min
Analog inputs/functional ground 500 V AC 50 Hz 1 min |
Max. current consumption | 4 A | Typical current consumption | 250 mA |
Connection method | Spring-cage connection | Degree of protection | IP20 |
Mounting type | DIN rail mounting |
