Product Model

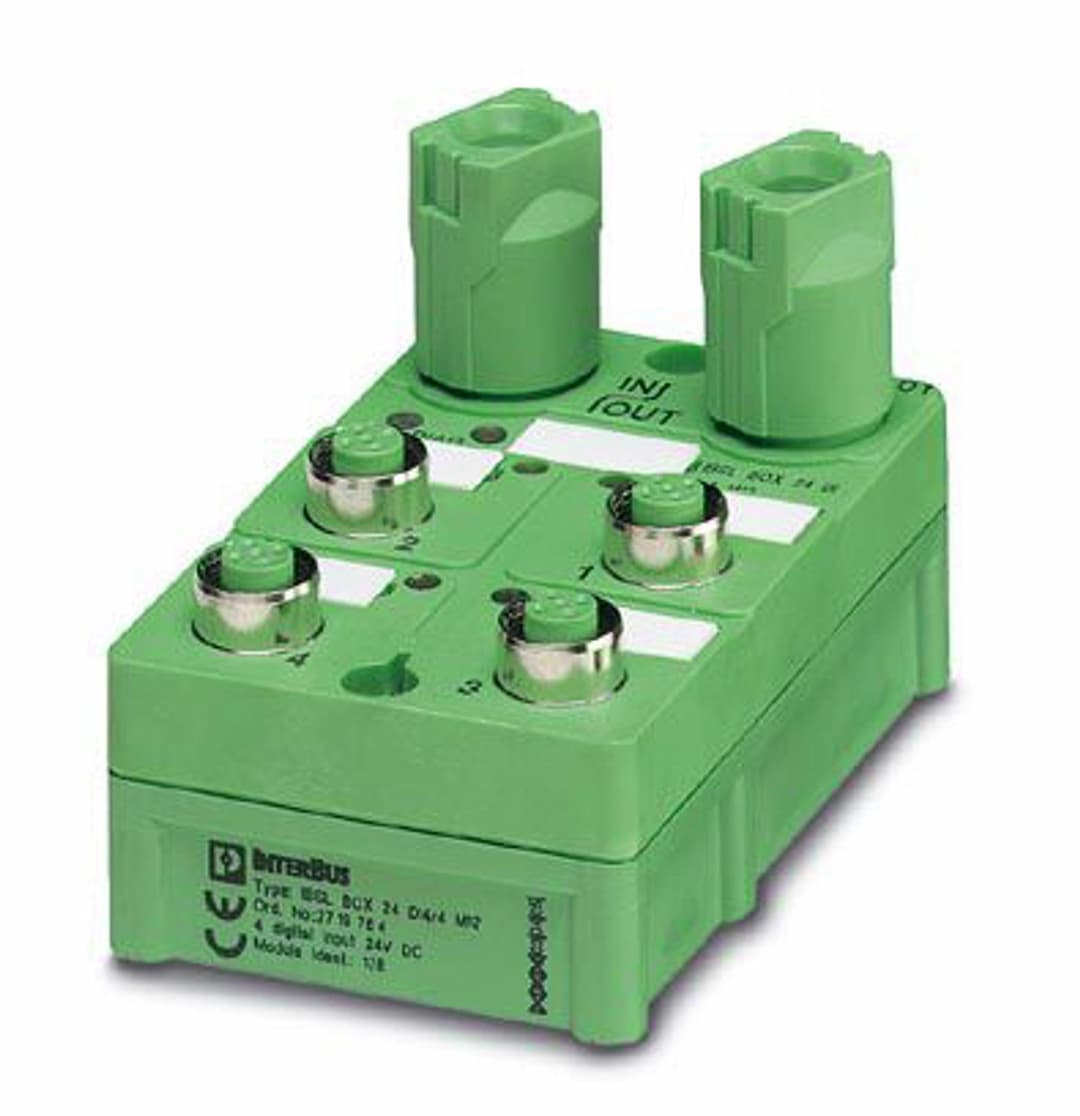

IB L2 BOX 24 DI 4/4 M12
Selling Points
- 14 digital inputs for versatile connectivity.
- 224 V DC operation for reliable performance.
- 34-conductor connection technology for efficient data transfer.
- 4IP65/IP67 degree of protection for harsh environments.
- 5Compact design for space-saving installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
I/O voltage | 24 V DC (via INTERBUS-Loop 2) | I/O voltage range | 19.2 V DC ... 30 V DC |
Residual ripple | ± 1.2 V DC | Typical current consumption | 40 mA (from INTERBUS-Loop 2) |
Number of inputs | 4 | Input voltage | 24 V DC |
Input voltage range "0" signal | 0 V ... 5 V | Input voltage range "1" signal | 13 V ... 30 V |
Connection technology | 4-conductor | Typical input current per channel | 3 mA (at 24 V DC) |
Connection method | QUICKON fast connection | Transmission physics | Copper |
Length | 60 mm | Color | green |
Specifications may be subject to change without notice
