Product Model

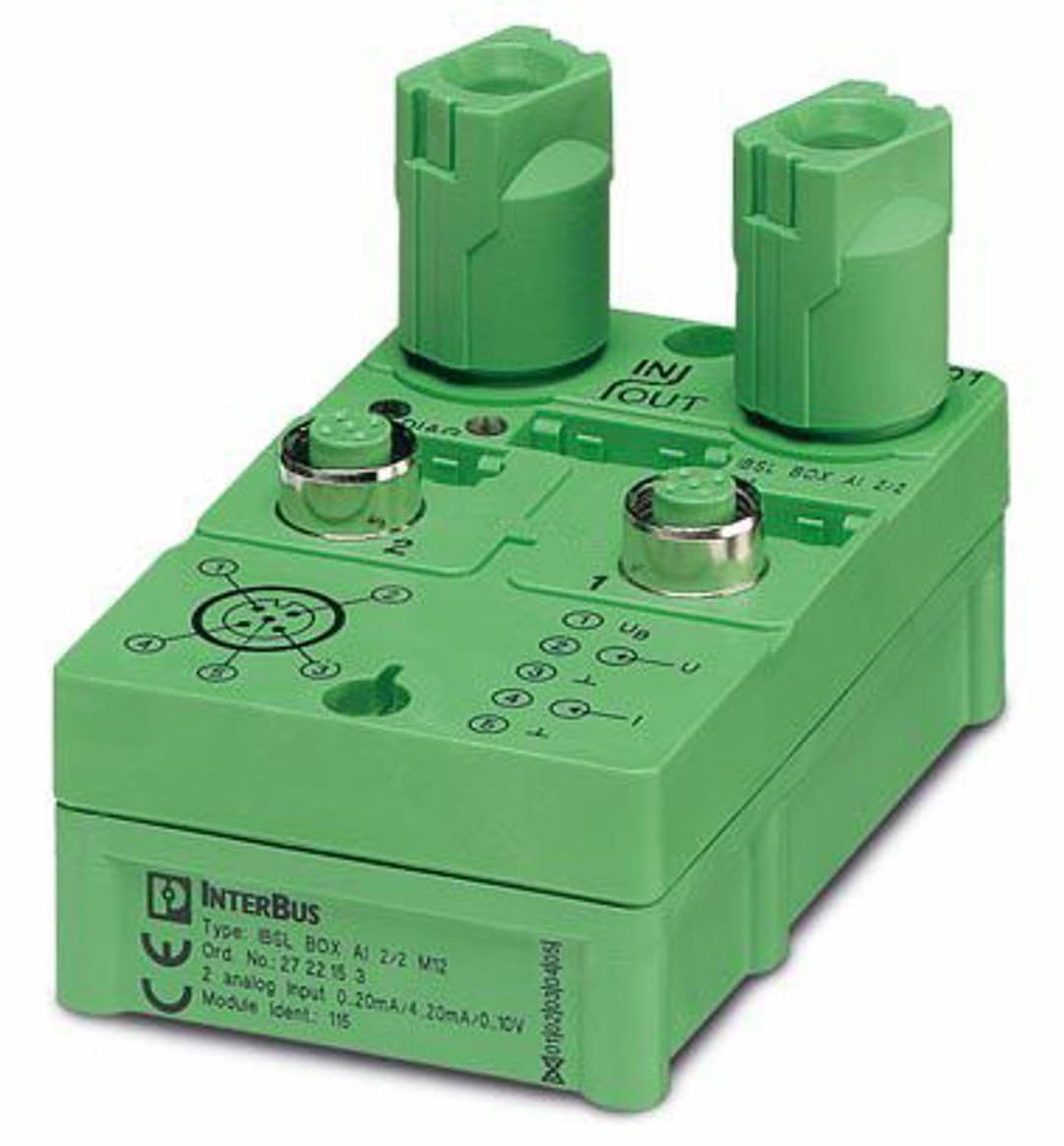

IB L2 BOX AI 2/2 M12
Selling Points
- 1Analog input module with 2 inputs (0-10V, 2-10V, 0-20mA, 4-20mA).
- 22-conductor connection technology for efficient signal transmission.
- 3IP65/IP67 degree of protection for reliable operation in various environments.
- 4Ideal for applications requiring precise analog input measurements.
- 5Compact design for easy integration into industrial control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Maximum power dissipation for nominal condition | 1.44 W | Test section | I/O voltage/functional ground 500 V AC 50 Hz 1 min |
I/O voltage | ± 24 V DC 5 % (ripple) | I/O voltage range | 19.2 V DC ... 30 V DC |
Max. current consumption | 110 mA (from INTERBUS-Loop 2) | Typical current consumption | 60 mA (from INTERBUS-Loop 2) |
Connection method | QUICKON fast connection | Transmission physics | Copper |
Width | 62 mm | Height | 60 mm |
Length | 95 mm |
Specifications may be subject to change without notice
